Information fuel-injection pump
BOSCH
9 410 610 177
9410610177
ZEXEL
106069-8031
1060698031
Rating:

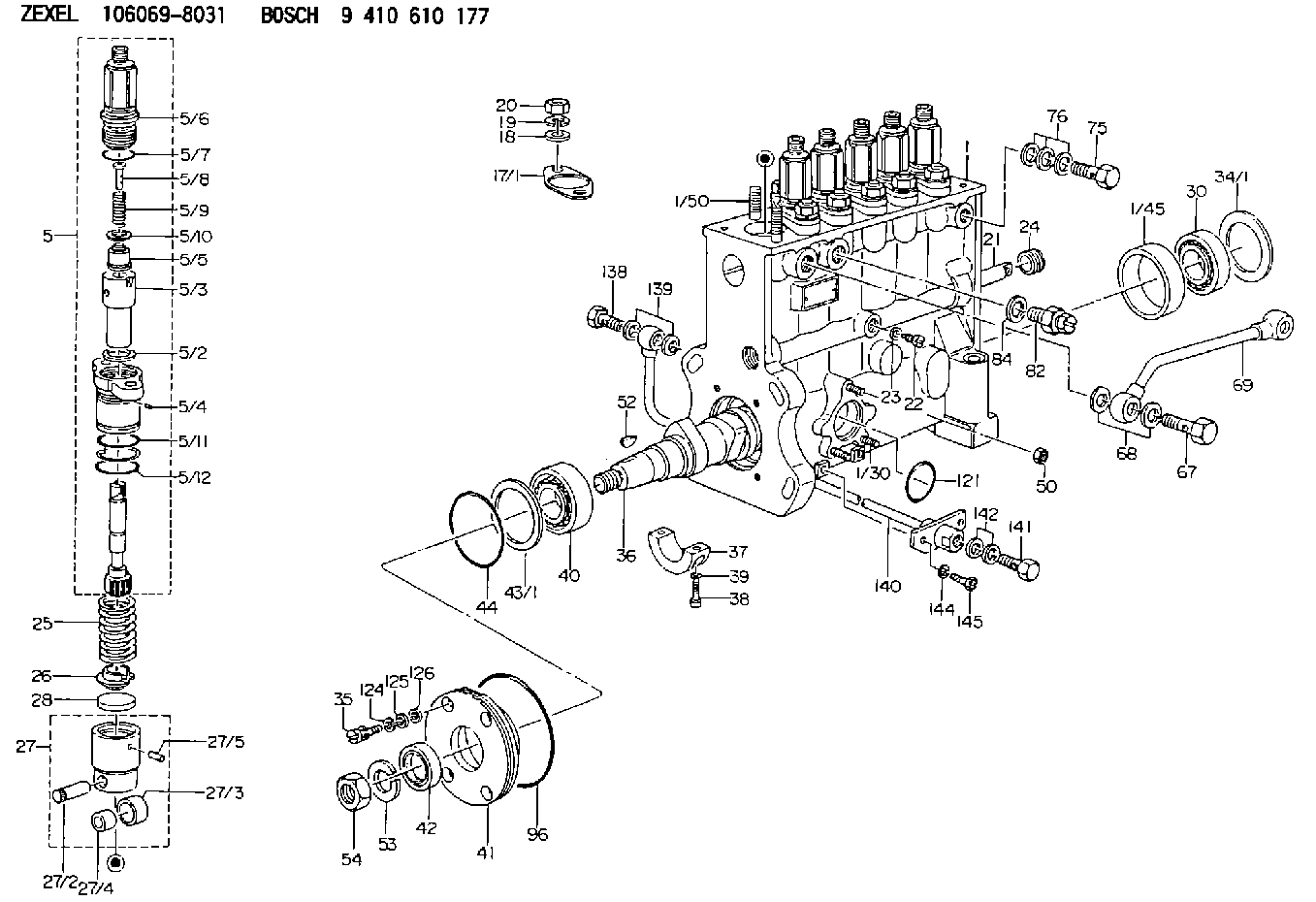

Scheme ###:
| 1. | [1] | 134000-8420 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/45. | [1] | 134311-0000 | SPACER RING |
| 1/50. | [12] | 029041-2100 | STUD |
| 5. | [6] | 134142-8920 | PLUNGER-AND-BARREL ASSY |
| 5/2. | [1] | 029331-9040 | GASKET |
| 5/3. | [1] | 134101-9320 | PLUNGER-AND-BARREL ASSY |
| 5/4. | [1] | 134563-0600 | BEARING PIN |
| 5/5. | [1] | 134110-6220 | DELIVERY-VALVE ASSEMBLY |
| 5/6. | [1] | 134116-3020 | FITTING |
| 5/7. | [1] | 029632-5070 | O-RING |
| 5/8. | [1] | 134117-0500 | FILLER PIECE |
| 5/9. | [1] | 134112-2000 | COILED SPRING |
| 5/10. | [1] | 134115-0100 | GASKET |
| 5/11. | [1] | 029632-9030 | O-RING |
| 5/12. | [1] | 029632-9030 | O-RING |
| 17/1. | [0] | 134139-2400 | SHIM T0.15 |
| 17/1. | [0] | 134139-2500 | SHIM T0.4 |
| 17/1. | [0] | 134139-2600 | SHIM T0.5 |
| 17/1. | [0] | 134139-2700 | SHIM T0.6 |
| 17/1. | [0] | 134139-2800 | SHIM T0.7 |
| 17/1. | [0] | 134139-2900 | SHIM T0.8 |
| 17/1. | [0] | 134139-3000 | SHIM T0.9 |
| 17/1. | [0] | 134139-3100 | SHIM T1.0 |
| 18. | [12] | 029301-2330 | PLAIN WASHER |
| 19. | [12] | 014111-2440 | LOCKING WASHER D21.5&12.2T3 |
| 20. | [12] | 013021-2140 | UNION NUT M12P1.75H10 |
| 21. | [1] | 134256-2000 | CONTROL RACK |
| 22. | [1] | 134226-0000 | FLAT-HEAD SCREW |
| 23. | [1] | 134510-3900 | GASKET |
| 24. | [1] | 134222-0100 | BUSHING |
| 25. | [6] | 134215-0100 | COMPRESSION SPRING |
| 26. | [6] | 134217-0200 | SLOTTED WASHER |
| 27. | [6] | 134200-0520 | TAPPET |
| 27/2. | [1] | 134203-0100 | BEARING PIN |
| 27/3. | [1] | 134204-0100 | ROLLER |
| 27/4. | [1] | 134205-0000 | BUSHING |
| 27/5. | [1] | 134213-0000 | BEARING PIN |
| 28. | [6] | 134140-0400 | SPRING SEAT D14T3.9 |
| 30. | [1] | 016650-2230 | BEARING PLATE |
| 34/1. | [0] | 134303-0000 | SHIM D59.8&43T1.2 |
| 34/1. | [0] | 134303-0100 | SHIM D59.8&43T1.5 |
| 34/1. | [0] | 134303-0200 | SHIM D59.8&43T1.8 |
| 34/1. | [0] | 134303-0300 | SHIM D59.8&43T2.0 |
| 34/1. | [0] | 134303-0400 | SHIM D59.8&43T0.6 |
| 35. | [4] | 029050-6360 | FLAT-HEAD SCREW |
| 36. | [1] | 134371-3700 | CAMSHAFT |
| 37. | [1] | 134305-0000 | BEARING SHELL |
| 38. | [2] | 029020-6140 | HEX-SOCKET-HEAD CAP SCREW |
| 39. | [2] | 134510-3900 | GASKET |
| 40. | [1] | 016650-2230 | BEARING PLATE |
| 41. | [1] | 134316-2400 | COVER |
| 42. | [1] | 026712-5010 | PACKING RING |
| 43/1. | [0] | 134314-0000 | SHIM T0.1 |
| 43/1. | [0] | 134314-0100 | SHIM T0.12 |
| 43/1. | [0] | 134314-0200 | SHIM T0.14 |
| 43/1. | [0] | 134314-0300 | SHIM T0.16 |
| 43/1. | [0] | 134314-0400 | SHIM T0.18 |
| 43/1. | [0] | 134314-0500 | SHIM T0.3 |
| 43/1. | [0] | 134314-0600 | SHIM T0.5 |
| 44. | [1] | 029635-5010 | O-RING |
| 50. | [3] | 139206-0400 | UNION NUT |
| 52. | [1] | 025805-1910 | WOODRUFF KEY |
| 53. | [1] | 014111-8410 | LOCKING WASHER |
| 54. | [1] | 139218-0000 | UNION NUT |
| 67. | [1] | 029731-4680 | EYE BOLT |
| 68. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 69. | [1] | 134433-4720 | PIPE |
| 75. | [1] | 029731-4280 | EYE BOLT |
| 76. | [3] | 029341-4130 | GASKET D20&13.8T2* |
| 82. | [1] | 134420-0020 | BLEEDER SCREW |
| 84. | [1] | 026514-1840 | GASKET D17.9&14.2T1 |
| 96. | [1] | 029639-0020 | O-RING |
| 121. | [1] | 029633-1010 | O-RING |
| 124. | [4] | 029320-6010 | LOCKING WASHER |
| 125. | [4] | 029300-6170 | SHIM D12&6.2T1 |
| 126. | [4] | 029340-6120 | GASKET |
| 138. | [1] | 029731-4680 | EYE BOLT |
| 139. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 140. | [1] | 134433-1720 | PIPE |
| 141. | [1] | 029731-4680 | EYE BOLT |
| 142. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 144. | [2] | 014110-8440 | LOCKING WASHER |
| 145. | [2] | 010038-2040 | BLEEDER SCREW M8P1.25L20 |
Include in #1:
106692-4042
as FUEL INJECTION PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
106069-8031
FUEL-INJECTION PUMP
Q 14CA FUEL INJECTION PUMP PE6P,6PD PE
Q 14CA FUEL INJECTION PUMP PE6P,6PD PE
