104745-8821 ZEXEL 9 460 613 875 BOSCH INJECTION-PUMP ASSEMBLY 9460613875 1047458821 md361634

Information injection-pump assembly

BOSCH 9 460 613 875 9460613875

ZEXEL 104745-8821 1047458821

MITSUBISHI MD361634 md361634

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104745-8821 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104745-8821
1.	_
2.	FUEL INJECTION PUMP	104645-8821
3.	NUMBER PLATE	146987-2000
4.	_	479771-0520
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1311
8.	Nozzle and Holder	MD196607
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105078-0181
11.	NOZZLE	105007-1300

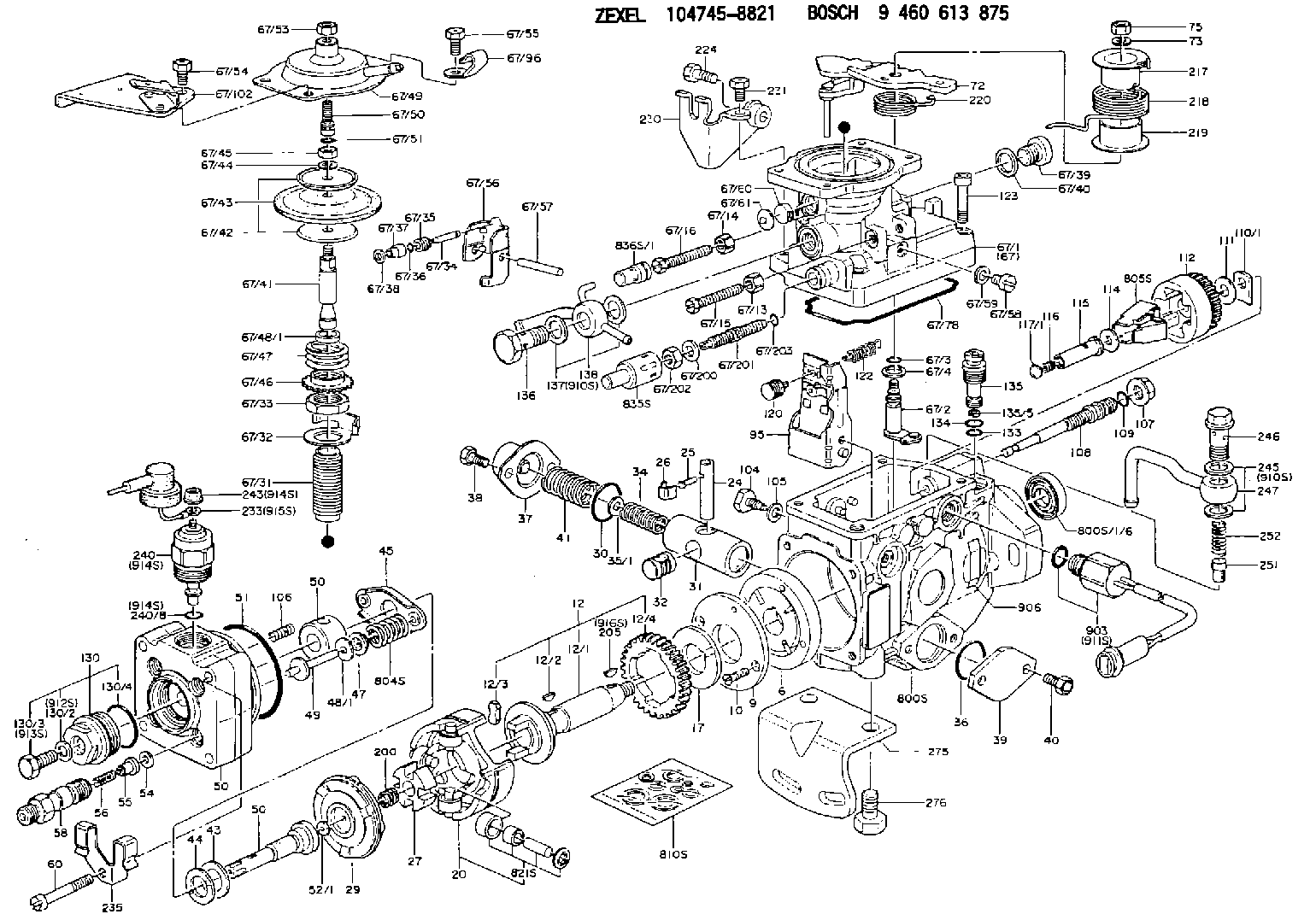

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0220	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-2320	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-6020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-6120	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-2800	COMPRESSION SPRING
34B.	[1]	146312-2900	COMPRESSION SPRING
34C.	[1]	146312-2700	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-4020	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-1900	COMPRESSION SPRING
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-2020	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0320	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146701-5220	MANIFOLD-PRESSURE COMP.
67/1.	[1]	146805-9420	GOVERNOR COVER
67/2.	[1]	146515-0320	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[1]	139310-0200	PLAIN WASHER
67/13.	[1]	146621-1700	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-3000	BLEEDER SCREW
67/16.	[1]	146526-3000	BLEEDER SCREW
67/31.	[1]	146710-0800	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4100	ADJUSTING PIN
67/42.	[2]	146714-0000	PLATE
67/43.	[1]	146715-0000	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-0400	COILED SPRING
67/48/1.	[1]	146720-0000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-0100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-0200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-0300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-0400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-0500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-0600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-0700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-0800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-0900	SPACER BUSHING L2.7
67/48/1.	[1]	146720-1000	SPACER BUSHING L2.9
67/48/1.	[1]	146720-1100	SPACER BUSHING L3.1
67/48/1.	[1]	146720-1200	SPACER BUSHING L3.3
67/48/1.	[1]	146720-1300	SPACER BUSHING L3.5
67/48/1.	[1]	146720-1400	SPACER BUSHING L2.8
67/48/1.	[1]	146720-1500	SPACER BUSHING L3.0
67/48/1.	[1]	146720-1600	SPACER BUSHING L3.2
67/48/1.	[1]	146720-1700	SPACER BUSHING L3.4
67/48/1.	[1]	146720-1800	SPACER BUSHING L3.6
67/48/1.	[1]	146720-1900	SPACER BUSHING L3.8
67/48/1.	[1]	146720-2000	SPACER BUSHING L4.0
67/48/1.	[1]	146720-2100	SPACER BUSHING L4.2
67/48/1.	[1]	146720-2200	SPACER BUSHING L4.4
67/48/1.	[1]	146720-2300	SPACER BUSHING L4.6
67/48/1.	[1]	146720-2400	SPACER BUSHING L4.8
67/48/1.	[1]	146720-2500	SPACER BUSHING L5.0
67/48/1.	[1]	146720-2600	SPACER BUSHING L5.2
67/48/1.	[1]	146720-2700	SPACER BUSHING L5.4
67/48/1.	[1]	146720-2800	SPACER BUSHING L5.5
67/48/1.	[1]	146720-2900	SPACER BUSHING L5.6
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4600	SPACER BUSHING L1.9
67/48/1.	[1]	146720-4700	SPACER BUSHING L2.0
67/48/1.	[1]	146720-4800	SPACER BUSHING L2.1
67/48/1.	[1]	146720-4900	SPACER BUSHING L2.2
67/48/1.	[1]	146720-5000	SPACER BUSHING L2.3
67/48/1.	[1]	146720-5100	SPACER BUSHING L2.4
67/48/1.	[1]	146720-5200	SPACER BUSHING L2.5
67/48/1.	[1]	146720-5300	SPACER BUSHING L2.6
67/48/1.	[1]	146725-2500	SPACER BUSHING L5.7
67/48/1.	[1]	146725-2600	SPACER BUSHING L5.8
67/48/1.	[1]	146725-2700	SPACER BUSHING L5.9
67/48/1.	[1]	146725-2800	SPACER BUSHING L6.0
67/48/1.	[1]	146725-2900	SPACER BUSHING L6.1
67/48/1.	[1]	146725-3000	SPACER BUSHING L6.2
67/48/1.	[1]	146725-3100	SPACER BUSHING L6.3
67/48/1.	[1]	146725-3200	SPACER BUSHING L6.4
67/48/1.	[1]	146725-3300	SPACER BUSHING L6.5
67/48/1.	[1]	146725-3400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-3500	SPACER BUSHING L6.7
67/48/1.	[1]	146725-3600	SPACER BUSHING L6.8
67/48/1.	[1]	146725-3700	SPACER BUSHING L6.9
67/48/1.	[1]	146725-3800	SPACER BUSHING L7.0
67/48/1.	[1]	146725-3900	SPACER BUSHING L7.1
67/48/1.	[1]	146725-4000	SPACER BUSHING L7.2
67/48/1.	[1]	146725-4100	SPACER BUSHING L7.3
67/48/1.	[1]	146725-4200	SPACER BUSHING L7.4
67/48/1.	[1]	146725-4300	SPACER BUSHING L7.5
67/49.	[1]	146721-3820	COVER
67/50.	[1]	146722-0200	FLAT-HEAD SCREW
67/51.	[1]	146600-0300	O-RING
67/53.	[1]	013020-6040	UNION NUT M6P1H5
67/54.	[2]	139006-4600	BLEEDER SCREW
67/55.	[2]	139006-4500	BLEEDER SCREW
67/56.	[1]	146723-0200	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/78.	[1]	146600-4400	SEAL RING
67/96.	[1]	146659-6320	CLAMPING BAND
67/102.	[1]	146928-4220	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
72.	[1]	146830-7620	CONTROL LEVER
72B.	[1]	146830-7720	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146550-1620	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-8000	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
120.	[1]	146879-0220	RETAINING PIN
122.	[1]	146580-2300	GOVERNOR SPRING
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146605-8421	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
217.	[1]	146542-5300	SLOTTED WASHER
218.	[1]	146592-2500	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-2600	COILED SPRING
224.	[1]	139006-4400	BLEEDER SCREW
230.	[1]	146935-4400	BRACKET
231.	[1]	139006-4600	BLEEDER SCREW
233.	[1]	146658-9020	WIRE
235.	[1]	146659-0600	CLAMPING BAND
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-4901	UNION NUT
245.	[2]	139512-0500	GASKET
246.	[1]	146125-0300	EYE BOLT
247.	[1]	146666-0120	INLET UNION
251.	[1]	146125-0101	FILTER
252.	[1]	146125-0200	COILED SPRING
275.	[1]	146612-4800	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
800S.	[1]	146018-2520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	479771-0520	PULSE GENERATOR
906.	[1]	146987-2000	NAMEPLATE
910S.	[1]	146600-4020	PARTS SET
910S.	[1]	146600-4020	PARTS SET
911S.	[1]	479771-0520	PULSE GENERATOR
912S.	[1]	026508-1140	GASKET D11.4&8.2T1
913S.	[1]	146422-0000	BLEEDER SCREW
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
915S.	[1]	146658-9020	WIRE
916S.	[1]	025804-1610	WOODRUFF KEY

Include in #2:

104745-8821 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104745-8821

9 460 613 875

MD361634 MITSUBISHI

INJECTION-PUMP ASSEMBLY
4D56 K 11CJ INJECTION PUMP ASSY VE4 VE

Information:

Engine Runs Rough
10. Misfiring Cylinder(s) ... See Misfiring and Running Rough.11. Fuel Injection Timing Not Correct ... Check and make necessary adjustments as per Testing and Adjusting section of this Service Manual.12. Automatic Timing Advance Does Not Operate Correctly ... Check with engine warm. Use the 1P3500 Timing Light Group. Special Instruction Form No. SMHS6964 gives the test procedure. If the timing light is not available, make rapid "acceleration" (increase in speed) from low idle to high idle. Engine must have smooth acceleration. A timing advance that does not operate correctly can cause delays of the engine acceleration at some rpm before high idle, or possibly cause the engine to run rough and have exhaust noise (backfire) during acceleration. This condition is difficult to find if engine acceleration is slow or at a constant engine rpm. 13. Air in Fuel System ... With air in the fuel system, the engine will normally be difficult to start, run rough, and release a large amount of white smoke. If the engine will not start, loosen a fuel injection line nut at the valve cover base. With the governor lever in the shutoff position, operate the fuel priming pump until the flow of fuel from the loosened fuel injection line is free of air. Tighten the fuel line nut. Fasten the priming pump and start the engine. If the engine still does not run smooth or releases a large amount of white smoke, loosen the fuel line nuts one at a time at the valve cover base until the fuel that comes out is free of air. Tighten the fuel line nuts. If the air can not be removed in this way, put 5 psi (35 kPa) of air pressure to the fuel tank.
Do not use more than 8 psi (55 kPa) of air pressure in the fuel tank or damage to the tank may result.
Check for leakage at the connections between the fuel tank and the fuel transfer pump. If leaks are found, tighten the connections or replace the lines. If there are no visual leaks, remove the fuel supply line from the tank and connect it to an outside fuel supply. If this corrects the problem, the suction line (standpipe) inside the fuel tank has a leak. White Smoke Recommended Procedure
1. Cold Outside Temperatures ... When the air outside is cold, the cylinder temperature is cooler. Not all the fuel will burn in the cylinders. The fuel which does not burn comes out the exhaust as white smoke. White smoke is normal in cold temperatures until the engine operates long enough to become warm. There will be less white smoke if No. 1 diesel fuel is used.2. Long Idle Periods ... When an engine runs at idle speed for a long period of time, the cylinders cool and all of the fuel does not burn. Do not idle an engine for a long period of time. Stop an engine when it is not in use. If long idle
