104745-3891 ZEXEL 9 460 613 179 BOSCH INJECTION-PUMP ASSEMBLY 9460613179 1047453891

Information injection-pump assembly

BOSCH 9 460 613 179 9460613179

ZEXEL 104745-3891 1047453891

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104745-3891 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104745-3891
1.	_
2.	FUEL INJECTION PUMP	104645-3890
3.	NUMBER PLATE	146971-8100
4.	_	479771-0520
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1311
8.	Nozzle and Holder	MD196607
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105078-0181
11.	NOZZLE	105007-1300

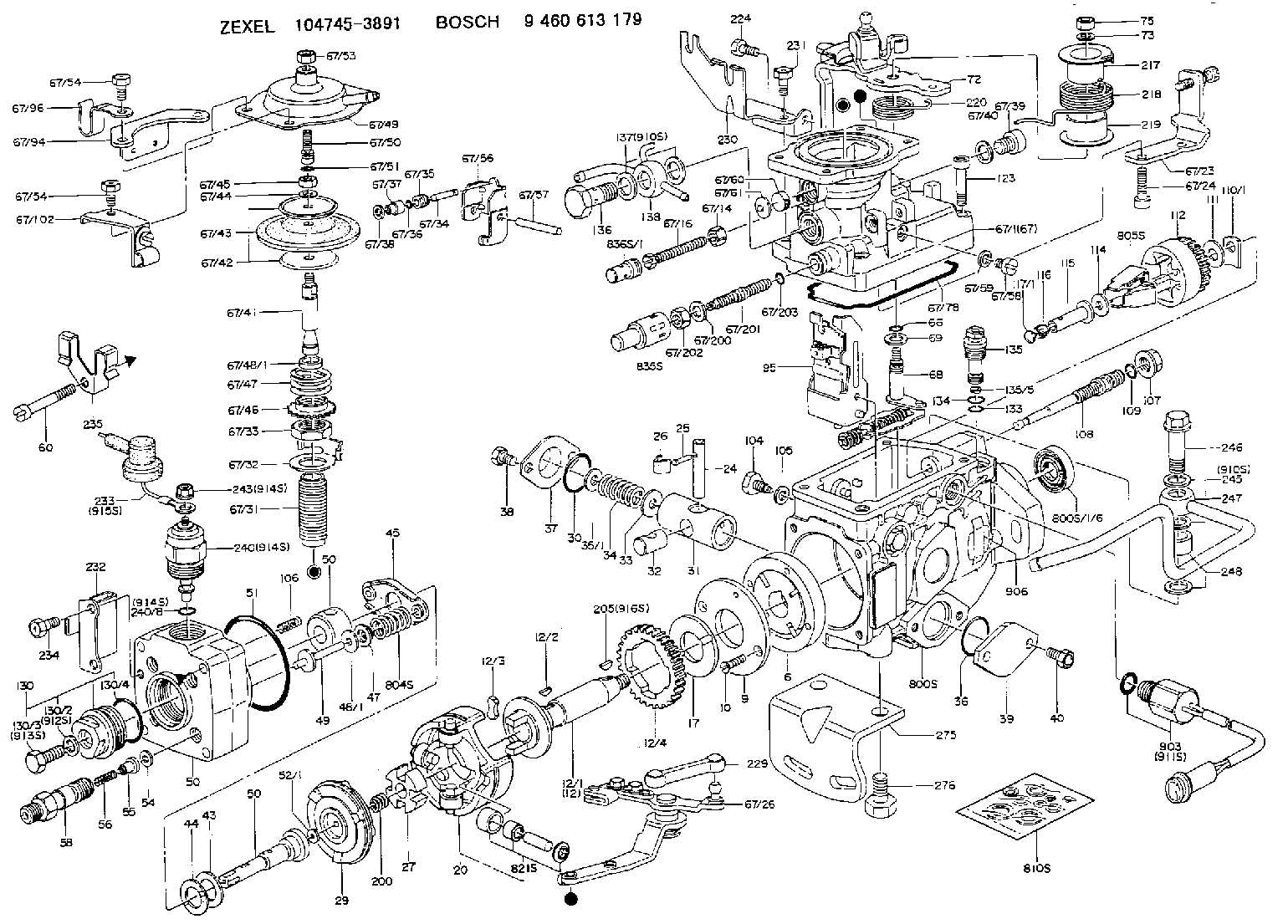

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-0120	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-6020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2400	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3300	COMPRESSION SPRING
34B.	[1]	146302-3400	COMPRESSION SPRING
34C.	[1]	146302-3500	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-2020	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0320	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146703-6820	COMPENSATOR,MANIFOLD-PRES
67/1.	[1]	146805-7320	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146927-1120	BRACKET
67/24.	[2]	010206-3040	HEX-SOCKET-HEAD CAP SCREW M6P1L30
67/26.	[1]	146931-7120	BRACKET
67/31.	[1]	146710-0700	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4300	ADJUSTING PIN
67/42.	[2]	146714-0200	PLATE
67/43.	[1]	146715-0300	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-2900	COILED SPRING
67/48/1.	[1]	146720-3000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-3100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-3200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-3300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-3400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-3500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-3600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-3700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-3800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-3900	SPACER BUSHING L5.5
67/48/1.	[1]	146720-4000	SPACER BUSHING L5.7
67/48/1.	[1]	146720-4100	SPACER BUSHING L5.9
67/48/1.	[1]	146720-4200	SPACER BUSHING L6.1
67/48/1.	[1]	146720-4300	SPACER BUSHING L6.3
67/48/1.	[1]	146720-4400	SPACER BUSHING L6.5
67/48/1.	[1]	146720-8900	SPACER BUSHING L6.7
67/48/1.	[1]	146720-9000	SPACER BUSHING L6.9
67/48/1.	[1]	146720-9100	SPACER BUSHING L7.1
67/48/1.	[1]	146720-9200	SPACER BUSHING L7.3
67/48/1.	[1]	146720-9300	SPACER BUSHING L7.5
67/48/1.	[1]	146720-9400	SPACER BUSHING L7.7
67/48/1.	[1]	146720-9500	SPACER BUSHING L7.9
67/48/1.	[1]	146720-9600	SPACER BUSHING L8.1
67/48/1.	[1]	146720-9700	SPACER BUSHING L8.3
67/48/1.	[1]	146720-9800	SPACER BUSHING L8.5
67/48/1.	[1]	146720-9900	SPACER BUSHING L3.6
67/48/1.	[1]	146725-0000	SPACER BUSHING L3.8
67/48/1.	[1]	146725-0100	SPACER BUSHING L4.0
67/48/1.	[1]	146725-0200	SPACER BUSHING L4.2
67/48/1.	[1]	146725-0300	SPACER BUSHING L4.4
67/48/1.	[1]	146725-0400	SPACER BUSHING L4.6
67/48/1.	[1]	146725-0500	SPACER BUSHING L4.8
67/48/1.	[1]	146725-0600	SPACER BUSHING L5.0
67/48/1.	[1]	146725-0700	SPACER BUSHING L5.2
67/48/1.	[1]	146725-0800	SPACER BUSHING L5.4
67/48/1.	[1]	146725-0900	SPACER BUSHING L5.6
67/48/1.	[1]	146725-1000	SPACER BUSHING L5.8
67/48/1.	[1]	146725-1100	SPACER BUSHING L6.0
67/48/1.	[1]	146725-1200	SPACER BUSHING L6.2
67/48/1.	[1]	146725-1300	SPACER BUSHING L6.4
67/48/1.	[1]	146725-1400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-1500	SPACER BUSHING L6.8
67/48/1.	[1]	146725-1600	SPACER BUSHING L7.0
67/48/1.	[1]	146725-1700	SPACER BUSHING L7.2
67/48/1.	[1]	146725-1800	SPACER BUSHING L7.4
67/48/1.	[1]	146725-1900	SPACER BUSHING L7.6
67/48/1.	[1]	146725-2000	SPACER BUSHING L7.8
67/48/1.	[1]	146725-2100	SPACER BUSHING L8.0
67/48/1.	[1]	146725-2200	SPACER BUSHING L8.2
67/48/1.	[1]	146725-2300	SPACER BUSHING L8.4
67/48/1.	[1]	146725-2400	SPACER BUSHING L8.6
67/49.	[1]	146721-3720	COVER
67/50.	[1]	146722-0200	FLAT-HEAD SCREW
67/51.	[1]	146600-0300	O-RING
67/53.	[1]	013020-6040	UNION NUT M6P1H5
67/54.	[4]	139006-4600	BLEEDER SCREW
67/54.	[4]	139006-4600	BLEEDER SCREW
67/56.	[1]	146723-0300	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/78.	[1]	146600-4400	SEAL RING
67/94.	[1]	146931-9200	BRACKET
67/96.	[1]	146659-7220	CLAMPING BAND
67/102.	[1]	146926-5520	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146810-0120	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146830-7320	CONTROL LEVER
72B.	[1]	146830-7420	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146550-1520	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-8000	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146665-4520	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
217.	[1]	146542-5300	SLOTTED WASHER
218.	[1]	146592-2500	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-2600	COILED SPRING
224.	[1]	139006-4400	BLEEDER SCREW
229.	[1]	146613-8300	JOINT CONNECTION
230.	[1]	146629-0200	BRACKET
231.	[1]	139006-4400	BLEEDER SCREW
232.	[1]	146928-8600	BRACKET
233.	[1]	146658-9020	WIRE
234.	[1]	139006-4700	BLEEDER SCREW
235.	[1]	146659-0600	CLAMPING BAND
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	139812-1900	EYE BOLT
247.	[1]	146666-5520	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-4800	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
800S.	[1]	146018-2520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	479771-0520	PULSE GENERATOR
906.	[1]	146971-8100	NAMEPLATE
910S.	[1]	146600-4220	PARTS SET
910S.	[1]	146600-4220	PARTS SET
911S.	[1]	479771-0520	PULSE GENERATOR
912S.	[1]	026508-1140	GASKET D11.4&8.2T1
913S.	[1]	146422-0000	BLEEDER SCREW
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
915S.	[1]	146658-9020	WIRE
916S.	[1]	025804-1610	WOODRUFF KEY

Include in #2:

104745-3891 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104745-3891
104745-3892

9 460 613 179

INJECTION-PUMP ASSEMBLY
* K 11CJ VE4 VE

Information:

Tachometer Error...To check, connect a tachometer of known accuracy to the engine. Run the engine and make a comparison of the readings of the vehicle and test tachometers. If vehicle tachometer is defective, make repairs as necessary or install a new tachometer.Engine Operated at High Altitude...Less oxygen at higher altitudes causes the engine horsepower to go down approximately three percent for each 1000 ft. above sea level. *Brakes Do Not Completely Release... Check the brakes by feeling all the brake drums. If the brakes do not completely release, the brake drum for that wheel will be hotter than the brake drums for the other wheels. With the truck jacked up the wheels must rotate freely when turned by hand.Vehicle Operated in Too High a Gear... If the operator does not shift the truck correctly or operates the truck in a "lug" condition (using the truck in too high a gear for engine rpm to go up as accelerator pedal is pushed farther down, or using the truck in a gear where engine rpm goes down with accelerator pedal at maximum travel), poor vehicle performance is the result. For best engine performance do not lug the engine more than 600 rpm below its full load speed.Extra Engine Driven Equipment...Air compressors, hydraulic pumps, generators, and other engine driven equipment that has damage, or that was not installed correctly, or that is not in correct adjustment, can take more horsepower to drive than expected. If necessary, disconnect the equipment and test the engine.Speedometer Error...A damaged speedometer does not give the correct speed or the correct indication of fuel consumption. An indication of low speed can cause the operator to feel that he has a power problem.Speeds Too High...The need for more horsepower is easy to see as the speed of the vehicle is increased. This is especially true if the front of the vehicle has a large surface area. Your authorized dealer can give you the horsepower needs for a vehicle, and the horsepower necessary for different vehicle designs at different speeds.Overload on Vehicle *High Moving Resistance...Soft ground conditions cause a need for more horsepower. To see if the problem is the engine, test the vehicle on a surface known to be good, or test on a chassis dynamometer.High Wind Resistance...The horsepower needs for a truck can be divided into two parts. Part of the horsepower is used to move the vehicle and part is used to get through wind resistance. The horsepower necessary to get through the wind resistance will increase as the vehicle is used at higher speeds. Vehicles with a large front area have a higher wind resistance and take more horsepower than those with a small front area. Some types of trucks, for example those used for the transportation of automobiles and/or boats have high wind resistance even if the front area is small. Moving against the wind has the same effect on wind resistance as does higher vehicle speed.Power Loss in Drive Gears...It is possible for

Have questions with 104745-3891?

MD326155

INJECTION-PUMP ASSEMBLY
4D56

104745-3890

104745-3891

9 460 611 737

INJECTION-PUMP ASSEMBLY

104745-3891

104745-3892

9 460 613 179

INJECTION-PUMP ASSEMBLY

Mitsubishi

104745-3892

9 460 613 474

MD326847

INJECTION-PUMP ASSEMBLY
4D56
