104745-3471 ZEXEL 9 460 611 883 BOSCH INJECTION-PUMP ASSEMBLY 9460611883 1047453471 md332819

Information injection-pump assembly

BOSCH 9 460 611 883 9460611883

ZEXEL 104745-3471 1047453471

MITSUBISHI MD332819 md332819

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104745-3471 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104745-3471
1.	_
2.	FUEL INJECTION PUMP	104645-3471
3.	NUMBER PLATE	146959-8200
4.	_	479771-0520
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1311
8.	Nozzle and Holder	MD196607
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105078-0181
11.	NOZZLE	105007-1300

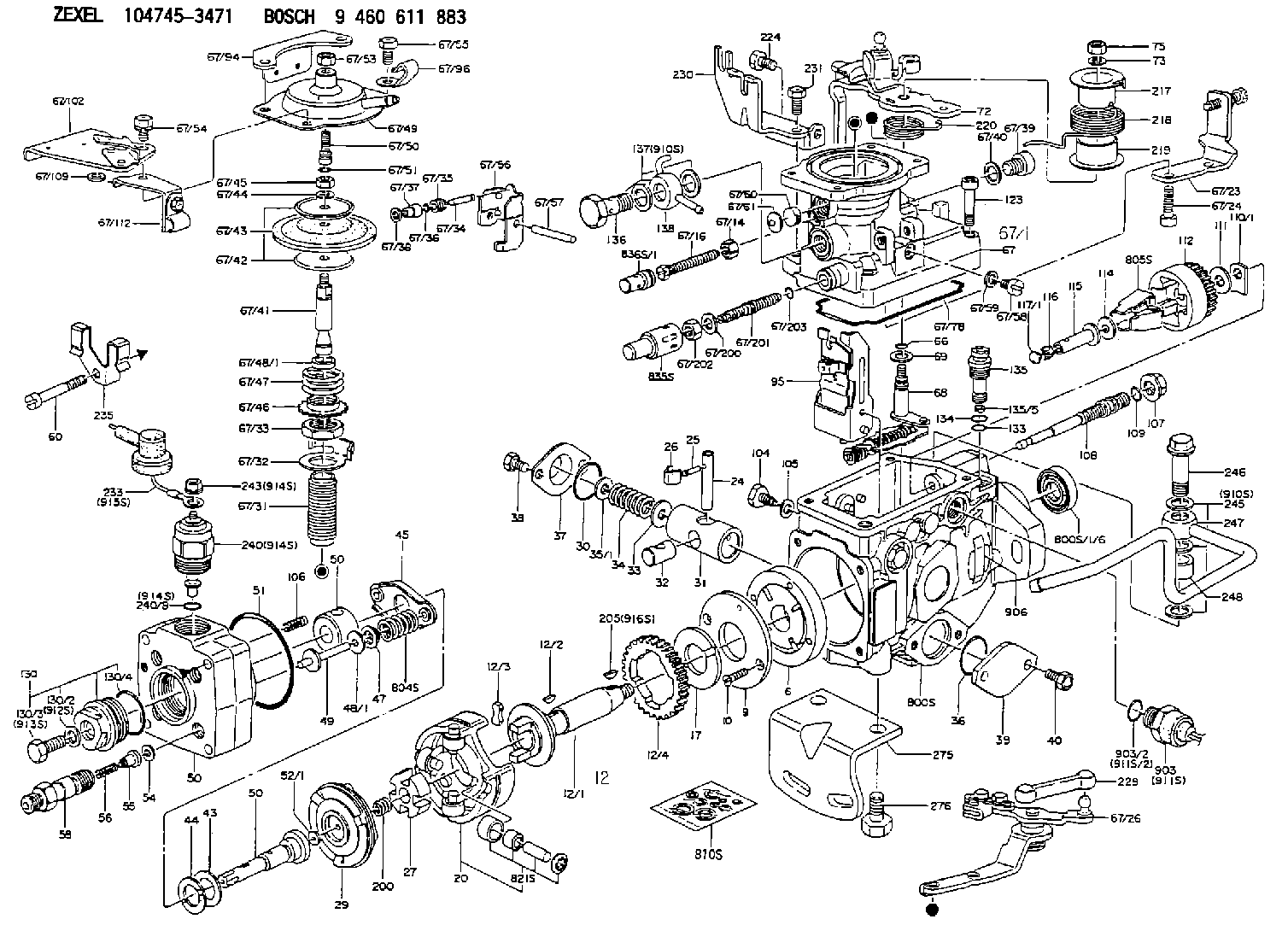

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-0120	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-6020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2400	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3300	COMPRESSION SPRING
34B.	[1]	146302-3400	COMPRESSION SPRING
34C.	[1]	146302-3500	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
50.	[1]	146401-3220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-2020	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0320	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146760-2320	MANIFOLD-PRESSURE COMP.
67/1.	[1]	146805-7320	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146927-1120	BRACKET
67/24.	[2]	010206-3040	HEX-SOCKET-HEAD CAP SCREW M6P1L30
67/26.	[1]	146933-4720	BRACKET
67/26/2.	[1]	146548-0620	CONTROL LEVER
67/26/3.	[1]	146614-4100	BUSHING
67/26/4.	[1]	146588-0200	COILED SPRING
67/26/5.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
67/26/6.	[1]	016010-0740	LOCKING WASHER
67/26/7.	[1]	146542-7300	CONTROL LEVER
67/26/8.	[2]	010065-0840	BLEEDER SCREW M5P0.8L8
67/26/9.	[2]	014110-5440	LOCKING WASHER
67/26/10.	[2]	014020-5140	PLAIN WASHER D10&5.5T0.8
67/31.	[1]	146710-0800	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4100	ADJUSTING PIN
67/42.	[2]	146714-0000	PLATE
67/43.	[1]	146715-0000	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-0400	COILED SPRING
67/48/1.	[1]	146720-0000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-0100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-0200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-0300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-0400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-0500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-0600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-0700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-0800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-0900	SPACER BUSHING L2.7
67/48/1.	[1]	146720-1000	SPACER BUSHING L2.9
67/48/1.	[1]	146720-1100	SPACER BUSHING L3.1
67/48/1.	[1]	146720-1200	SPACER BUSHING L3.3
67/48/1.	[1]	146720-1300	SPACER BUSHING L3.5
67/48/1.	[1]	146720-1400	SPACER BUSHING L2.8
67/48/1.	[1]	146720-1500	SPACER BUSHING L3.0
67/48/1.	[1]	146720-1600	SPACER BUSHING L3.2
67/48/1.	[1]	146720-1700	SPACER BUSHING L3.4
67/48/1.	[1]	146720-1800	SPACER BUSHING L3.6
67/48/1.	[1]	146720-1900	SPACER BUSHING L3.8
67/48/1.	[1]	146720-2000	SPACER BUSHING L4.0
67/48/1.	[1]	146720-2100	SPACER BUSHING L4.2
67/48/1.	[1]	146720-2200	SPACER BUSHING L4.4
67/48/1.	[1]	146720-2300	SPACER BUSHING L4.6
67/48/1.	[1]	146720-2400	SPACER BUSHING L4.8
67/48/1.	[1]	146720-2500	SPACER BUSHING L5.0
67/48/1.	[1]	146720-2600	SPACER BUSHING L5.2
67/48/1.	[1]	146720-2700	SPACER BUSHING L5.4
67/48/1.	[1]	146720-2800	SPACER BUSHING L5.5
67/48/1.	[1]	146720-2900	SPACER BUSHING L5.6
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4600	SPACER BUSHING L1.9
67/48/1.	[1]	146720-4700	SPACER BUSHING L2.0
67/48/1.	[1]	146720-4800	SPACER BUSHING L2.1
67/48/1.	[1]	146720-4900	SPACER BUSHING L2.2
67/48/1.	[1]	146720-5000	SPACER BUSHING L2.3
67/48/1.	[1]	146720-5100	SPACER BUSHING L2.4
67/48/1.	[1]	146720-5200	SPACER BUSHING L2.5
67/48/1.	[1]	146720-5300	SPACER BUSHING L2.6
67/48/1.	[1]	146725-2500	SPACER BUSHING L5.7
67/48/1.	[1]	146725-2600	SPACER BUSHING L5.8
67/48/1.	[1]	146725-2700	SPACER BUSHING L5.9
67/48/1.	[1]	146725-2800	SPACER BUSHING L6.0
67/48/1.	[1]	146725-2900	SPACER BUSHING L6.1
67/48/1.	[1]	146725-3000	SPACER BUSHING L6.2
67/48/1.	[1]	146725-3100	SPACER BUSHING L6.3
67/48/1.	[1]	146725-3200	SPACER BUSHING L6.4
67/48/1.	[1]	146725-3300	SPACER BUSHING L6.5
67/48/1.	[1]	146725-3400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-3500	SPACER BUSHING L6.7
67/48/1.	[1]	146725-3600	SPACER BUSHING L6.8
67/48/1.	[1]	146725-3700	SPACER BUSHING L6.9
67/48/1.	[1]	146725-3800	SPACER BUSHING L7.0
67/48/1.	[1]	146725-3900	SPACER BUSHING L7.1
67/48/1.	[1]	146725-4000	SPACER BUSHING L7.2
67/48/1.	[1]	146725-4100	SPACER BUSHING L7.3
67/48/1.	[1]	146725-4200	SPACER BUSHING L7.4
67/48/1.	[1]	146725-4300	SPACER BUSHING L7.5
67/49.	[1]	146721-3820	COVER
67/50.	[1]	146722-0200	FLAT-HEAD SCREW
67/51.	[1]	146600-0300	O-RING
67/53.	[1]	013020-6040	UNION NUT M6P1H5
67/54.	[3]	139006-4700	BLEEDER SCREW
67/55.	[1]	139006-4600	BLEEDER SCREW
67/56.	[1]	146723-0300	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/78.	[1]	146600-4400	SEAL RING
67/94.	[1]	146627-5100	BRACKET
67/96.	[1]	146659-6320	CLAMPING BAND
67/102.	[1]	146932-1420	BRACKET
67/109.	[1]	146603-2000	SHIM D11.4&8.6T0.30
67/112.	[1]	146926-5520	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146810-0720	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146830-7320	CONTROL LEVER
72B.	[1]	146830-7420	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146550-1520	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146875-8400	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146666-7220	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
217.	[1]	146542-5300	SLOTTED WASHER
218.	[1]	146592-2500	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-2600	COILED SPRING
224.	[1]	139006-4400	BLEEDER SCREW
229.	[1]	146613-8300	JOINT CONNECTION
230.	[1]	146613-7900	BRACKET
231.	[1]	139006-4400	BLEEDER SCREW
233.	[1]	146658-9020	WIRE
235.	[1]	146659-0600	CLAMPING BAND
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	139812-1900	EYE BOLT
247.	[1]	146666-7420	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-4800	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
800S.	[1]	146018-2520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146672-2820	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146959-8200	NAMEPLATE
910S.	[1]	146600-4220	PARTS SET
910S.	[1]	146600-4220	PARTS SET
911S.	[1]	146672-2820	PULSE GENERATOR
911S/2.	[1]	146600-1300	O-RING &13W1.9
911S/2.	[1]	146600-1300	O-RING &13W1.9
912S.	[1]	026508-1140	GASKET D11.4&8.2T1
913S.	[1]	146422-0000	BLEEDER SCREW
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
914S.	[1]	146699-0020	VALVE SET
915S.	[1]	146658-9020	WIRE
916S.	[1]	025804-1610	WOODRUFF KEY

Include in #2:

104745-3471 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104745-3471

9 460 611 883

MD332819 MITSUBISHI

INJECTION-PUMP ASSEMBLY
4D56 K 11CJ INJECTION PUMP ASSY VE4 VE

Information:

API Degrees - Temperature Correction Chart for Diesel Fuel
Record the corrected API gravity from this chart.Table of Horsepower Correction Factors
Table 2
Corrected API
Gravity at 60° F Precombustion
Chamber Engines Direct Injection Engines (Use the correct full load RPM)
1800 2000 2200 2400 2600 2800 3000 3200
32.0
32.5
33.0
33.5
34.0 .984
.987
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995 .986
.988
.990
.992
.995
34.5
35.0
35.5
36.0
36.5 .997
1.000
1.003
1.005
1.008 .998
1.000
1.003
1.007
1.013 .998
1.000
1.003
1.007
1.010 .998
1.000
1.004
1.007
1.011 .998
1.000
1.004
1.007
1.011 .998
1.000
1.004
1.007
1.011 .998
1.000
1.004
1.008
1.012 .998
1.000
1.004
1.008
1.012 .998
1.000
1.004
1.008
1.012
37.0
37.5
38.0
38.5
39.0 1.011
1.014
1.017
1.020
1.023 1.014
1.018
1.022
1.025
1.029 1.014
1.018
1.022
1.026
1.030 1.014
1.018
1.022
1.026
1.030 1.015
1.019
1.022
1.026
1.030 1.015
1.019
1.023
1.027
1.031 1.016
1.020
1.024
1.028
1.032 1.016
1.020
1.024
1.028
1.033 1.016
1.021
1.025
1.029
1.034
39.5
40.0
40.5
41.0
41.5 1.027
1.030
1.034
1.038
1.043 1.034
1.038
1.043
1.048
1.053 1.034
1.038
1.043
1.048
1.054 1.034
1.039
1.044
1.049
1.055 1.035
1.040
1.045
1.050
1.056 1.036
1.040
1.045
1.051
1.056 1.036
1.041
1.046
1.051
1.057 1.037
1.042
1.047
1.053
1.059 1.039
1.045
1.047
1.057
1.064
42.0
42.5
43.0
43.5
44.0 1.047
1.053
1.060
1.067
1.076 1.059
1.066
1.073
1.082
1.095 1.060
1.067
1.074
1.084
1.096 1.061
1.068
1.076
1.085
1.098 1.062
1.069
1.077
1.086
1.099 1.063
1.070
1.078
1.087
1.100 1.064
1.071
1.079
1.088
1.102 1.066
1.072
1.081
1.091
1.105 1.072
1.080
1.089
1.099
1.115 Use the above chart to find the horsepower correction factor.Calculating the Corrected Horsepower
Determine the rated full load horsepower from the Rack Setting Information Book.
Divide the rated horsepower by the horsepower correction factor for fuel density; the result is the corrected horsepower.Example:1674 - Truck Engine Serial No. 94B2551Rated Horsepower: 270 HorsepowerCalculations:
Table 3
1. Measured API gravity: 40.4' API at 50' (round to 40' API)
2. Corrected API gravity (see chart): 41' API at 60'F
3. Hpr correction factor (see chart): 1.038
4. Corrected Hp = Rated Hpr = 270 = 260 Hp
Correction Factor 1.038 (or 3.75% hp loss) Correcting for Fuel Density When Testing Engines on a Dynamometer
When engines are tested on a dynamometer which measures actual flywheel or drive train output, the observed horsepower is dependent on the fuel used. If the fuel being used is not 35° API at 60°F, then any dynamometer readings must be corrected to determine the output if 35° API fuel had been used. The same horsepower correction factor is used, but the formula is different:Corrected Horsepower = Observed Horsepower x Horsepower Correction FactorExample:1674 Truck Engine, Serial No. 9482551Rated (full load Horsepower: 270 Horsepower)Observed (dynamometer) Horsepower: 260 HorsepowerCalculations:
Measured API gravity: 39.6° API at 50°F (round to 40° API)
Corrected API Gravity (see chart): 41° API at 60°F
Horsepower Correction Factor (see chart): 1.038
Corrected Horsepower = Observed Horsepower x Horsepower Correction Factor 260 horsepower x 1.038 = 270 horsepower(Although the dynamometer indicated low horsepower, if the proper fuel had been used, the engine would be operating at rated output. The factory tolerance on rated engine output is 3%.)REFERENCE: For more information on dynamometer testing diesel engines, see Special Instruction Form GEG01024 .Diesel Fuel API Gravity to IbsJU.S. gallon or kg/liter Conversion Chart
The following chart may be used to convert the fuel API gravity to Ibs./U.S. gallon or kg/liter. These weights are for reference and are to be used when evaluating engine performance. Measurement of fuel flow rates can be converted
