104745-3422 ZEXEL 9 460 613 298 BOSCH INJECTION-PUMP ASSEMBLY 9460613298 1047453422 md313060




Information injection-pump assembly

BOSCH 9 460 613 298 9460613298
ZEXEL 104745-3422 1047453422
MITSUBISHI MD313060 md313060
104745-3422 INJECTION-PUMP ASSEMBLY
Rating:
33
Buy INJECTION-PUMP ASSEMBLY 104745-3422 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104745-3422
1. _
2. FUEL INJECTION PUMP 104645-3421
3. NUMBER PLATE 146971-7700
4. _ 479771-0520
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105148-1311
8. Nozzle and Holder MD196607
9. Open Pre:MPa(Kqf/cm2) 14.7{150}
10. NOZZLE-HOLDER 105078-0181
11. NOZZLE 105007-1300

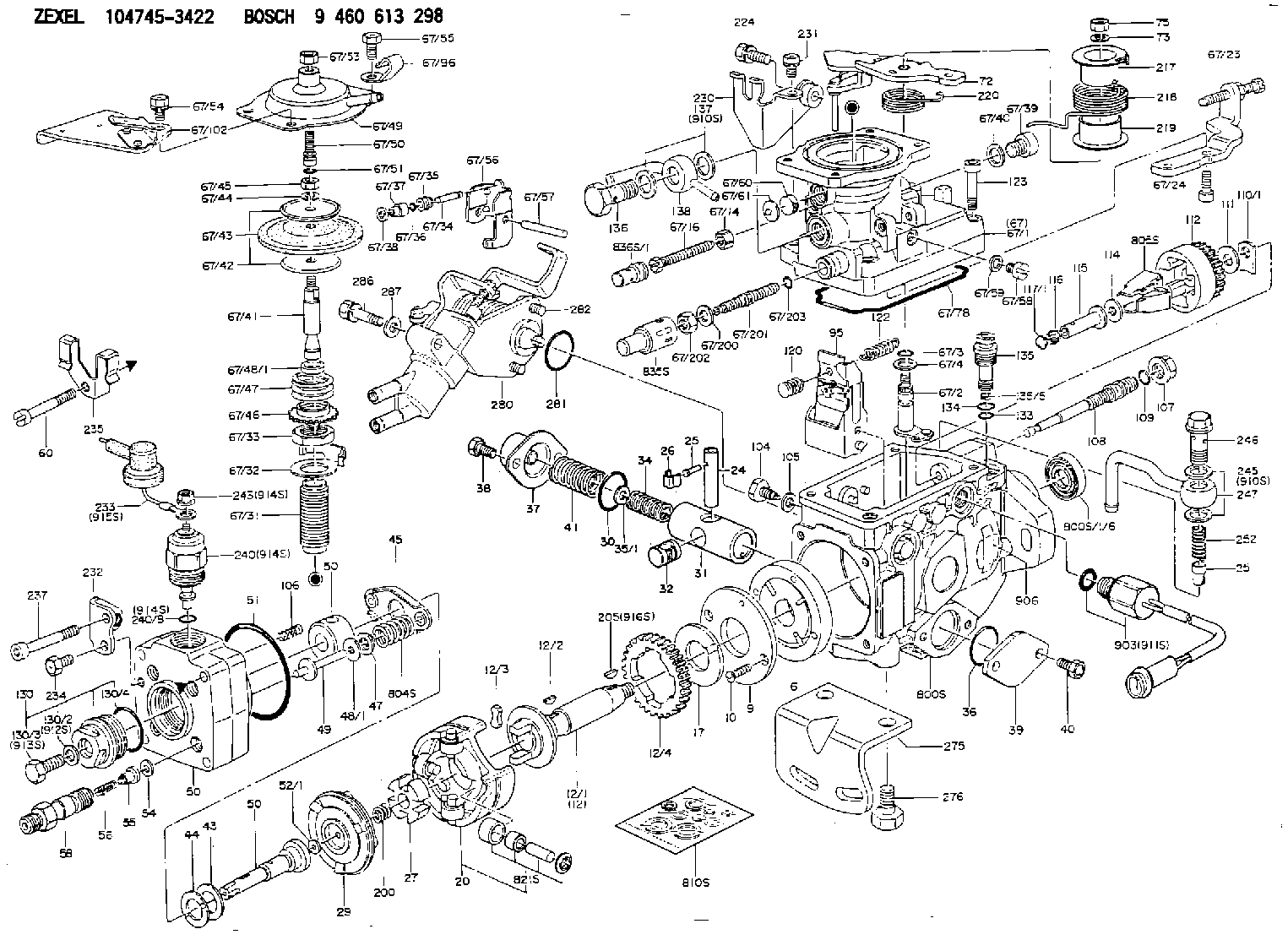

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0220 SUPPLY PUMP
9. [1] 146103-0100 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-3520 ROLLER SET
24. [1] 146303-0100 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-2120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146311-6320 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
34. [1] 146312-2900 COMPRESSION SPRING
34B. [1] 146312-2800 COMPRESSION SPRING
34C. [1] 146312-3200 COMPRESSION SPRING
35/1. [1] 146690-3200 SHIM D11.5&9.4T0.1
35/1. [1] 146690-3300 SHIM D11.5&9.4T0.2
35/1. [1] 146690-3400 SHIM D11.5&9.4T0.25
35/1. [1] 146690-3500 SHIM D11.5&9.4T1.0
35/1. [1] 146690-4100 SHIM D11.5&9.4T2
35/1. [1] 146690-4200 SHIM D11.5&9.4T0.5
35/1. [1] 146690-4300 SHIM D11.5&9.4T0.75
36. [1] 146600-0800 O-RING
37. [1] 146310-4020 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
41. [1] 146312-1900 COMPRESSION SPRING
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0500 GUIDE PIN
50. [1] 146401-3220 HYDRAULIC HEAD
50. [1] 146401-3220 HYDRAULIC HEAD
50. [1] 146401-3220 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-2020 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0320 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
67. [1] 146701-3720 MANIFOLD-PRESSURE COMP.
67/1. [1] 146805-9420 GOVERNOR COVER
67/2. [1] 146515-0320 CONTROL SHAFT
67/3. [1] 146600-0100 O-RING
67/4. [1] 139310-0200 PLAIN WASHER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3000 BLEEDER SCREW
67/23. [1] 146930-3620 BRACKET
67/24. [2] 010206-1440 HEX-SOCKET-HEAD CAP SCREW M6P1L14
67/31. [1] 146710-0800 BUSHING
67/32. [1] 146711-0000 PLATE
67/33. [1] 139218-0400 UNION NUT
67/34. [1] 146712-0700 BEARING PIN
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-4100 ADJUSTING PIN
67/42. [2] 146714-0000 PLATE
67/43. [1] 146715-0000 DIAPHRAGM
67/44. [1] 139306-0100 LOCKING WASHER
67/45. [1] 013030-6040 UNION NUT M6P1H3.6
67/46. [1] 146716-0000 UNION NUT
67/47. [1] 146717-0400 COILED SPRING
67/48/1. [1] 146720-0000 SPACER BUSHING L3.7
67/48/1. [1] 146720-0100 SPACER BUSHING L3.9
67/48/1. [1] 146720-0200 SPACER BUSHING L4.1
67/48/1. [1] 146720-0300 SPACER BUSHING L4.3
67/48/1. [1] 146720-0400 SPACER BUSHING L4.5
67/48/1. [1] 146720-0500 SPACER BUSHING L4.7
67/48/1. [1] 146720-0600 SPACER BUSHING L4.9
67/48/1. [1] 146720-0700 SPACER BUSHING L5.1
67/48/1. [1] 146720-0800 SPACER BUSHING L5.3
67/48/1. [1] 146720-0900 SPACER BUSHING L2.7
67/48/1. [1] 146720-1000 SPACER BUSHING L2.9
67/48/1. [1] 146720-1100 SPACER BUSHING L3.1
67/48/1. [1] 146720-1200 SPACER BUSHING L3.3
67/48/1. [1] 146720-1300 SPACER BUSHING L3.5
67/48/1. [1] 146720-1400 SPACER BUSHING L2.8
67/48/1. [1] 146720-1500 SPACER BUSHING L3.0
67/48/1. [1] 146720-1600 SPACER BUSHING L3.2
67/48/1. [1] 146720-1700 SPACER BUSHING L3.4
67/48/1. [1] 146720-1800 SPACER BUSHING L3.6
67/48/1. [1] 146720-1900 SPACER BUSHING L3.8
67/48/1. [1] 146720-2000 SPACER BUSHING L4.0
67/48/1. [1] 146720-2100 SPACER BUSHING L4.2
67/48/1. [1] 146720-2200 SPACER BUSHING L4.4
67/48/1. [1] 146720-2300 SPACER BUSHING L4.6
67/48/1. [1] 146720-2400 SPACER BUSHING L4.8
67/48/1. [1] 146720-2500 SPACER BUSHING L5.0
67/48/1. [1] 146720-2600 SPACER BUSHING L5.2
67/48/1. [1] 146720-2700 SPACER BUSHING L5.4
67/48/1. [1] 146720-2800 SPACER BUSHING L5.5
67/48/1. [1] 146720-2900 SPACER BUSHING L5.6
67/48/1. [1] 146720-4500 SPACER BUSHING L1.8
67/48/1. [1] 146720-4600 SPACER BUSHING L1.9
67/48/1. [1] 146720-4700 SPACER BUSHING L2.0
67/48/1. [1] 146720-4800 SPACER BUSHING L2.1
67/48/1. [1] 146720-4900 SPACER BUSHING L2.2
67/48/1. [1] 146720-5000 SPACER BUSHING L2.3
67/48/1. [1] 146720-5100 SPACER BUSHING L2.4
67/48/1. [1] 146720-5200 SPACER BUSHING L2.5
67/48/1. [1] 146720-5300 SPACER BUSHING L2.6
67/48/1. [1] 146725-2500 SPACER BUSHING L5.7
67/48/1. [1] 146725-2600 SPACER BUSHING L5.8
67/48/1. [1] 146725-2700 SPACER BUSHING L5.9
67/48/1. [1] 146725-2800 SPACER BUSHING L6.0
67/48/1. [1] 146725-2900 SPACER BUSHING L6.1
67/48/1. [1] 146725-3000 SPACER BUSHING L6.2
67/48/1. [1] 146725-3100 SPACER BUSHING L6.3
67/48/1. [1] 146725-3200 SPACER BUSHING L6.4
67/48/1. [1] 146725-3300 SPACER BUSHING L6.5
67/48/1. [1] 146725-3400 SPACER BUSHING L6.6
67/48/1. [1] 146725-3500 SPACER BUSHING L6.7
67/48/1. [1] 146725-3600 SPACER BUSHING L6.8
67/48/1. [1] 146725-3700 SPACER BUSHING L6.9
67/48/1. [1] 146725-3800 SPACER BUSHING L7.0
67/48/1. [1] 146725-3900 SPACER BUSHING L7.1
67/48/1. [1] 146725-4000 SPACER BUSHING L7.2
67/48/1. [1] 146725-4100 SPACER BUSHING L7.3
67/48/1. [1] 146725-4200 SPACER BUSHING L7.4
67/48/1. [1] 146725-4300 SPACER BUSHING L7.5
67/49. [1] 146721-3820 COVER
67/50. [1] 146722-0200 FLAT-HEAD SCREW
67/51. [1] 146600-0300 O-RING
67/53. [1] 013020-6040 UNION NUT M6P1H5
67/54. [2] 139006-4600 BLEEDER SCREW
67/55. [2] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0200 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0600 CAPSULE
67/78. [1] 146600-4400 SEAL RING
67/96. [1] 146659-6320 CLAMPING BAND
67/102. [1] 146928-4220 BRACKET
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
72. [1] 146830-7620 CONTROL LEVER
72B. [1] 146830-7720 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146550-1620 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-8100 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
120. [1] 146879-0220 RETAINING PIN
122. [1] 146580-2300 GOVERNOR SPRING
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0020 OVER FLOW VALVE
137. [2] 139512-0500 GASKET
138. [1] 146605-8421 INLET UNION
200. [1] 146206-0100 COILED SPRING
205. [1] 029470-4030 WOODRUFF KEY
217. [1] 146542-5300 SLOTTED WASHER
218. [1] 146592-2500 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-2600 COILED SPRING
224. [1] 139006-4700 BLEEDER SCREW
230. [1] 146629-2120 BRACKET
231. [1] 139006-4600 BLEEDER SCREW
232. [1] 146931-3200 BRACKET
233. [1] 146658-9020 WIRE
234. [1] 139006-4800 BLEEDER SCREW
235. [1] 146659-0600 CLAMPING BAND
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
243. [1] 146621-1000 UNION NUT
245. [2] 139512-0500 GASKET
246. [1] 146125-0300 EYE BOLT
247. [1] 146666-0120 INLET UNION
251. [1] 146125-0101 FILTER
252. [1] 146125-0200 COILED SPRING
275. [1] 146612-4800 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146361-4120 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [2] 010206-1240 HEX-SOCKET-HEAD CAP SCREW M6P1L12
286. [1] 020106-3040 BLEEDER SCREW
287. [1] 014010-6140 PLAIN WASHER D13&6.5T1
800S. [1] 146018-4820 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
903. [1] 479771-0520 PULSE GENERATOR
906. [1] 146971-7700 NAMEPLATE
910S. [1] 146600-4020 PARTS SET
910S. [1] 146600-4020 PARTS SET
911S. [1] 479771-0520 PULSE GENERATOR
912S. [1] 026508-1140 GASKET D11.4&8.2T1
913S. [1] 146422-0000 BLEEDER SCREW
914S. [1] 146699-0020 VALVE SET
914S. [1] 146699-0020 VALVE SET
914S. [1] 146699-0020 VALVE SET
915S. [1] 146658-9020 WIRE
916S. [1] 025804-1610 WOODRUFF KEY

Include in #2:

104745-3422 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104745-3422
9 460 613 298
MD313060  MITSUBISHI
INJECTION-PUMP ASSEMBLY
4D56 K 11CJ INJECTION PUMP ASSY VE4 VE




Information:

Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the correct training.Before begining ANY work on the fuel system, refer to Operation and Maintenance Manual, "General Hazard Information and High Pressure Fuel Lines" for safety information.Refer to Systems Operation, Testing and Adjusting Manual, "Cleanliness of Fuel System Components" for detailed information on the standards of cleanliness that must be observed during ALL work on the fuel system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be

Have questions with 104745-3422?





Group cross 104745-3422 ZEXEL

104745-3400

104745-3401
9 460 611 729

INJECTION-PUMP ASSEMBLY
104745-3401

104745-3402
9 460 613 397

INJECTION-PUMP ASSEMBLY

Mitsubishi

104745-3402
9 460 613 856
MD313033
INJECTION-PUMP ASSEMBLY
4D56
104745-3410
9 460 611 730
MD313034
INJECTION-PUMP ASSEMBLY
4D56
104745-3420

104745-3421
9 460 611 731

INJECTION-PUMP ASSEMBLY
104745-3421

104745-3422
9 460 611 882

INJECTION-PUMP ASSEMBLY

Mitsubishi

104745-3422
9 460 613 298
MD313060
INJECTION-PUMP ASSEMBLY
4D56
104745-3430

104745-3431
9 460 612 782

INJECTION-PUMP ASSEMBLY
104745-3431

104745-3432
9 460 610 686

INJECTION-PUMP ASSEMBLY

Mitsubishi

104745-3432
9 460 610 737
MD312882
INJECTION-PUMP ASSEMBLY
4D56
104745-3440
9 460 610 910
MD312883
INJECTION-PUMP ASSEMBLY
4D56
104745-3450
9 460 610 911
MD312884
INJECTION-PUMP ASSEMBLY
4D56
104745-3460

104745-3461
9 460 612 783

INJECTION-PUMP ASSEMBLY
104745-3461

104745-3462
9 460 613 172

INJECTION-PUMP ASSEMBLY
104745-3462

104745-3463
9 460 613 447

INJECTION-PUMP ASSEMBLY
4D56

Mitsubishi

104745-3463
9 460 614 518
MD312885
INJECTION-PUMP ASSEMBLY
4D56
104745-3470

104745-3471
9 460 612 784
MD312886
INJECTION-PUMP ASSEMBLY
4D56
104745-3471
9 460 611 883
MD332819
INJECTION-PUMP ASSEMBLY
4D56
104745-3480
9 460 611 732
MD314198
INJECTION-PUMP ASSEMBLY
4D56
104745-3490

104745-3491
9 460 611 733

INJECTION-PUMP ASSEMBLY

Mitsubishi

104745-3491
9 460 611 604
MD314199
INJECTION-PUMP ASSEMBLY
4D56
Back to top
