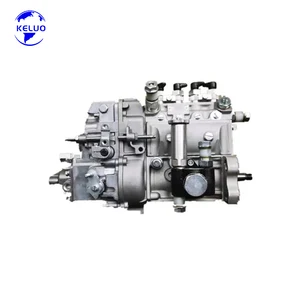

101402-8072 ZEXEL F 019 Z10 724 BOSCH INJECTION-PUMP ASSEMBLY f019z10724 1014028072 8973238372

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH F 019 Z10 724 f019z10724

ZEXEL 101402-8072 1014028072

ISUZU 8973238372 8973238372

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101402-8072 zexel genuine, new aftermarket engine parts with delivery

Service parts 101402-8072 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101041-8950

3. GOVERNOR 105411-2471

4. SUPPLY PUMP 105220-7560

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156643-3320

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105160-5241

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2) 18.1(185)

13. NOZZLE-HOLDER 105030-4750

14. NOZZLE

105025-3730

15. NOZZLE SET

Include in #1:

101402-8072 as INJECTION-PUMP ASSEMBLY

106684-4500 as _

Cross reference number

BOSCH F 019 Z10 724 f019z10724

ZEXEL 101402-8072 1014028072

ISUZU 8973238372 8973238372

Zexel num

Bosch num

Firm num

Name

101402-8072

F 019 Z10 724

8973238372 ISUZU

INJECTION-PUMP ASSEMBLY
4BG1-TCG- K 14BD INJECTION PUMP ASSY PE4AD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-4120

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 4.2 4.15 4.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 11.6

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 123.5 122.4 124.6

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Boost pressure kPa 82.6 82.6

Boost pressure mmHg 620 620

Injection quantity adjustment_02

Adjusting point -

Rack position 7.7+-0.5

Pump speed r/min 475 475 475

Average injection quantity mm3/st. 8.8 7.4 10.2

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point E

Rack position 11.8++

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 120 115 125

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Rack limit *

Boost compensator adjustment

Pump speed r/min 550 550 550

Rack position 10.1

Boost pressure kPa 33.3 29.3 37.3

Boost pressure mmHg 250 220 280

Boost compensator adjustment_02

Pump speed r/min 550 550 550

Rack position 10.65

Boost pressure kPa 69.3 62.6 76

Boost pressure mmHg 520 470 570

Test data Ex:

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Boost compensator stroke (6)Main spring setting (7)Rack difference between N = N1 and N = N2
----------
K=10 N1=1100r/min N2=550r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=70mm
----------
a=5deg+-5deg b=20deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery) (2)Normal
----------
aa=0r/min bb=1-0.5mm
----------
a=32deg+-5deg b=(55deg)

0000001501 TAMPER PROOF

Tamperproofing-equipped boost compensator cover installation procedure (A): After adjusting the boost compensator, assemble then tighten the bolts to remove the heads. (B): Specified torque (1)Before adjusting the governor and the boost compensator, tighten the screw to the specified torque. (Tightening torque T = T1 maximum) (2)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads. (Tightening torque T = T2)
----------
T1=2.5N-m(0.25kgf-m) T2=2.9~4.4N-m(0.3~0.45kgf-m)
----------

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=9deg
----------
a=(100deg)
