105952-1140 ZEXEL 9 420 610 597 BOSCH ACTUATOR 9420610597 1059521140 1910696567

Information actuator

BOSCH 9 420 610 597 9420610597

ZEXEL 105952-1140 1059521140

NISSAN-DIESEL 1910696567 1910696567

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1140 zexel genuine, new aftermarket engine parts with delivery

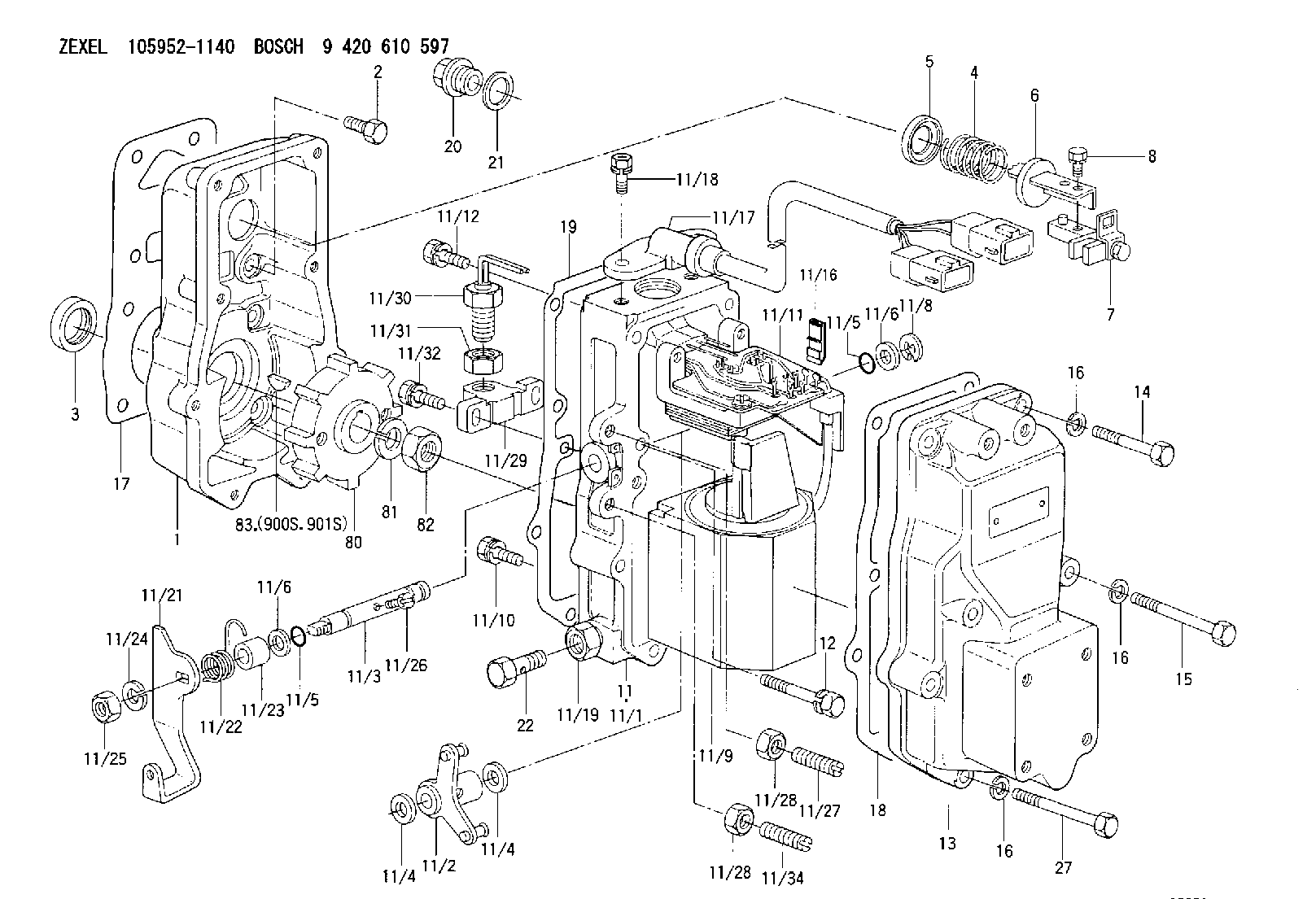

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-3020	ACTUATOR
11/1.	[1]	159562-0720	PLATE;GOV.
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159585-0720	LINEAR DC MOTOR
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	159566-2420	RACK SENSOR
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/16.	[1]	159565-2400	LIP
11/17.	[1]	159568-6821	CABLE SET
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159563-7120	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159563-2701	BRACKET
11/30.	[1]	479749-2400	PULSE GENERATOR
11/31.	[1]	159592-0300	UNION NUT
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-6300	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
80.	[1]	159564-8600	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108621-0000 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1140

9 420 610 597

1910696567 NISSAN-DIESEL

ACTUATOR
K 14JD ACTUATOR GOV
