105952-0660 ZEXEL 9 420 613 652 BOSCH ACTUATOR 9420613652 1059520660 me727170

Information actuator

BOSCH 9 420 613 652 9420613652

ZEXEL 105952-0660 1059520660

MITSUBISHI ME727170 me727170

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0660 zexel genuine, new aftermarket engine parts with delivery

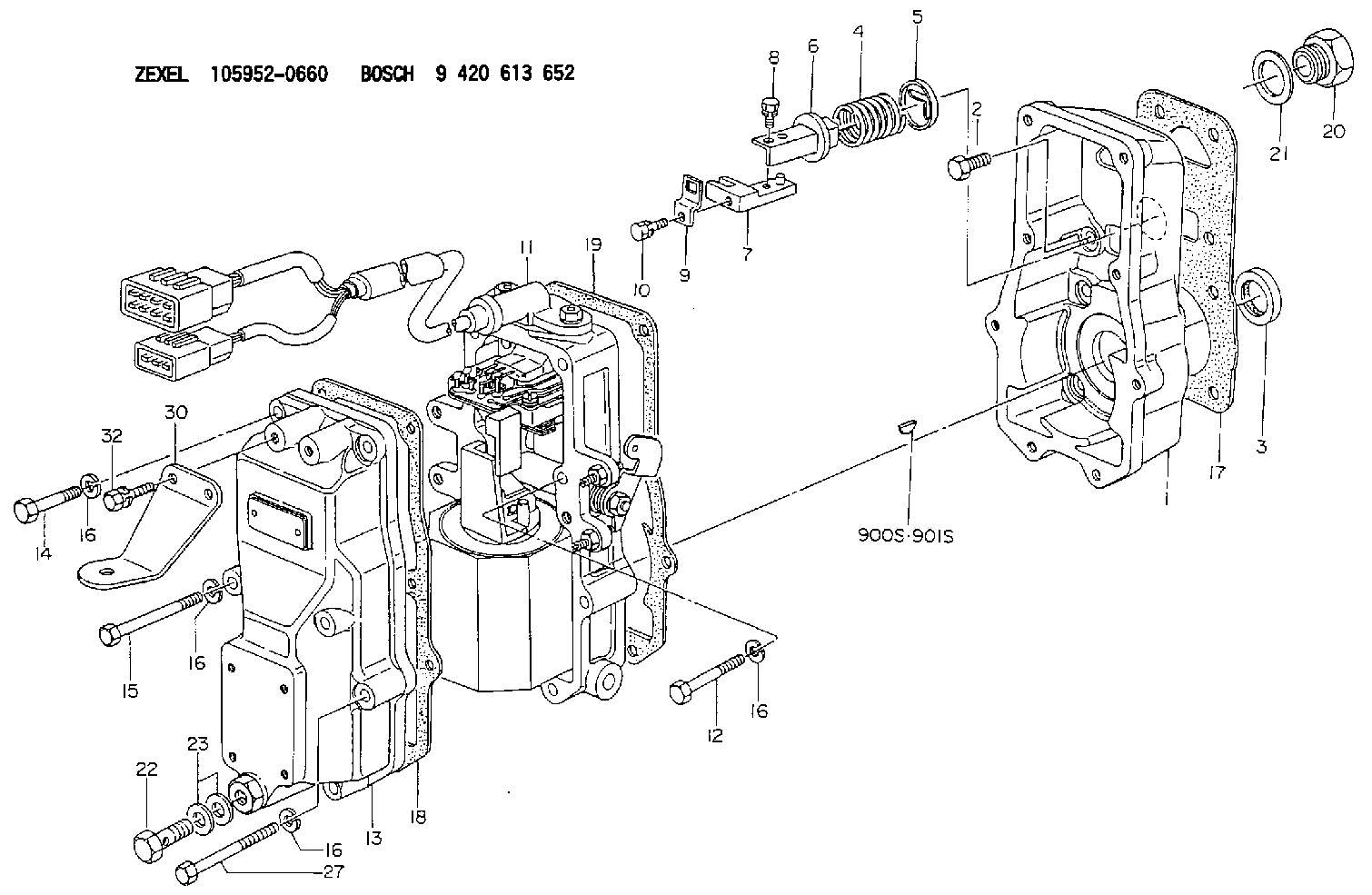

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-2222	ACTUATOR
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0920	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	155404-1700	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
30.	[1]	159564-5000	BRACKET
32.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106873-2260 as GOVERNOR

106873-2270

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0660

9 420 613 652

ME727170 MITSUBISHI

ACTUATOR
K

Information:

The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Nov2016
PROBLEM
Under some circumstances, certain 320D 2 Excavators can be hard to start when at normal operating temperature. When this problem occurs the machine displays the symptom of hard to start only when attempting to restart the engine 5 to 30 minutes after engine shut down.
Cold starting and general performance are not affected.
AFFECTED PRODUCT
Model Identification Number
320D 2 DFM00149-00558, 560-624, 638-946, 951-954, 975
DNP00252-00495, 497-503, 510, 513, 518
FKK00281-00360
GBA00132-01650
LMA00251-00828
TMF00192-00539
YEA00182-00555
320D 2GC JFM00175-01088
320D 2L EKT00152-00161
HDM00263-00265
KHR00103-00558
NBT00121-00845
ZCS00178-01339
320D 2L OEM P9X00101-00150, 158-162
PARTS NEEDED
Qty
Part Number Description
6 4545091 INJECTOR AS-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 2% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Before completing this rework, review the safety actions in the Operation and Maintenance Manual for the Excavator.
Remove the 398-1507 Injectors.
For detailed instructions on removing the injectors refer to Disassembly and Assembly, UENR0674, "Fuel Injection Lines - Remove" and "Fuel Injector - Remove".
Install the new 454-5091 Injectors.
For detailed instructions on installing the injectors refer to Disassembly and Assembly, UENR0674, "Fuel Injector - Install" and "Fuel Injection Lines - Install".
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-5000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 2.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
