105952-0621 ZEXEL F 019 Z3E 410 BOSCH ACTUATOR f019z3e410 1059520621

Information actuator

BOSCH F 019 Z3E 410 f019z3e410

ZEXEL 105952-0621 1059520621

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0621 zexel genuine, new aftermarket engine parts with delivery

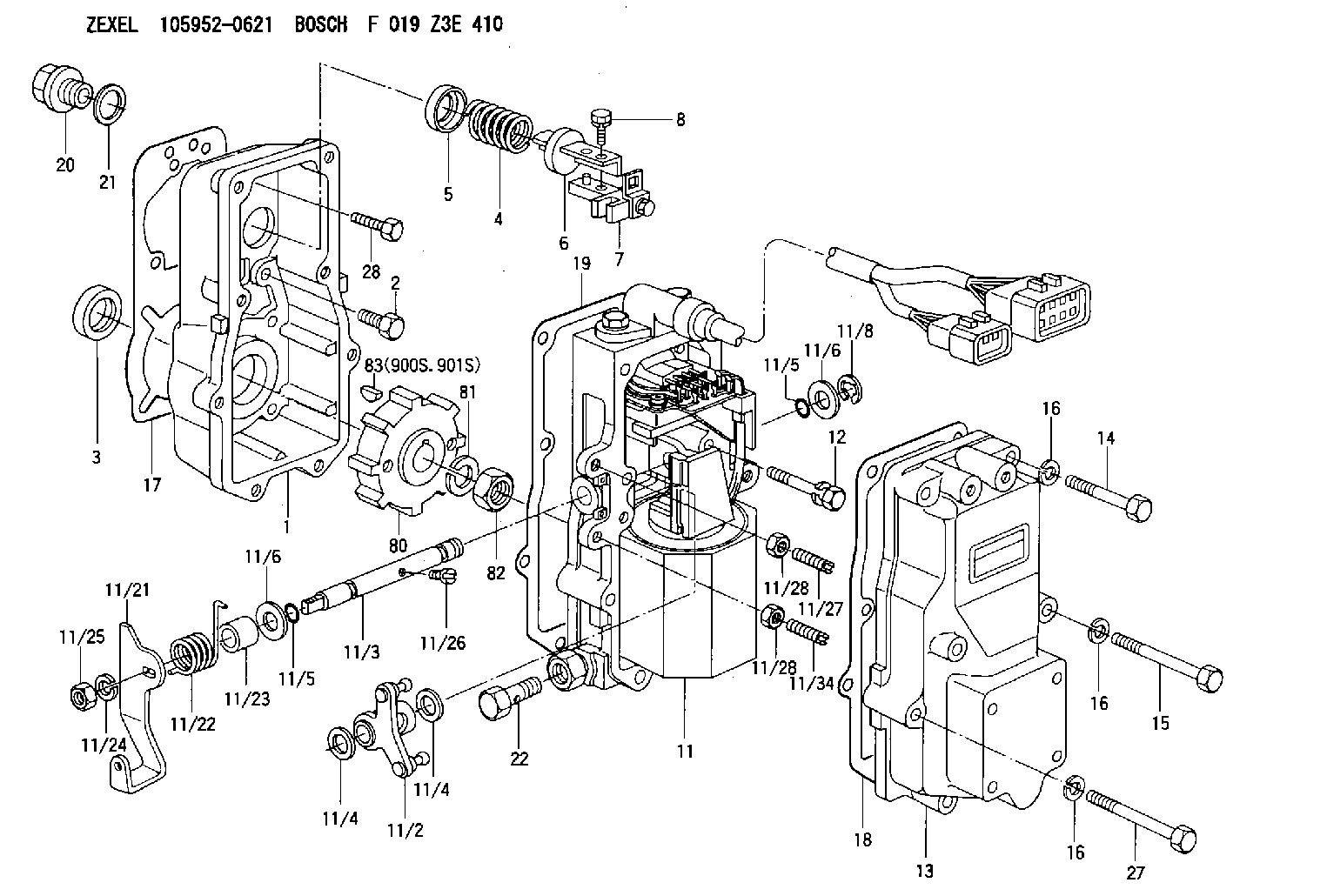

Scheme ###:

1.	[1]	159560-0820	GOVERNOR HOUSING
2.	[7]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-7922	ACTUATOR
11/1.	[1]	159562-0720	PLATE;GOV.
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159585-0720	LINEAR DC MOTOR
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	159566-0720	RACK SENSOR
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/16.	[1]	159565-2400	LIP
11/17.	[1]	159568-0721	CABLE SET
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159563-5200	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159563-2701	BRACKET
11/30.	[1]	479749-2400	PULSE GENERATOR
11/31.	[1]	159592-0300	UNION NUT
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154390-1600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-6300	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
28.	[1]	139006-5800	BLEEDER SCREW
80.	[1]	159584-0000	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106672-0092 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0621

F 019 Z3E 410

ACTUATOR
K

Information:

This Program can only be administeredafter a failure occurs. The decision whether to apply the Program is madeby the dealer. When reporting the repair, use "PS50780" as the Part numberand "7755" as the Group Number. Use "96" as the Warranty Claim DescriptionCode and use "Z" as the SIMS Description Code. The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst. This Revised Service Letter replacesthe April 2, 2004 (Revised April 2004) Service Letter. Changes have beenmade to the Affected Product.TERMINATION DATE
April 30, 2006PROBLEM
Failed injector and wiring harness need to bereplaced on certain C-9 Industrial Engines. The C-9 engine can developan injector misfire due to an open connection at the injector to harnessconnector. This misfire can be diagnosed with standard troubleshootingguide procedures.AFFECTED PRODUCT
Model Identification Number
C9 CLJ1-4259
12H 12500001-40AMZ1-496CBK1-353
330C B1K1-178B2L1-203B4N1-187BTM1-189CGZ1-511CYA1-287D3C1-231JAB1-626JCD1-292JNK1-245KDD1-580MCA1-427MKM1-308GAG1-329RBH1-233
330C L CAP1-1257DKY1-2011HAA1-393
D6R II AEM1-100AFM1-115BLE1-199BLT1-186BMK1-121BNL1-99BPM1-101BPP1-97BPS1-102BRJ1-116
D6R II LGP ACJ1-101ADE1-311BNC1-265BPZ1-142
D6R II XL AAX1-465BMJ1-130BMY1-297BRZ1-115CAD1-143FDT1-141
D6R II XW AEP1-223DAE1-129
470 7651-811
475 7671-824
MT765 AMS1-266
TK711 10100001-00191
TK721 10200001-00191
TK722 10300001-00193
TK732 10400185-00190
627G CEX187-296
637G CEH222-255PARTS NEEDED
Qty
Part Number
Description
1 1567106 Wiring Kit
1 1889865 Harness Assembly
1 2359651 Bolt - Socket
1 2360962 Injector GroupACTION REQUIRED
Replace the single failed injector with the new 2360962 Injector and the1889865 Wiring Harness Assembly. Refer to REHS1809 Special Instructionfor use of the 1567106 Wiring Kit.SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts Labor Hrs Parts Labor Hrs Parts Labor Hrs
0-5000
0-35 months 100% 2.0 0 0 0 0
This is a 2?hour job.PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warrantyparts handling.
