105952-0462 ZEXEL 9 420 612 715 BOSCH ACTUATOR 9420612715 1059520462 1157706270

Information actuator

BOSCH 9 420 612 715 9420612715

ZEXEL 105952-0462 1059520462

ISUZU 1157706270 1157706270

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0462 zexel genuine, new aftermarket engine parts with delivery

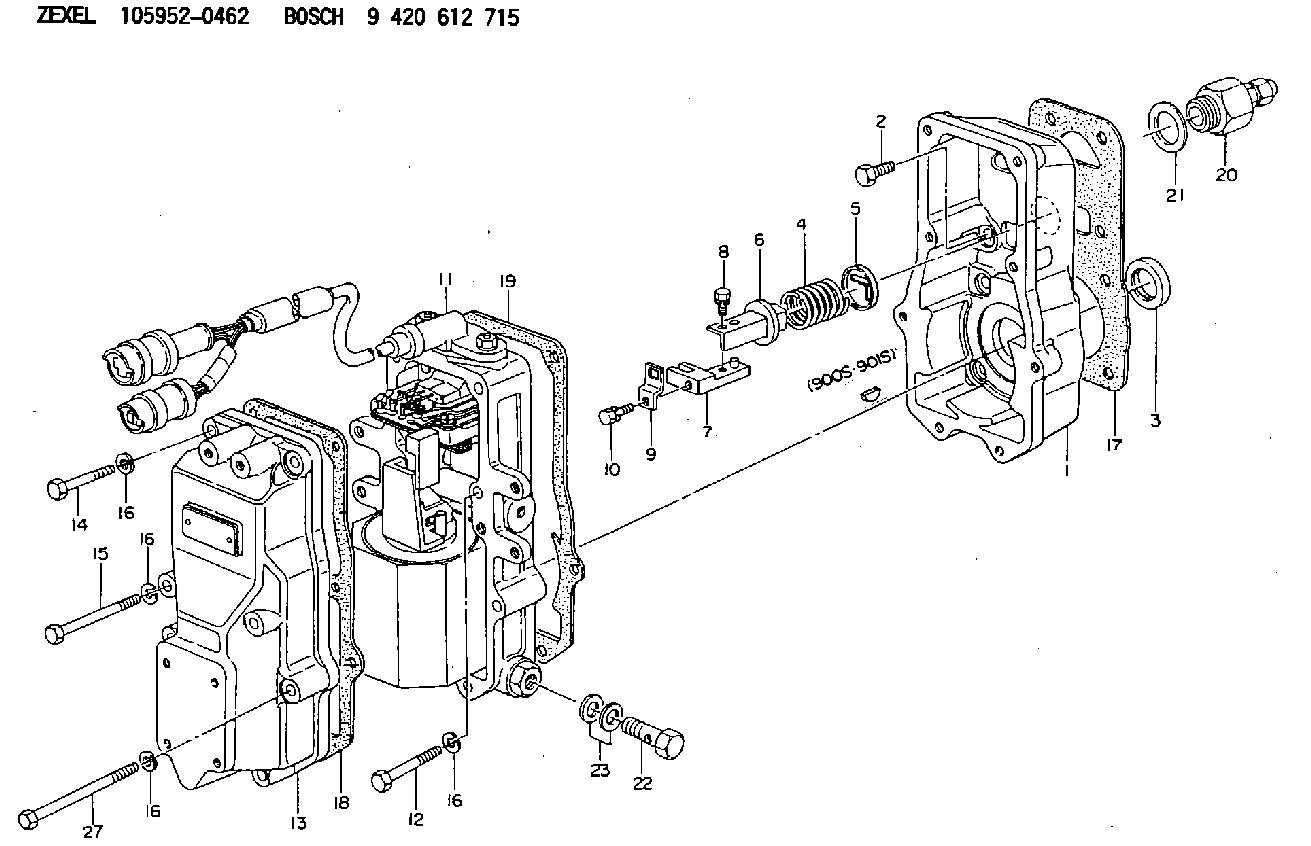

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-6522	ACTUATOR
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	029010-6550	BLEEDER SCREW
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-3120	STOPPING DEVICE
21.	[1]	026524-3040	GASKET
22.	[1]	159564-2400	EYE BOLT
23.	[2]	139514-0000	GASKET D19.2&14.2T1.0
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-1583 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0462

9 420 612 715

1157706270 ISUZU

ACTUATOR
K

Information:

Problem
The number-two fuel injection line on certain 775B Trucks and 992D Loaders may fail.
Affected Product
Model & Identification Number
775B (7XJ76-102)
992D (7MJ50-121, 7MG123)
Parts Needed
2 - 5P4939 Screw Assembly1 - 9Y3357 Clamp1 - 1029228 Clamp AssemblyAction Required
See attached rework procedure.
Service Claim Allowances
This is a .5-hour job.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach. (1-Rework Procedure)Rework Procedure
1. Using 2 - 5P4939 Screw Assemblies, install 1 - 9Y3357 Clamp and 1 - 1029228 Clamp Assembly on the number 2 and number 6 fuel lines. Tighten the screws to a torque of 2.25 .25 Nm (20 Lb. in.). Refer to Illustration 1.2. Remove the existing 2 - 1W9169 Clamps, 2 - 9N3388 Screws, 2 - 1W9167 Clamp Assemblies, 2 - 4B4274 Washers and 1 - 9Y7524 Plate on the number 2 and number 8 fuel lines. Refer to Illustration 2.
Illustration 1
Illustration 2
