105952-0461 ZEXEL 9 420 612 714 BOSCH ACTUATOR 9420612714 1059520461 1157703070




Information actuator

BOSCH 9 420 612 714 9420612714
ZEXEL 105952-0461 1059520461
ISUZU 1157703070 1157703070
105952-0461 ACTUATOR
Rating:
73
Buy ACTUATOR 105952-0461 zexel genuine, new aftermarket engine parts with delivery

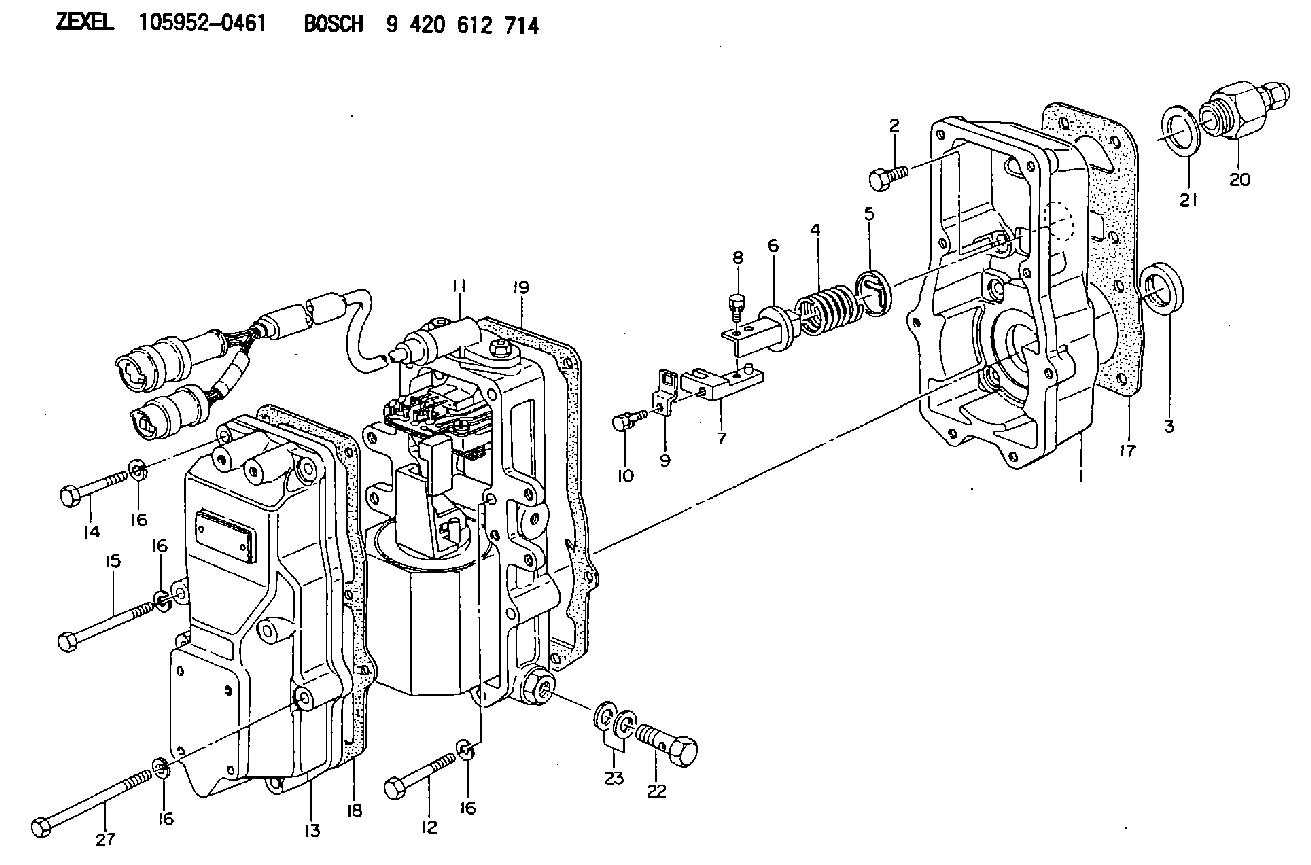

Scheme ###:

1. [1] 159560-0100 GOVERNOR HOUSING
2. [8] 139006-4100 BLEEDER SCREW
3. [1] 029621-7050 PACKING RING
4. [1] 159564-0000 COILED SPRING
5. [1] 159564-4000 SLOTTED WASHER
6. [1] 159564-4100 SLOTTED WASHER
7. [1] 159564-1720 CONNECTOR
8. [1] 020105-1240 BLEEDER SCREW M5P0.8L12
9. [1] 159564-0501 PLATE
10. [1] 020105-1240 BLEEDER SCREW M5P0.8L12
11. [1] 159567-6521 ACTUATOR
12. [2] 020106-4040 BLEEDER SCREW
13. [1] 159561-0400 GOVERNOR COVER
14. [4] 010006-7040 BLEEDER SCREW M6P1L70
15. [2] 029010-6550 BLEEDER SCREW
16. [8] 014110-6440 LOCKING WASHER
16. [8] 014110-6440 LOCKING WASHER
16. [8] 014110-6440 LOCKING WASHER
16. [8] 014110-6440 LOCKING WASHER
17. [1] 154371-5600 GASKET
18. [1] 154390-0400 GASKET
19. [1] 154390-0500 GASKET
20. [1] 153021-3120 STOPPING DEVICE
21. [1] 026524-3040 GASKET
22. [1] 159564-2400 EYE BOLT
23. [2] 139514-0000 GASKET D19.2&14.2T1.0
27. [2] 139006-1300 BLEEDER SCREW M6P1L76

Include in #1:

106671-1582 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105952-0461
105952-0462
9 420 612 714
1157703070  ISUZU
ACTUATOR
* K




Information:

Termination Date
October 31, 1993Problem
Certain 2S7264 and 3S1467 Fuel Injection Pump Assemblies need to be removed from parts stock.
Action Required
Remove all 2S7264 and 3S1467 Fuel Injection Pump Assemblies from parts stock with date codes of December 1992 through March 1993. The date code appears at the bottom of the part number label on the pump box. The first two numbers indicate the month and the next two numbers indicate the year as shown in the example below:
Service Claim Allowances
Submit one claim for all 2S7264 and 3S1467 Fuel Injection Pump Assemblies removed from parts stock.
US and Canadian Dealers Only - When submitting a parts stock claim use 99Z00007 in the Product Identification Number Field.
Parts Disposition
U.S. And Canadian Dealers
Return all 2S7264 and 3S1467 Fuel Injection Pump Assemblies that are removed from parts stock and a copy of the claim to:
Caterpillar Inc.
Memory Lane
B Receiving
York, PA 17402
Attention: Quality Dept./PI7318
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Have questions with 105952-0461?





Group cross 105952-0461 ZEXEL

Mitsubishi

9 420 612 203
ME723902
ACTUATOR
F 019 Z5E 963
ME723919
ACTUATOR

Nissan-Diesel


1910696509
ACTUATOR
F 019 Z3E 398

ACTUATOR

Mitsubishi

F 019 Z5E 964
ME726335
ACTUATOR

Nissan-Diesel


1910696510
ACTUATOR


ACTUATOR
9 420 610 807

ACTUATOR
9 420 610 808

ACTUATOR
9 420 614 850

ACTUATOR

Isuzu

105952-0461

105952-0462
9 420 612 714
1157703070
ACTUATOR
9 420 612 715
1157706270
ACTUATOR



Nissan-Diesel


1910695500
ACTUATOR
F 019 Z4E 046

ACTUATOR
