Information supply pump
BOSCH
9 440 610 082
9440610082
ZEXEL
105248-0350
1052480350
ISUZU
5157500520
5157500520
Rating:

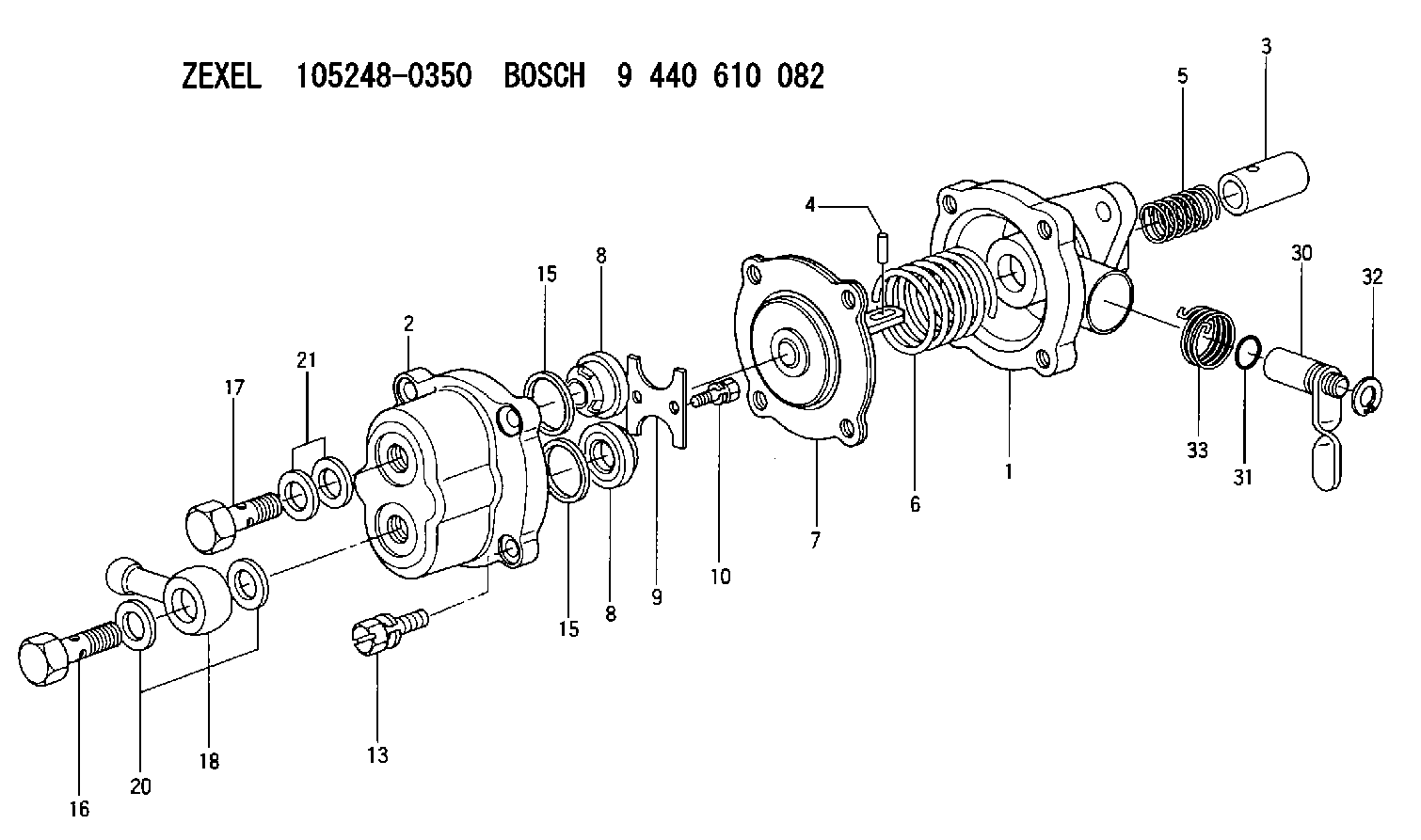

Scheme ###:
| 1. | [1] | 152004-1900 | PUMP HOUSING |
| 2. | [1] | 152020-0900 | COVER |
| 3. | [1] | 152111-1700 | TAPPET |
| 4. | [1] | 029403-0240 | BEARING PIN |
| 5. | [1] | 152110-1000 | COILED SPRING |
| 6. | [1] | 152133-0100 | COILED SPRING |
| 7. | [1] | 152130-0720 | DIAPHRAGM |
| 8. | [2] | 152119-1320 | VALVE BODY |
| 8. | [2] | 152119-1320 | VALVE BODY |
| 9. | [1] | 152140-0200 | RETAINER |
| 10. | [2] | 020104-0840 | BLEEDER SCREW |
| 13. | [4] | 020105-1640 | BLEEDER SCREW M5P0.8L16 |
| 15. | [2] | 029341-4070 | GASKET |
| 15. | [2] | 029341-4070 | GASKET |
| 16. | [1] | 029730-8010 | EYE BOLT |
| 17. | [1] | 029730-8010 | EYE BOLT |
| 18. | [1] | 152307-0200 | JOINT CONNECTION |
| 20. | [2] | 029330-8080 | GASKET |
| 21. | [2] | 029330-8080 | GASKET |
| 30. | [1] | 152210-0620 | CONTROL LEVER |
| 31. | [1] | 029630-8080 | O-RING |
| 32. | [1] | 152210-0500 | LOCKING WASHER |
| 33. | [1] | 152210-2100 | COILED SPRING |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105248-0350
9 440 610 082
5157500520 ISUZU
SUPPLY PUMP
K 14GC FEED PUMP F/P
K 14GC FEED PUMP F/P
