Information supply pump
BOSCH
9 440 610 317
9440610317
ZEXEL
105237-4960
1052374960
ISUZU
1157501610
1157501610
Rating:

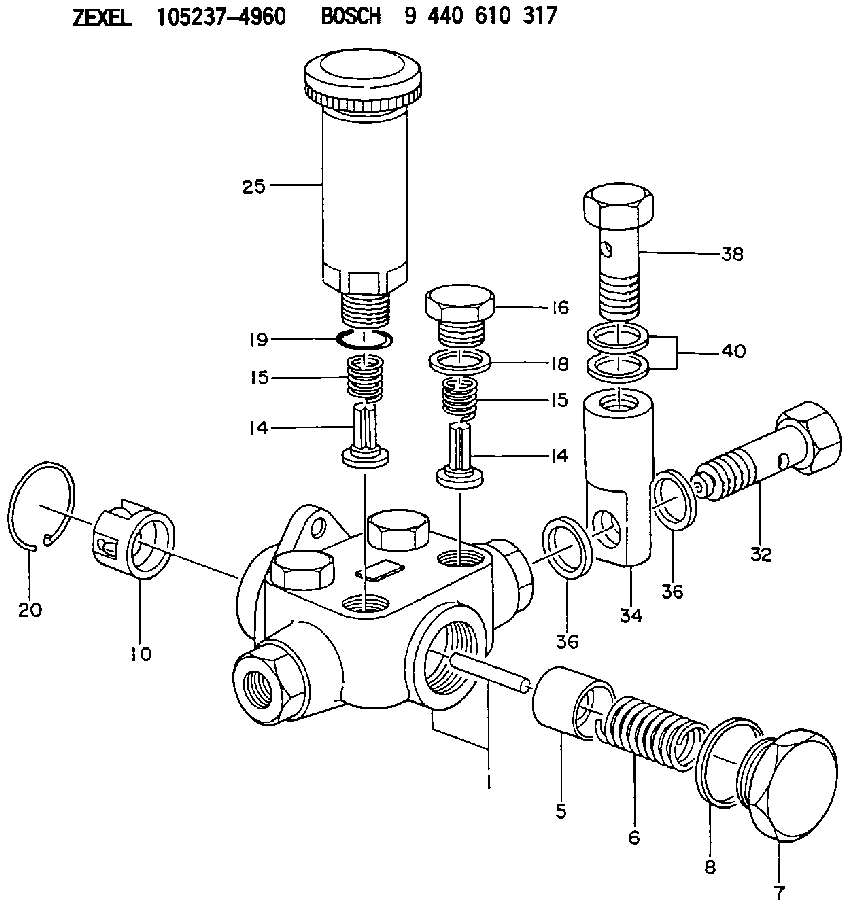

Scheme ###:
| 1. | [1] | 152004-3720 | PUMP HOUSING |
| 5. | [1] | 152100-1120 | PUMP PLUNGER |
| 6. | [1] | 152102-1300 | COMPRESSION SPRING |
| 7. | [1] | 152105-1500 | CAPSULE |
| 8. | [1] | 029332-6030 | GASKET |
| 10. | [1] | 152111-3222 | TAPPET |
| 14. | [4] | 152115-0200 | VALVE BODY |
| 14. | [4] | 152115-0200 | VALVE BODY |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 16. | [3] | 152117-0400 | CAPSULE |
| 18. | [3] | 029331-6030 | GASKET |
| 19. | [1] | 029631-6060 | O-RING |
| 20. | [1] | 152121-0400 | LOCKING WASHER |
| 25. | [1] | 152200-6720 | HAND PRIMER |
| 32. | [1] | 139814-0000 | EYE BOLT |
| 34. | [1] | 152308-2700 | INLET UNION |
| 36. | [2] | 139514-0000 | GASKET D19.2&14.2T1.0 |
| 36. | [2] | 139514-0000 | GASKET D19.2&14.2T1.0 |
| 38. | [1] | 139814-0000 | EYE BOLT |
| 40. | [2] | 139514-0000 | GASKET D19.2&14.2T1.0 |
