Information supply pump
BOSCH
9 440 610 765
9440610765
ZEXEL
105237-1790
1052371790
Rating:

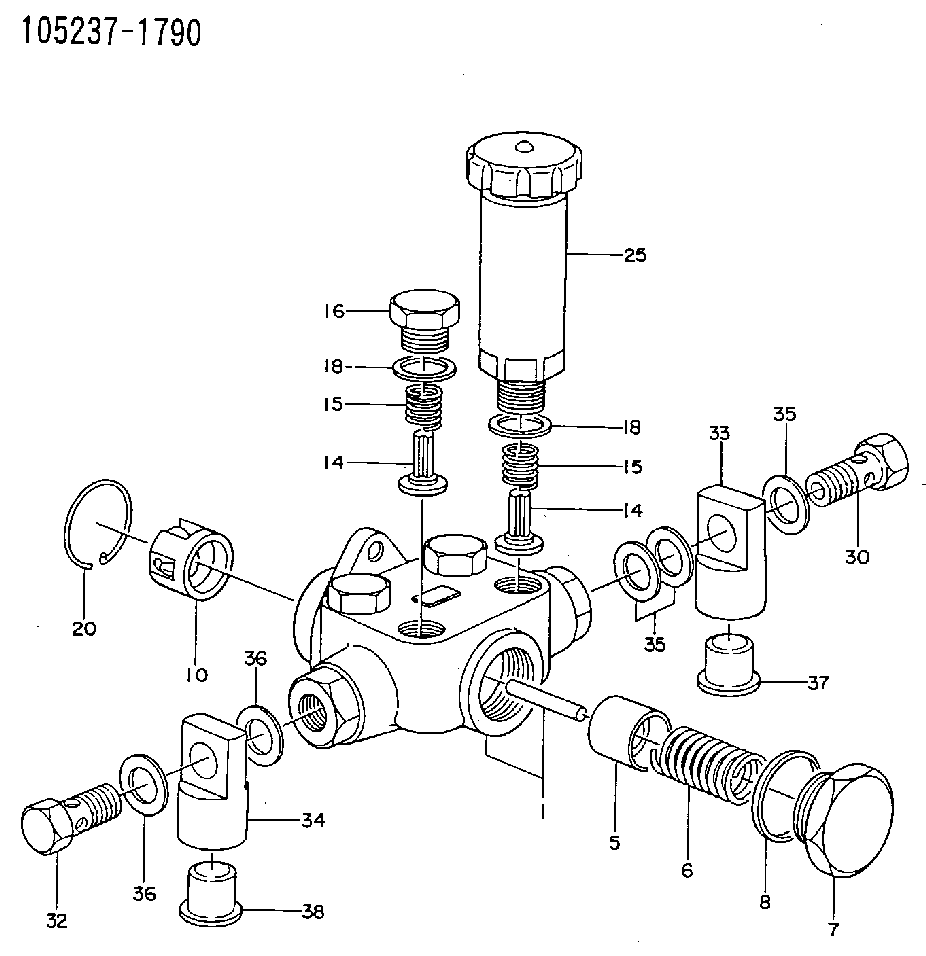

Scheme ###:
| 1. | [1] | 152000-9720 | PUMP HOUSING |
| 5. | [1] | 152100-1120 | PUMP PLUNGER |
| 6. | [1] | 152102-1300 | COMPRESSION SPRING |
| 7. | [1] | 152105-1500 | CAPSULE |
| 8. | [1] | 029332-6030 | GASKET |
| 10. | [1] | 152111-3221 | TAPPET |
| 10/2. | [1] | 152112-0500 | ROLLER |
| 10/3. | [1] | 152113-1000 | BEARING PIN |
| 10/4. | [2] | 152114-1600 | SLIDER |
| 14. | [4] | 152115-0200 | VALVE BODY |
| 14. | [4] | 152115-0200 | VALVE BODY |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 16. | [3] | 152117-0100 | CAPSULE |
| 18. | [4] | 029331-6030 | GASKET |
| 18. | [4] | 029331-6030 | GASKET |
| 20. | [1] | 152121-0400 | LOCKING WASHER |
| 25. | [1] | 152200-2120 | HAND PRIMER |
| 30. | [1] | 152300-4020 | EYE BOLT |
| 32. | [1] | 131601-3700 | BLEEDER SCREW |
| 33. | [1] | 139814-1400 | INLET UNION |
| 34. | [1] | 139814-1400 | INLET UNION |
| 35. | [3] | 029331-4230 | GASKET |
| 35. | [3] | 029331-4230 | GASKET |
| 36. | [2] | 029331-4230 | GASKET |
| 36. | [2] | 029331-4230 | GASKET |
Include in #1:
106672-9640
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
3306 Engine Shown1. Turn the fuel supply line valve to the "OFF" position.2. Remove the clamp that holds fuel drain line (1) to the fuel transfer pump. Remove fuel lines (4) and (5).3. Remove bolts (2) and fuel transfer pump (3) from the fuel injection pump housing. Remove the O-ring seal from the fuel transfer pump if necessary.4. Make sure the O-ring seal is in position on the fuel transfer pump. Put the fuel transfer pump in position on the fuel injection pump housing. Install bolts (2) that hold the fuel transfer pump to the fuel injection pump housing.5. Install the clamp that holds fuel drain line (1) to the fuel transfer pump. Install fuel line (4) between the fuel transfer pump and the fuel filter base. Install fuel line (5) between the fuel transfer pump and the fuel priming pump.6. Turn the fuel supply line valve to the "ON" position.Disassemble Fuel Transfer Pump
Start By:a. remove fuel transfer pump
Cover (1) is under spring force. To prevent possible personal injury, carefully remove bolts (2) and cover (1).
1. Remove bolts (2) and cover (1) from the housing. 2. Remove O-ring seals (3) and (4) from the cover.3. Remove valve assembly (5) from the cover. 4. Remove spring (6) from the housing. 5. Remove piston (12) from sleeve (10). Remove washer (15), valve assembly (14) and seal (13) from piston (12).6. Remove sleeve (10) from housing (7). Remove O-ring seal (11) from the sleeve.7. Remove guide and tappet assembly (9) and seal (8) from housing (7). 8. Remove two screws (16), cover (17) and the seal from housing (7). 9. Remove valve assembly (18) from housing (7).Assemble Fuel Transfer Pump
Be sure all parts of the fuel transfer pump are clean before assembly.
1. Install valve assembly (2) in housing (1) as shown. 2. Put clean diesel fuel on seal (2). Put seal (3) in position on cover (4) as shown. Put cover (4) on housing (1). Install the screws that hold the cover. 3. Put clean diesel fuel on seal (5). Put seal (5) and guide and tappet assembly (6) in position in housing (1).4. Put clean diesel fuel on O-ring seal (8). Put O-ring seal (8) in position on sleeve (7). Install sleeve (7) in housing (1).5. Install piston (9) in sleeve (7).6. Put clean diesel fuel on seal (10). Put seal (10), valve assembly (11) and washer (12) in position in piston (7). 7. Put clean diesel fuel on O-ring seals (13) and (14). Put the O-ring seals and valve assembly (15) in position in cover (16) as shown. 8. Put spring (17) and cover (16) in position on housing (1). Install the bolts that hold the spring and cover.End By:a. install fuel transfer pump
