Information supply pump
BOSCH
9 440 610 971
9440610971
ZEXEL
105235-1761
1052351761
Rating:

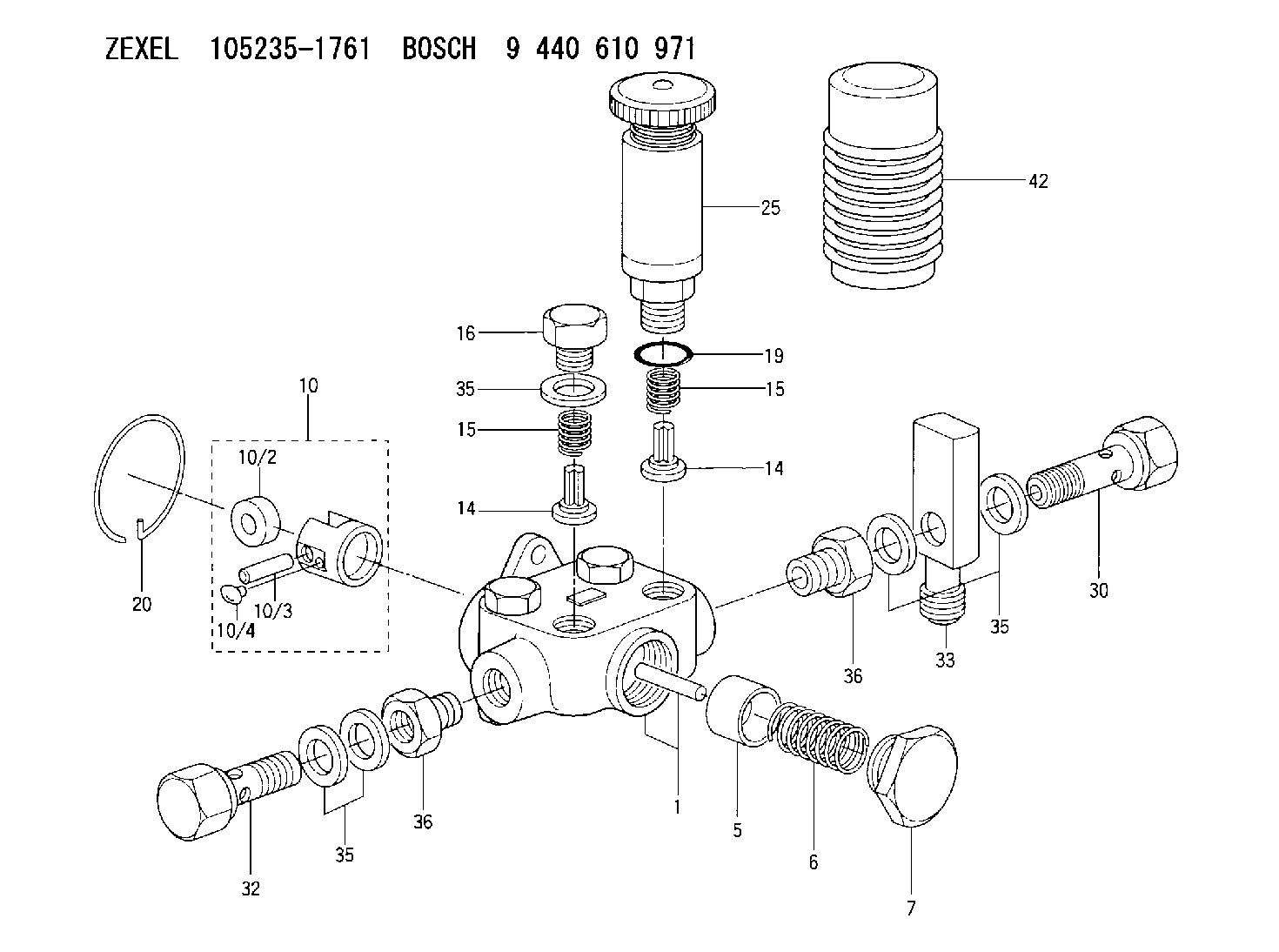

Scheme ###:
| 1. | [1] | 152002-2220 | PUMP HOUSING |
| 5. | [1] | 152100-1120 | PUMP PLUNGER |
| 6. | [1] | 152104-0400 | COMPRESSION SPRING |
| 7. | [1] | 152105-1500 | CAPSULE |
| 10. | [1] | 152111-4620 | TAPPET |
| 10/2. | [1] | 152112-0800 | ROLLER |
| 10/3. | [1] | 152113-1300 | BEARING PIN |
| 10/4. | [2] | 152114-1600 | SLIDER |
| 14. | [4] | 152115-0500 | VALVE BODY |
| 14. | [4] | 152115-0500 | VALVE BODY |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 15. | [4] | 152116-0200 | COILED SPRING |
| 16. | [3] | 152117-0400 | CAPSULE |
| 19. | [1] | 139716-0000 | O-RING |
| 20. | [1] | 152121-0200 | LOCKING WASHER |
| 25. | [1] | 152200-6120 | HAND PRIMER |
| 30. | [1] | 152300-4020 | EYE BOLT |
| 32. | [1] | 029731-4680 | EYE BOLT |
| 33. | [1] | 029711-4430 | INLET UNION |
| 35. | [5] | 029341-4130 | GASKET D20&13.8T2* |
| 35. | [5] | 029341-4130 | GASKET D20&13.8T2* |
| 35. | [5] | 029341-4130 | GASKET D20&13.8T2* |
| 36. | [2] | 132400-0200 | ADAPTOR |
| 36. | [2] | 132400-0200 | ADAPTOR |
| 42. | [1] | 152320-0100 | COVER |
Include in #1:
103662-3211
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
