Information supply pump
BOSCH
9 440 610 132
9440610132
ZEXEL
105235-1451
1052351451
Rating:

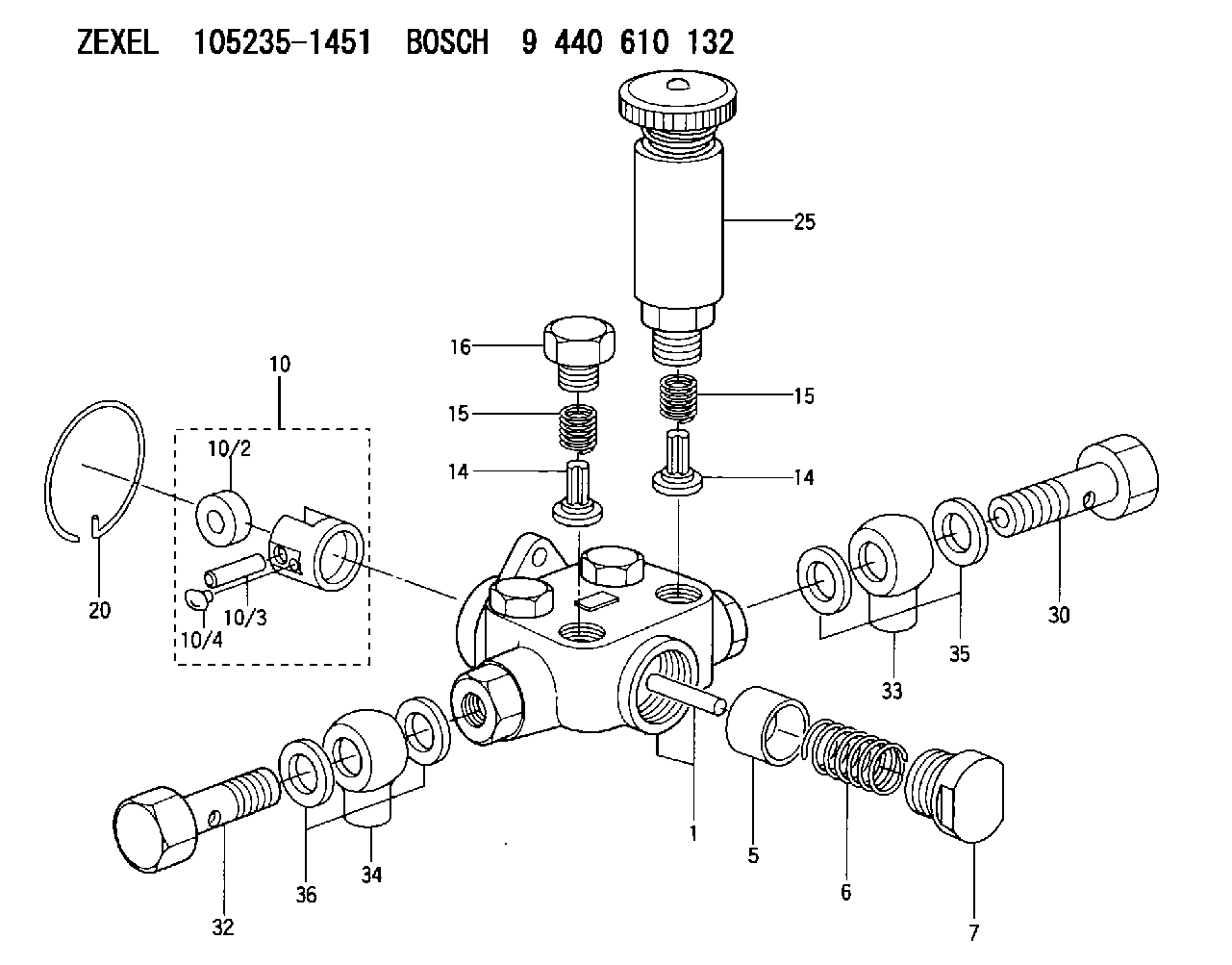

Scheme ###:
1. | [1] | 152002-1220 | PUMP HOUSING |
5. | [1] | 152100-1120 | PUMP PLUNGER |
6. | [1] | 152104-0200 | COMPRESSION SPRING |
7. | [1] | 152105-0400 | CAPSULE |
10. | [1] | 152111-1920 | TAPPET |
10/2. | [1] | 152112-0100 | ROLLER |
10/3. | [1] | 152113-0700 | BEARING PIN |
10/4. | [2] | 152114-0400 | SLIDER |
14. | [4] | 152115-0200 | VALVE BODY |
14. | [4] | 152115-0200 | VALVE BODY |
15. | [4] | 152116-0200 | COILED SPRING |
15. | [4] | 152116-0200 | COILED SPRING |
16. | [3] | 152117-0100 | CAPSULE |
20. | [1] | 152121-0200 | LOCKING WASHER |
25. | [1] | 152200-5620 | HAND PRIMER |
30. | [1] | 152301-0820 | EYE BOLT |
32. | [1] | 029731-8210 | EYE BOLT |
33. | [1] | 029701-8180 | INLET UNION |
34. | [1] | 029701-8180 | INLET UNION |
35. | [4] | 029331-8050 | GASKET |
36. | [2] | 132400-0900 | ADAPTOR |
Include in #1:
103664-0850
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
