105235-1390 ZEXEL 9 440 610 996 BOSCH SUPPLY PUMP 9440610996 1052351390




Information supply pump

BOSCH 9 440 610 996 9440610996
ZEXEL 105235-1390 1052351390
105235-1390 SUPPLY PUMP
Rating:
70
Buy SUPPLY PUMP 105235-1390 zexel genuine, new aftermarket engine parts with delivery

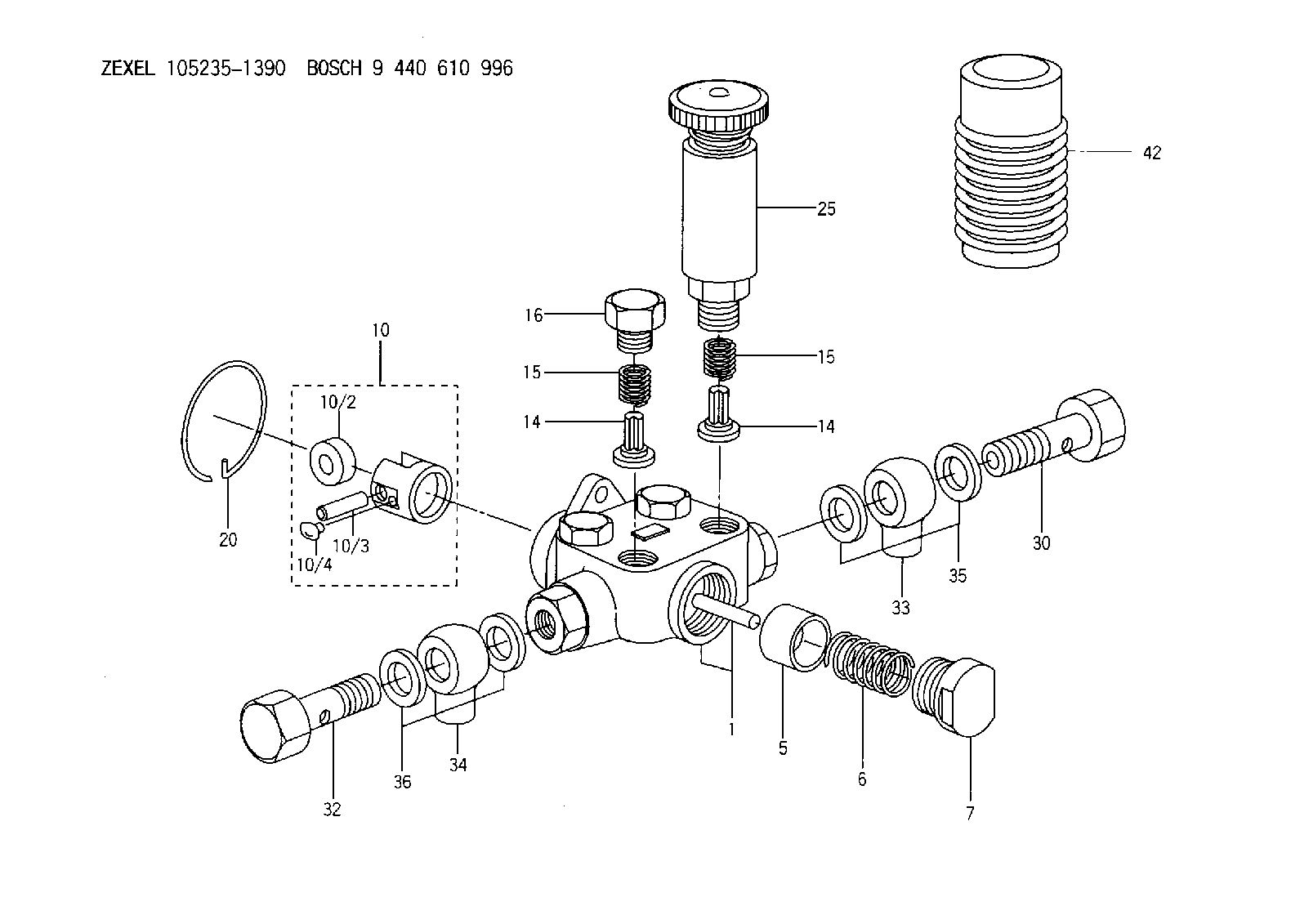

Scheme ###:

1. [1] 152002-1220 PUMP HOUSING
5. [1] 152100-1120 PUMP PLUNGER
6. [1] 152104-0100 COMPRESSION SPRING
7. [1] 152105-0400 CAPSULE
10. [1] 152111-1920 TAPPET
10/2. [1] 152112-0100 ROLLER
10/3. [1] 152113-0700 BEARING PIN
10/4. [2] 152114-0400 SLIDER
14. [4] 152115-0200 VALVE BODY
14. [4] 152115-0200 VALVE BODY
15. [4] 152116-0200 COILED SPRING
15. [4] 152116-0200 COILED SPRING
16. [3] 152117-0100 CAPSULE
20. [1] 152121-0200 LOCKING WASHER
25. [1] 152200-1120 HAND PRIMER
30. [1] 152301-0620 EYE BOLT
32. [1] 029731-8210 EYE BOLT
33. [1] 029701-8060 INLET UNION
34. [1] 029701-8060 INLET UNION
35. [4] 029331-8050 GASKET
36. [2] 132400-0900 ADAPTOR
42. [1] 152320-0100 COVER

Include in #1:

103664-0800 as SUPPLY PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
105235-1390
9 440 610 996
NP-FP/KD-Z

SUPPLY PUMP
* K 14GC FEED PUMP F/P




Information:

(1) Crossbar (from 8B7548 Puller).(2) Spacer plate.(3) S1589 Bolt with two 1S379 Washers.(4) 1D4595 Bolt.(5) 3H465 Plate.(6) 1P2403 Dial Indicator.(7) 1P2394 Adapter Plate.(8) 1P2402 Gauge Body.Make reference to Cylinder Liner Projection in Testing and Adjusting for the complete procedure.1. Install gasket and spacer plate (2) with bolts (3) and two 1S379 Washers. Tighten bolts (3) evenly in four steps: 1st step ... 14 N m (10 lb ft)2nd step ... 35 N m (25 lb ft)3rd step ... 70 N m (50 lb ft)4th step ... 95 N m (70 lb ft)2. Install tools as shown. Tighten bolts (4) evenly in four steps: 1st step ... 7 N m (5 lb ft)2nd step ... 20 N m (15 lb ft)3rd step ... 35 N m (25 lb ft)4th step ... 70 N m (50 lb ft)3. Measure cylinder liner projection with dial indicator (6) in 1P2402 Gauge Body (8) as shown. Measure at four places around each cylinder liner near the clamped area. Cylinder liner projection measurements for any cylinder liner must be ... 0.033 to 0.175 mm (.0013 to .0069 in)Maximum permissible difference between all four measurements ... 0.05 mm (.002 in)Maximum permissible difference between average projection of any two cylinder liners next to each other ... 0.05 mm (.002 in)Maximum permissible difference between average projection of all cylinder liners under one cylinder head ... 0.08 mm (.003 in) If liner projection is not correct, turn the liner to a new position within the bore. If projection can not be corrected this way, move the liner to a different bore. If the projection can not be corrected this way, make reference to Special Instruction, Form No. FMO55228 for complete instructions on the use of 8S3140 Counterboring Tool Arrangement. 4. Minimum permissible depth to machine counterbore to adjust cylinder liner projection ... 0.76 mm (.030 in) Maximum permissible depth to machine counterbore to adjust cylinder liner projection ... 1.14 mm (.045 in) install a 0.76 mm (.030 in) shim plus any added shims necessary to get the correct cylinder liner projection. Be sure that the 0.76 mm (.030 in) shim is directly under the cylinder liner flange.

Have questions with 105235-1390?





Group cross 105235-1390 ZEXEL

9 440 610 753
NP-FP/KD-Z

SUPPLY PUMP

Shinko-Engin.

9 440 610 905
NP-FP/KD-Z
240090230
SUPPLY PUMP

Mitsubishi


0424500090

Mitsubishi-Heav


0424500090

9 440 610 723


9 440 610 135
NP-FP/KD-Z

SUPPLY PUMP
105235-1390
9 440 610 996
NP-FP/KD-Z

SUPPLY PUMP
