105220-6140 ZEXEL 9 440 610 445 BOSCH SUPPLY PUMP 9440610445 1052206140 8970744430

Information supply pump

BOSCH 9 440 610 445 9440610445

ZEXEL 105220-6140 1052206140

ISUZU 8970744430 8970744430

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy SUPPLY PUMP 105220-6140 zexel genuine, new aftermarket engine parts with delivery

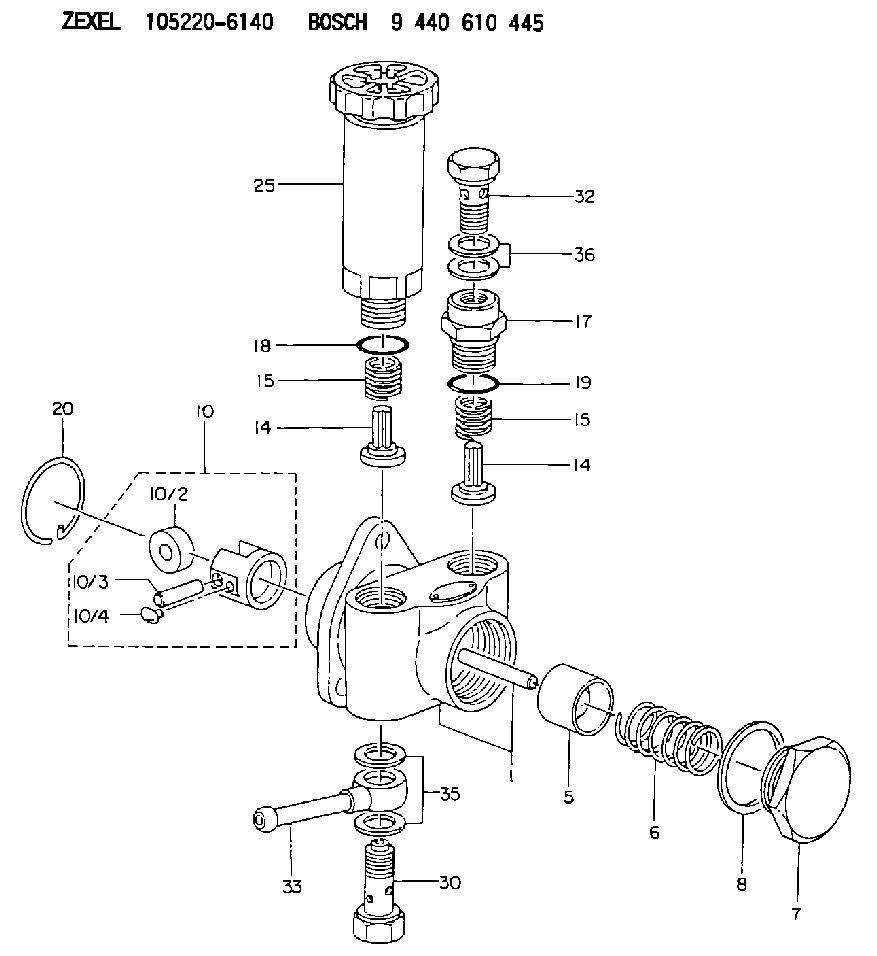

Scheme ###:

1.	[1]	152003-0720	PUMP HOUSING
5.	[1]	152100-1120	PUMP PLUNGER
6.	[1]	152102-0400	COMPRESSION SPRING
7.	[1]	152105-1600	CAPSULE
8.	[1]	029332-6030	GASKET
10.	[1]	152111-2820	TAPPET
10/2.	[1]	152112-0100	ROLLER
10/3.	[1]	152113-0700	BEARING PIN
10/4.	[2]	152114-0400	SLIDER
14.	[2]	152115-0200	VALVE BODY
14.	[2]	152115-0200	VALVE BODY
15.	[2]	152116-0200	COILED SPRING
15.	[2]	152116-0200	COILED SPRING
17.	[1]	152118-0900	ADAPTOR
18.	[1]	029631-6060	O-RING
19.	[1]	029631-6060	O-RING
20.	[1]	152121-0200	LOCKING WASHER
25.	[1]	152200-5420	HAND PRIMER
30.	[1]	152300-5620	EYE BOLT
32.	[1]	029731-4580	EYE BOLT
33.	[1]	029711-4460	INLET UNION
35.	[2]	029341-4080	GASKET
36.	[2]	029341-4080	GASKET

Include in #1:

101402-4221 as SUPPLY PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

105220-6140
105220-7380

9 440 610 445

8970744430 ISUZU

SUPPLY PUMP
* K 14GC F/P

Information:

Rework Procedure
Replacement of Diesel Oxidation Catalyst (DOC)
1. Remove three 222-8823 Bolts and three 232-3209 Washers to separate the 360-8875 Bellows Tube Assembly from the 360-8849 Catalytic Converter Group. Refer to Image1.1.1.
Image1.1.1
2. Loosen the clamp. Remove the DOC from the Catalytic Converter Group. Refer to Images1.2.1 and 1.2.2.
Image1.2.1
Image1.2.2
3. Remove the ring from the DOC. Remove the clamp from the catalytic converter. Refer to Images1.3.1 and 1.3.2.
Image1.3.1
Image1.3.2
4. Remove the five screws and five washers from the insulation around the DOC. Remove insulation from the DOC. The insulation will be reused. Refer to Images1.4.1 and 1.4.2.
Image1.4.1
Image1.4.2
5. Install the insulation that was removed from the old DOC on the new DOC. Refer to Image1.5.1.
Image1.5.1
6. Clean the sealing surface of the DOC flange. Clean the sealing surface of the flange on the catalytic converter group. Clean the ring that was removed from the old DOC. Refer to Images1.6.1, 1.6.2, and 1.6.3
Image1.6.1
Image1.6.2
Image1.6.3
7. Apply seal paste to both sides of the ring, to the flange surfaces of the new DOC, and the catalytic converter. Refer to Image1.7.1.
Note: Make sure to cover the complete ring and flange surfaces with seal paste when applying it.
Image1.7.1
8. Place the ring on the flange of the new DOC. Position the new DOC against the catalytic converter. Refer to Images1.8.1 and 1.8.2.
Image1.8.1
Image1.8.2
9. Orient the DOC so that it will line up correctly with the bellows tube. Install and orient the clamp in order to hold the new DOC in place. Apply sealing paste or high temperature grease to the bolt of the clamp. Tighten the clamp. Then reattach the DOC to the bellows tube. Refer to Image1.9.1.
Image1.9.1
10. Tap the clamp around the circumference to properly seat the clamp. Tighten the clamp to a specified torque of 18 N.m (13.3 ft-lb). Apply sealing paste or high temperature grease to the three 222-8823 Bolts to assemble the bellows. Refer to Image1.10.1.
Image1.10.1
11. Please write down the number of active regenerations. This number can be found in the Monitor Service Menu in the Aftertreatment Status section. Please enter this information to the claim story when you submit your claim. Refer to Image1.11.1.
Image1.11.1
