105220-5680 ZEXEL 9 440 611 017 BOSCH SUPPLY PUMP 9440611017 1052205680 16640z5517

Information supply pump

BOSCH 9 440 611 017 9440611017

ZEXEL 105220-5680 1052205680

NISSAN-DIESEL 16640Z5517 16640z5517

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy SUPPLY PUMP 105220-5680 zexel genuine, new aftermarket engine parts with delivery

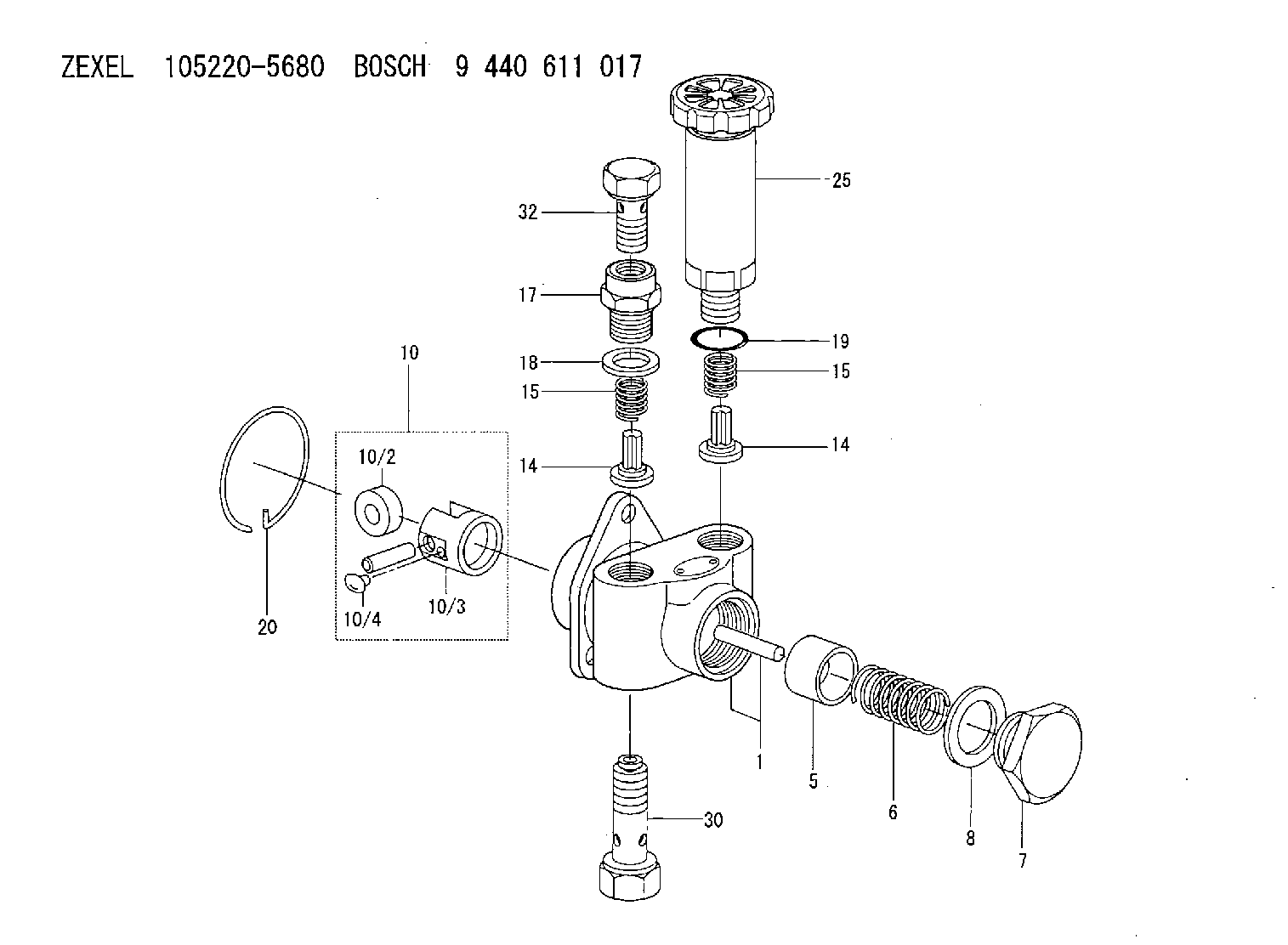

Scheme ###:

1.	[1]	152003-5520	PUMP HOUSING
5.	[1]	152100-1120	PUMP PLUNGER
6.	[1]	152102-0400	COMPRESSION SPRING
7.	[1]	152105-1500	CAPSULE
8.	[1]	029332-6030	GASKET
10.	[1]	152111-2820	TAPPET
10/2.	[1]	152112-0100	ROLLER
10/3.	[1]	152113-0700	BEARING PIN
10/4.	[2]	152114-0400	SLIDER
14.	[2]	152115-0100	VALVE BODY
14.	[2]	152115-0100	VALVE BODY
15.	[2]	152116-0200	COILED SPRING
15.	[2]	152116-0200	COILED SPRING
17.	[1]	152118-0900	ADAPTOR
18.	[1]	029331-6030	GASKET
19.	[1]	029631-6060	O-RING
20.	[1]	152121-0200	LOCKING WASHER
25.	[1]	152200-5620	HAND PRIMER
30.	[1]	152300-5020	EYE BOLT
32.	[1]	029731-4680	EYE BOLT

Include in #1:

101691-9780 as SUPPLY PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

105220-5680

9 440 611 017

16640Z5517 NISSAN-DIESEL

SUPPLY PUMP
* K 14GC FEED PUMP F/P

Information:

Problem
The number-two fuel injection line on certain 775B Trucks and 992D Loaders may fail.
Affected Product
Model & Identification Number
775B (7XJ76-102)
992D (7MJ50-121, 7MG123)
Parts Needed
2 - 5P4939 Screw Assembly1 - 9Y3357 Clamp1 - 1029228 Clamp AssemblyAction Required
See attached rework procedure.
Service Claim Allowances
This is a .5-hour job.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach. (1-Rework Procedure)Rework Procedure
1. Using 2 - 5P4939 Screw Assemblies, install 1 - 9Y3357 Clamp and 1 - 1029228 Clamp Assembly on the number 2 and number 6 fuel lines. Tighten the screws to a torque of 2.25 .25 Nm (20 Lb. in.). Refer to Illustration 1.2. Remove the existing 2 - 1W9169 Clamps, 2 - 9N3388 Screws, 2 - 1W9167 Clamp Assemblies, 2 - 4B4274 Washers and 1 - 9Y7524 Plate on the number 2 and number 8 fuel lines. Refer to Illustration 2.
Illustration 1
Illustration 2
