Information supply pump
BOSCH
9 440 610 895
9440610895
ZEXEL
105220-5350
1052205350
MITSUBISHI
ME722908
me722908

Rating:

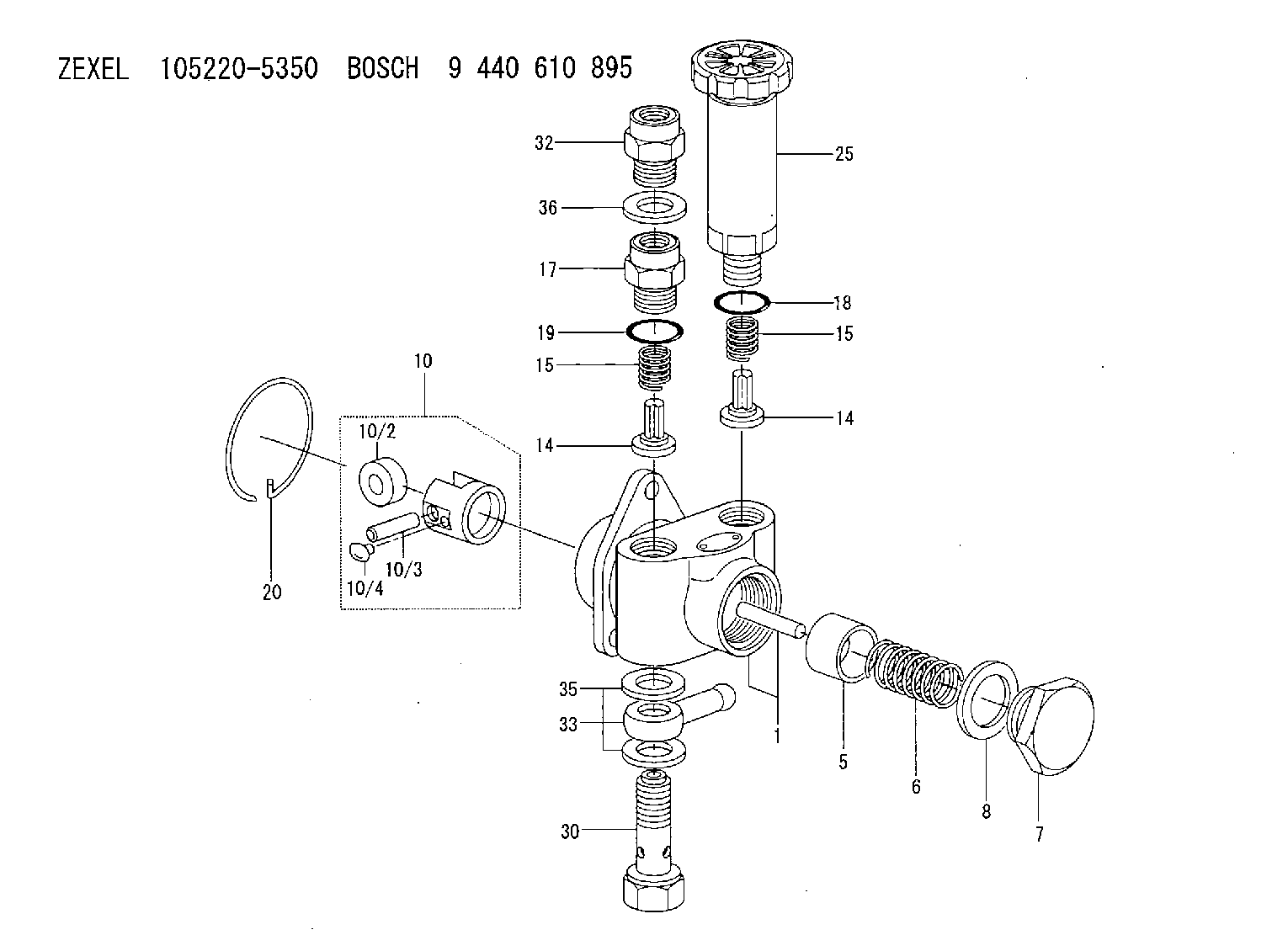

Scheme ###:
1. | [1] | 152003-1220 | PUMP HOUSING |
5. | [1] | 152100-1120 | PUMP PLUNGER |
6. | [1] | 152102-0400 | COMPRESSION SPRING |
7. | [1] | 152105-1500 | CAPSULE |
8. | [1] | 029332-6030 | GASKET |
10. | [1] | 152111-2820 | TAPPET |
10/2. | [1] | 152112-0100 | ROLLER |
10/3. | [1] | 152113-0700 | BEARING PIN |
10/4. | [2] | 152114-0400 | SLIDER |
14. | [2] | 152115-0200 | VALVE BODY |
14. | [2] | 152115-0200 | VALVE BODY |
15. | [2] | 152116-0200 | COILED SPRING |
15. | [2] | 152116-0200 | COILED SPRING |
17. | [1] | 152118-0900 | ADAPTOR |
18. | [1] | 029631-6060 | O-RING |
19. | [1] | 029631-6060 | O-RING |
20. | [1] | 152121-0200 | LOCKING WASHER |
25. | [1] | 152200-5420 | HAND PRIMER |
30. | [1] | 152300-6920 | EYE BOLT |
32. | [1] | 131002-5900 | ADAPTOR |
33. | [1] | 139814-0600 | INLET UNION |
35. | [2] | 029341-4130 | GASKET D20&13.8T2* |
36. | [1] | 029341-4130 | GASKET D20&13.8T2* |
Include in #1:
101491-1161
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
9. If the engine oil pressure gauge does not register within 10 seconds, stop the engine by pulling up on the accelerator pedal. Have corrections made.10. Keep the engine at low idle until the systems are warm.11. Watch all gauges and indicators. They must have correct readings before moving the machine.Below 0°C (32°F)
1. Follow the steps under "Above 0°C (32°F)."
If the engine does not start after two attempts, use starting fluid. This will prevent excessive battery drain and starting motor overheating.Use starting fluid (ether) only while cranking the engine.Use sparingly, excessive ether can cause piston and ring damage.Ether is to be used for cold weather starting purposes only.
Keep batteries charged to a corrected specific gravity of 1.250 or above. Otherwise, an external electrical source may be required. 2. Use starting fluid while cranking the engine. Push the button located below the start switch, at two second intervals only. A metered amount of starting fluid (ether) is released each time the button is pushed.3. Use additional starting fluid every two seconds until the engine starts.4. Release the start switch when the engine starts. Continue to inject ether until the engine runs smoothly.For starting below - 18°C (0°F), use additional starting aids. A coolant
1. Follow the steps under "Above 0°C (32°F)."
If the engine does not start after two attempts, use starting fluid. This will prevent excessive battery drain and starting motor overheating.Use starting fluid (ether) only while cranking the engine.Use sparingly, excessive ether can cause piston and ring damage.Ether is to be used for cold weather starting purposes only.
Keep batteries charged to a corrected specific gravity of 1.250 or above. Otherwise, an external electrical source may be required. 2. Use starting fluid while cranking the engine. Push the button located below the start switch, at two second intervals only. A metered amount of starting fluid (ether) is released each time the button is pushed.3. Use additional starting fluid every two seconds until the engine starts.4. Release the start switch when the engine starts. Continue to inject ether until the engine runs smoothly.For starting below - 18°C (0°F), use additional starting aids. A coolant
