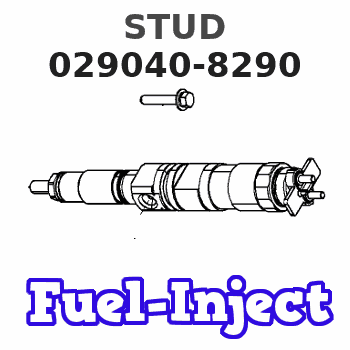

029040-8290 ZEXEL 9 442 610 677 BOSCH STUD 9442610677 0290408290 9884102870

Crankcase Lubricating Oil
The Lubrication and Maintenance Charts list the normal oil change periods as determined by fuel sulphur content. (Make an initial oil change after the first 500 miles of operation for reconditioned engines.)Use oils which meet Engine Service classification CD or MIL-L-2104C. These are additive-type oils that have been approved for use in Caterpillar Diesel Engines. Diesel Engine Crankcase
Check oil level daily before starting engine and when refueling. Check with the engine either running or stopped as indicated on the oil level gauge. Add oil when the level drops to the add oil mark. Drain the crankcase every 10,000 miles while engine is warm and stopped. If equipped with a 13 qt. supplemental filter system the normal interval can be extended to 15,000 miles. Install drain plug. Diesel Engine Crankcase Lubricating Oil Filter
Change filter element every 10,000 miles. Drain the filter housing by removing drain plug. Loosen bolt on the cover and remove the housing and filter element. Inspect seal and install a new one if necessary. Wash the inside of the filter housing and install a new Caterpillar filter element. After draining crankcase remove filter cap and refill. See page 15 for quantity. Start engine and check for oil leaks at drain plug and filter housing. Diesel Engine Crankcase Breather
Remove breather tube cover and element. Wash with clean solvent or diesel fuel at each oil change period. Inspect seal and replace if necessary. Lubricating Grease
Use Multipurpose-type Grease which contains both 3 to 5% molybdenum disulfide conforming to MIL-M-7866, and a suitable corrosion inhibitor. NLGI No. 2 Grade is suitable for most temperatures. NLGI No. 1 or No. 0 are suitable for extremely low temperatures.Always clean fittings before lubricating.Fan Pulley Bearing
Lubricate every 10,000 miles. Lubricate through fitting until grease appears at relief fitting on front of fan hub. Wipe off excess grease. Water Pump Bearing
Lubricate every 10,000 miles. Lubricate through fitting until lubricant appears at relief fitting. Earlier engines have no relief fitting. Excess lubricant will appear at end of water pump shaft. Tachometer Drive
Lubricate every 10,000 miles. Remove plug. Install grease fitting and apply one stroke of lubricant through fitting.
