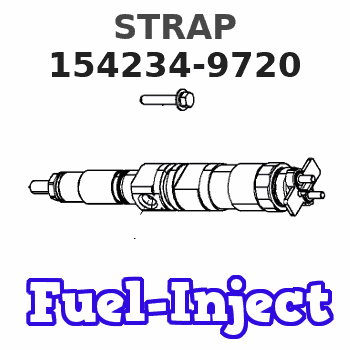

154234-9720 ZEXEL F 019 Z9E 421 BOSCH STRAP f019z9e421 1542349720

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Loosen two hose clamps (1) and remove the hose from the tube assembly.2. Remove tube assembly (2) and the gasket.3. Disconnect hose assembly (3). 4. Loosen hose clamps (4) and remove the hose from the pipe. 5. Remove three bolts (6) and engine oil cooler assembly (5). Inspect all gaskets and make replacements if necessary. Install in reverse order.End By:a. install oil filter baseDisassemble And Assemble Engine Oil Cooler
Start By:a. remove engine oil cooler
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
Before assembly inspect gaskets and the O-ring seals for damage and make needed replacements. 1. Remove bonnet (1) and pipe (3) from core assembly (2). 2. Remove elbows (4) from the core assembly. Bolts (5) have twelve point heads. 3. Clean the tubes of the cooler core with a 3.96 mm (.156 in) diameter rod. Remove the o-ring seals and inspect for damage. Replace if necessary. Assemble in reverse order.End By:a. install engine oil cooler
