Information start advance assy
BOSCH
9 421 621 230
9421621230
ZEXEL
159800-0720
1598000720
ISUZU
8972132900
8972132900
Rating:
Scheme ###:

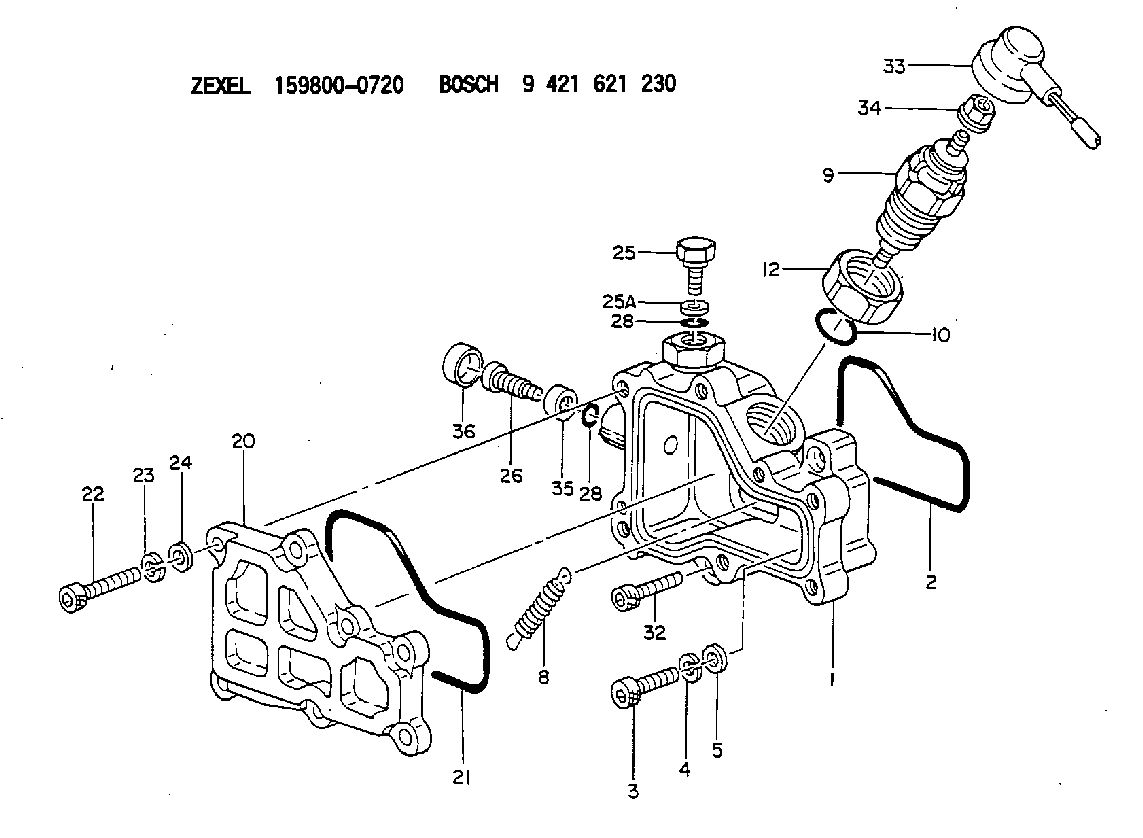

| 1. | [1] | 159820-0321 | DIAPHRAGM HOUSING |
| 2. | [1] | 159822-0200 | SEAL RING |
| 3. | [2] | 010206-2540 | HEX-SOCKET-HEAD CAP SCREW M6P1L25 |
| 4. | [4] | 029320-6010 | LOCKING WASHER |
| 5. | [4] | 139306-0400 | PLAIN WASHER |
| 8. | [1] | 159823-0200 | COILED SPRING |
| 9. | [1] | 159810-0621 | SOLENOID |
| 10. | [1] | 139717-0000 | O-RING |
| 12. | [1] | 139224-0100 | UNION NUT |
| 20. | [1] | 159821-0200 | COVER |
| 21. | [1] | 159822-0300 | SEAL RING |
| 22. | [7] | 010206-2840 | HEX-SOCKET-HEAD CAP SCREW |
| 23. | [7] | 029320-6010 | LOCKING WASHER |
| 24. | [7] | 139306-0400 | PLAIN WASHER |
| 25. | [1] | 159823-1901 | BLEEDER SCREW |
| 25A. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
| 26. | [1] | 159823-1400 | FLAT-HEAD SCREW |
| 28. | [2] | 139706-0100 | O-RING |
| 28. | [2] | 139706-0100 | O-RING |
| 32. | [2] | 010206-2840 | HEX-SOCKET-HEAD CAP SCREW |
| 33. | [1] | 159811-0800 | WIRE |
| 34. | [1] | 146621-1000 | UNION NUT |
| 35. | [1] | 159823-1500 | UNION NUT |
| 36. | [1] | 159823-2001 | CAPSULE |
Cross reference number
Zexel num
Bosch num
Firm num
Name
159800-0720
9 421 621 230
8972132900 ISUZU
START ADVANCE ASSY
K 14GH START ADVANCE ASSY GOV
K 14GH START ADVANCE ASSY GOV
