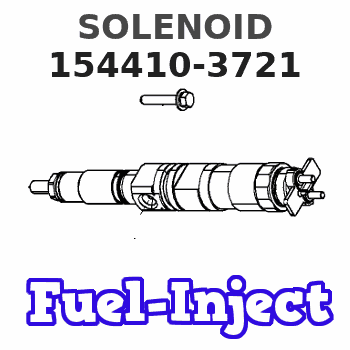

154410-3721 ZEXEL 9 421 620 467 BOSCH SOLENOID 9421620467 1544103721 1850399010

789 Truck
On the 789 Truck, there are two mounting plates and two sets of ether nozzles, both of which are mounted on the frame cross tube in the engine compartment. 1. Install 8X0913 Tube (63) in the front nozzle, and 8W8177 Tube (65) in the rear nozzle of the front pair of turbocharger outlet adapters as shown.2. Use two 5P6314 Sleeves with 5P6313 Nuts to connect tubes (63) and (65) to 8C9006 Tee (64).3. Put 8X5015 Tube (60) in position along the cylinder block and frame cross tube (59). Use a 5P6314 Sleeve and a 5P6313 Nut to connect tube (60) to 8C9006 Tee (64) as shown.4. Connect one end of a 7N0140 Tube Assembly in the bottom of the shuttle valve on the right side mounting plate (62) to the free end of 8X5015 Tube (60).5. Use three 6V2686 Clips (61), with existing bolts on the engine cylinder block and truck frame cross tube (59), to secure 8X5015 Tube (60) as shown.6. Install 8W8179 Tube (66) in the front nozzle and 8W8180 Tube (67) in the rear nozzle of the rear pair of turbocharger outlet adapters as shown.7. Use two 5P6314 Sleeves with 5P6313 Nuts to connect tubes (66) and (67) to 8C9006 Tee (68).8. Use two 6V2686 Clips (61) with existing bolts to secure 8W8180 Tube (67) to the engine block as shown.9. Put 8W8178 Tube (69) in position along the cylinder block and connect it to 8C9006 Tee (68) as shown using a 5P6314 Sleeve and 5P6313 Nut.10. Connect one end of a 7N0140 Tube Assembly in the bottom connector of the shuttle valve on left side mounting plate (70) to the free end of the 8W8178 Tube (69).11. Use three 6V2686 Clips (61) with existing bolts on engine cylinder block to secure 8W8178 Tube (69) as shown.Installation of Ether Cylinders
1. Turn the disconnect switch to the ON position and put the start switch key in the OFF position. Make sure the two lamps on the console and the two yellow LEDs on the ECU are flashing.If they are flashing, it indicates that the control is functioning and recognizes that no ether cylinders are installed.2. Inspect the two digit, seven segment LED display on the ECU. It must read "00". This in an indication that there are no faults.If the display does not read "00", refer to the Service Manual, SENR4705, for a troubleshooting procedure of the system. 3. Remove protective caps (71) and (72) from 9X7137 Ether Solenoid Valves (73) and (74) (left side ether assembly mounting plate on 789 Truck when viewed from the rear of the engine). Install a new 9X7138 Filter Assembly in each solenoid valve inlet if one is not already in place.4. Install a 9X0147 Collar on the neck of each new 7X1062 Ether Cylinder.5. Remove the protective plug from the end of the new FULL ether cylinder, then install the new ether cylinder for ether
