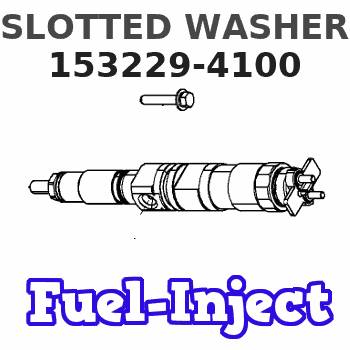

153229-4100 ZEXEL 9 421 611 374 BOSCH SLOTTED WASHER 9421611374 1532294100 9813255750

PARTS NEEDED
Qty
Part Number Description
6 3879434 INJECTOR GP-FUEL
1 5638152 FILTER-LUBE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Upon failure of an injector or multiple injectors, replace the entire set of fuel injectors with six 3879434 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9579, Unit Injector - Remove, and Unit Injector - Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 12.9-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
