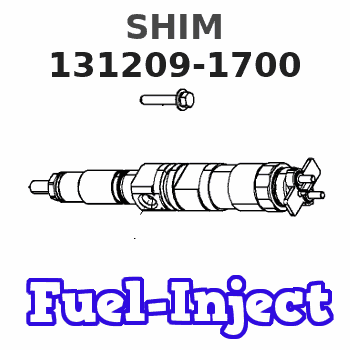

131209-1700 ZEXEL 9 411 610 969 BOSCH SHIM 9411610969 1312091700 1156190140

ACTION REQUIRED
Group 1: Upon failure of a fuel injector, or multiple fuel injectors, replace the entire set of fuel injectors with six 5577627 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9218, Unit Injector - Remove, and Unit Injector - Install.
Group 2: Upon failure of a fuel injector, or multiple fuel injectors, replace the entire set of fuel injectors with six 5577633 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9579, Unit Injector - Remove, and Unit Injector - Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 11.3-hour job for Group 1
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 11.0-hour job for Group 2
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
