Information pneumatic governor
BOSCH
F 019 Z1E 649
f019z1e649
ZEXEL
105520-3070
1055203070
NISSAN-DIESEL
1920090015
1920090015
Rating:

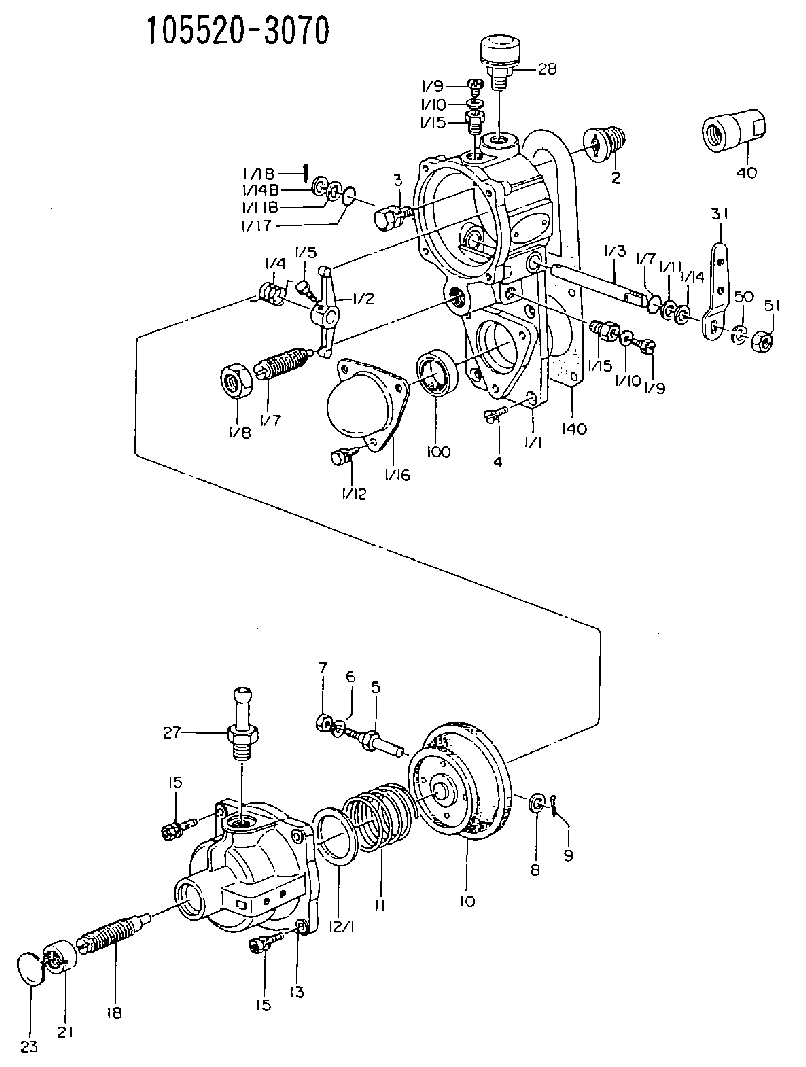

Scheme ###:
| 1. | [1] | 155000-6720 | GOVERNOR HOUSING |
| 1/1. | [1] | 155001-6120 | GOVERNOR HOUSING |
| 1/2. | [1] | 155003-0600 | CONTROL LEVER |
| 1/3. | [1] | 155004-0900 | LEVER SHAFT |
| 1/4. | [1] | 155005-0200 | COILED SPRING |
| 1/5. | [1] | 155006-0700 | BLEEDER SCREW |
| 1/7. | [1] | 155007-0220 | HEADLESS SCREW |
| 1/7. | [1] | 155007-0220 | HEADLESS SCREW |
| 1/8. | [1] | 155011-0200 | HEXAGON NUT |
| 1/9. | [2] | 029010-6010 | CAPSULE M6P1.0L7 |
| 1/9. | [2] | 029010-6010 | CAPSULE M6P1.0L7 |
| 1/10. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 1/10. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 1/11. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
| 1/11B. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
| 1/12. | [3] | 029010-6680 | BLEEDER SCREW |
| 1/14. | [2] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
| 1/14B. | [0] | 029300-8030 | PLAIN WASHER D15&8T1.50 |
| 1/15. | [2] | 155012-0100 | ADAPTOR |
| 1/15. | [2] | 155012-0100 | ADAPTOR |
| 1/16. | [1] | 155013-0100 | CAP |
| 1/17. | [2] | 029630-8060 | O-RING |
| 1/18. | [2] | 025520-1210 | SPLIT PIN |
| 2. | [1] | 154007-0200 | ADAPTOR |
| 3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
| 4. | [4] | 021006-1540 | FLAT-HEAD SCREW |
| 5. | [1] | 153406-0400 | BLEEDER SCREW |
| 6. | [1] | 014110-5440 | LOCKING WASHER |
| 7. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
| 8. | [1] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 9. | [1] | 025520-1210 | SPLIT PIN |
| 10. | [1] | 155020-8020 | DIAPHRAGM |
| 11. | [1] | 155031-1400 | GOVERNOR SPRING |
| 12/1. | [0] | 155407-1100 | SHIM D37&30.5T0.5 |
| 12/1. | [0] | 155407-1200 | SHIM D37&30.5T1.0 |
| 12/1. | [0] | 155407-1300 | SHIM D37&30.5T1.5 |
| 12/1. | [0] | 155407-1400 | SHIM D37&30.5T2.0 |
| 12/1. | [0] | 155407-1500 | SHIM D37&30.5T2.5 |
| 12/1. | [0] | 155407-1600 | SHIM D37&30.5T3.0 |
| 12/1. | [0] | 155407-1700 | SHIM D37&30.5T0.2 |
| 12/1. | [0] | 155407-1800 | SHIM D37&30.5T0.3 |
| 13. | [1] | 155240-0500 | COVER |
| 15. | [4] | 020105-1640 | BLEEDER SCREW M5P0.8L16 |
| 15. | [4] | 020105-1640 | BLEEDER SCREW M5P0.8L16 |
| 18. | [1] | 155241-2220 | HEADLESS SCREW |
| 21. | [1] | 155245-0100 | HEXAGON NUT |
| 23. | [1] | 029142-0010 | CAPSULE |
| 27. | [1] | 029721-2040 | JOINT CONNECTION |
| 28. | [1] | 155406-0220 | AIR FILTER |
| 31. | [1] | 155414-5500 | CONTROL LEVER |
| 40. | [1] | 155404-3700 | CAP |
| 50. | [1] | 014110-8440 | LOCKING WASHER |
| 51. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
| 100. | [1] | 029621-7010 | PACKING RING |
| 140. | [1] | 154390-0000 | GASKET |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105520-3070
1920090015 NISSAN-DIESEL
PNEUMATIC GOVERNOR
K 14JQ PNEUMATIC GOVERNOR GOV PG GOV
K 14JQ PNEUMATIC GOVERNOR GOV PG GOV
