Information pneumatic governor
BOSCH
F 019 Z1E 180
f019z1e180
ZEXEL
105510-8420
1055108420
ISUZU
1157100121
1157100121

Rating:

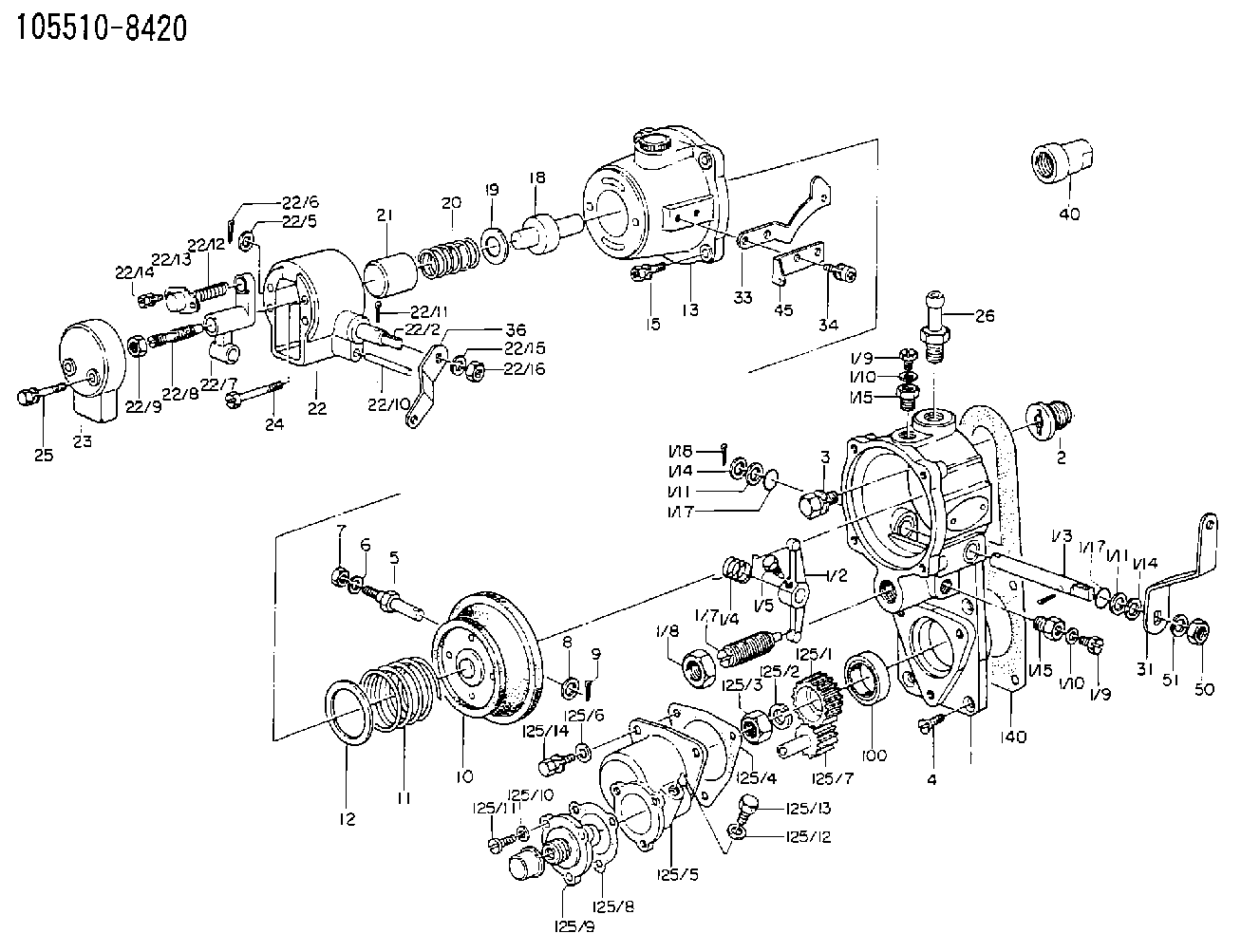

Scheme ###:
1. | [1] | 155000-9820 | GOVERNOR HOUSING |
1/1. | [1] | 155001-0620 | GOVERNOR HOUSING |
1/2. | [1] | 155003-0700 | CONTROL LEVER |
1/3. | [1] | 155004-1200 | LEVER SHAFT |
1/4. | [1] | 155005-0100 | COILED SPRING |
1/5. | [1] | 155006-0700 | BLEEDER SCREW |
1/7. | [1] | 155007-0120 | HEADLESS SCREW |
1/8. | [1] | 155011-0100 | HEXAGON NUT |
1/9. | [2] | 029010-6010 | CAPSULE M6P1.0L7 |
1/9. | [2] | 029010-6010 | CAPSULE M6P1.0L7 |
1/10. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
1/10. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
1/11. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
1/11. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
1/11B. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
1/14. | [2] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
1/14. | [2] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
1/14B. | [2] | 029300-8030 | PLAIN WASHER D15&8T1.50 |
1/15. | [2] | 155012-0100 | ADAPTOR |
1/15. | [2] | 155012-0100 | ADAPTOR |
1/17. | [2] | 029630-8030 | O-RING |
1/17. | [2] | 029630-8030 | O-RING |
1/18. | [2] | 025520-1210 | SPLIT PIN |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [4] | 021006-1540 | FLAT-HEAD SCREW |
5. | [1] | 153406-0400 | BLEEDER SCREW |
6. | [1] | 014110-5440 | LOCKING WASHER |
7. | [1] | 013020-5220 | UNION NUT M5P0.8H4 |
8. | [1] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
9. | [1] | 025520-1210 | SPLIT PIN |
10. | [1] | 155020-1020 | DIAPHRAGM |
11. | [1] | 155030-0200 | GOVERNOR SPRING |
12. | [0] | 155407-0500 | SHIM |
12B. | [0] | 155407-0600 | SHIM |
13. | [1] | 155041-0320 | GOVERNOR HOUSING |
15. | [4] | 020106-2240 | BLEEDER SCREW |
18. | [1] | 155043-0100 | STOP PIN |
19. | [1] | 155407-3300 | SHIM |
20. | [1] | 155045-0400 | COILED SPRING |
21. | [1] | 155044-0100 | GUIDE SLEEVE |
22. | [1] | 155050-8620 | GOVERNOR HOUSING |
22/1. | [1] | 155050-1500 | DIAPHRAGM HOUSING |
22/2. | [1] | 155050-2700 | LEVER SHAFT |
22/5. | [1] | 023500-8140 | PLAIN WASHER |
22/6. | [1] | 015330-1590 | SPLIT PIN |
22/7. | [1] | 155050-3300 | CONTROL LEVER |
22/8. | [1] | 155050-4100 | FLAT-HEAD SCREW |
22/9. | [1] | 013020-6020 | UNION NUT M6P1H5 |
22/10. | [1] | 155050-5100 | BEARING PIN |
22/11. | [1] | 025520-2010 | SPLIT PIN |
22/12. | [1] | 155050-6100 | COILED SPRING |
22/13. | [1] | 155050-7100 | CAP |
22/14. | [2] | 029050-4140 | FLAT-HEAD SCREW |
22/15. | [1] | 014110-8440 | LOCKING WASHER |
22/16. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
23. | [1] | 155051-0100 | COVER |
24. | [2] | 155051-2100 | BLEEDER SCREW |
25. | [2] | 020006-3240 | BLEEDER SCREW |
26. | [1] | 029721-2050 | JOINT CONNECTION |
31. | [1] | 155400-2520 | CONTROL LEVER |
33. | [1] | 155402-0400 | PLATE |
34. | [2] | 029050-5040 | FLAT-HEAD SCREW M5P0.8L9 |
36. | [1] | 155414-2300 | CONTROL LEVER |
40. | [1] | 155404-0200 | CAP |
45. | [1] | 155402-7500 | PLATE |
50. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
51. | [1] | 014110-8440 | LOCKING WASHER |
100. | [1] | 029621-7010 | PACKING RING |
125. | [1] | 155410-0620 | TACHOMETER |
125/1. | [1] | 155410-0100 | TOOTHED GEAR |
125/2. | [1] | 023641-2410 | LOCKING WASHER |
125/3. | [1] | 029201-2010 | UNION NUT |
125/4. | [1] | 155410-1100 | GASKET |
125/5. | [1] | 155410-2100 | DIAPHRAGM HOUSING |
125/6. | [3] | 029300-6030 | PLAIN WASHER D11&6.4T0.5 |
125/7. | [1] | 155410-0200 | TOOTHED GEAR |
125/8. | [1] | 155410-1200 | GASKET |
125/9. | [1] | 155410-3200 | HOLDER |
125/10. | [3] | 153147-0100 | GASKET |
125/11. | [3] | 021306-1240 | FLAT-HEAD SCREW |
125/12. | [1] | 029340-8020 | GASKET |
125/13. | [1] | 010038-0840 | BLEEDER SCREW |
125/14. | [3] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
140. | [1] | 154390-0000 | GASKET |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105510-8420
1157100121 ISUZU
PNEUMATIC GOVERNOR
* K 14JQ PNEUMATIC GOVERNOR GOV PG GOV
* K 14JQ PNEUMATIC GOVERNOR GOV PG GOV
