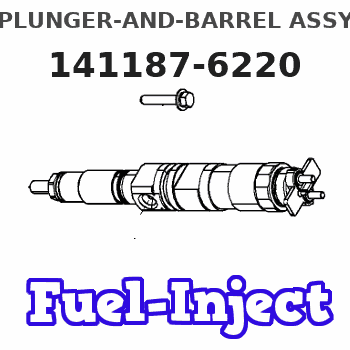

141187-6220 ZEXEL 9 443 611 488 BOSCH PLUNGER-AND-BARREL ASSY 9443611488 1411876220 25c47023a

Select "Create" (9).Note: Two labels and a serial number plate will be sent to the nominated dealer address. If two labels are not received, contact Global_Engine_Marking.
Illustration 23 g06047218
Install the new emissions certification film (10), information label (11), and serial number plate on the cylinder block according to the installation instructions received with the labels and plate.Note: Destroy the old emissions certification film and serial number plate.Operation and Maintenance information
There are several specific messages on this machine. The exact location of the messages and the description of the messages are reviewed in this section. Become familiarized with all messages.Make sure that all messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat® dealer can provide new messages.
Illustration 24 g03516278
Location of films
(1) Engine Oil film
(2) Diesel Fuel Requirements filmEngine Oil (1)
This film is located next to the engine oil filler tube on the right side of the machine.
Illustration 25 g02448560Use Cat® DEO-ULS oils, and oils that satisfy "API CJ-4"and/or "ACEA E9", for engines that are equipped with a diesel particulate filter.Diesel Fuel Requirements (2)
This film is located next to the fuel cap at both sides of the machine.
Illustration 26 g03619316Use Ultralow Sulfur Diesel (ULSD) fuel.The Environmental Protection Agency (EPA) defines Ultra-Low Sulfur Diesel (ULSD - S15) as a diesel fuel with a sulfur content not to exceed 15 parts per million (ppm(mg/kg)), or 0.0015 percent by weight. Engines are equipped with exhaust after-treatment systems are designed to run on ULSD only. Use of LSD or fuels higher than 15 ppm (mg/kg) sulfur in these engines will reduce engine efficiency and engine durability. Damage to the emissions control systems and/or shortened service interval will occur. Failures that result form the use of fuels are not Caterpillar factory defects. Therefore the cost of repairs would not be covered by a Caterpillar warranty.In Europe, ultra low sulfur diesel fuel will have a maximum of 0.0010 percent (10 ppm(mg/kg)) sulfur and is typically referred to as “sulfur-free”. This sulfur level is defined in European Standard "EN 590:2004".Lubricant Viscosities - Fluids Recommendations
Engine Oil
Cat® oils have been developed and tested to provide the full performance and life that has been designed and built into Cat® engines.
Illustration 27 g02448560Cat® DEO-ULS or oils that meet the Cat® ECF-3 specification and the API CJ-4 are required for use in the applications listed below. Cat® DEO-ULS and oils meeting Cat® ECF-3 specification and the API CJ-4 and ACEA E9 oil categories have been developed with limited sulfated ash, phosphorus, and sulfur. These chemical limits are designed to maintain
