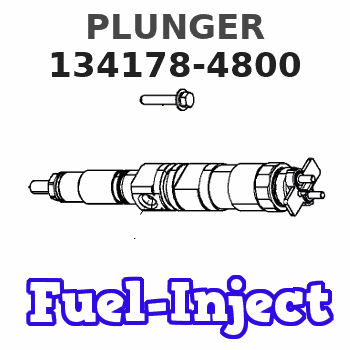

134178-4800 ZEXEL 9 413 612 025 BOSCH PLUNGER 9413612025 1341784800

Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 2 0 0 0 0
4001-8000 0-48 mos 33.3% 1 0 0 50% 1
This is a 2-hour job.If all injectors are replaced:All 3408E Powered Machines
Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 4 0 0 0 0
4001-8000 0-48 mos 33.3% 2 0 0 50% 2
This is a 4-hour job. All 3412E Powered Machines
Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 6 0 0 0 0
4001-8000 0-48 mos 33.3% 3 0 0 50% 3
This is a 6-hour job.PARTS DISPOSITION
***** U.S. and Canadian Dealers *****Return Individual Injector(s) to:Caterpillar Inc.
Attn: PS5615
4-H Park Road
Pontiac, IL 61764Return Complete Injector Sets to:Caterpillar Inc.
Attn: PS5615
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on
warranty parts handling.
