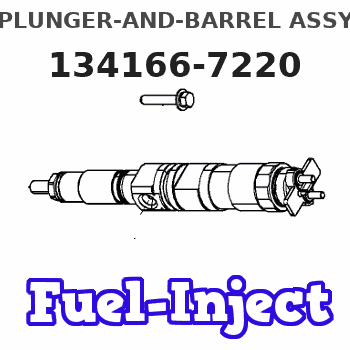

134166-7220 ZEXEL 9 411 615 791 BOSCH PLUNGER-AND-BARREL ASSY 9411615791 1341667220 1156312360

2. Removing Accessories
(1) Removing Fan(a) Reduce the tension applied by the tension pulley by pushing the alternator toward the engine, then remove the water pump drive belt (1).(b) Remove the fan mounting bolts (2), then remove the fan (3).(c) Remove the water pump pulley (4), which was previously retained by the fan mounting bolts (2).(2) Removing Thermostat FittingRemove the water outlet fitting (1), then remove the thermostat (2), thermostat fitting (3), water joint (4), and temperature joint (5) in that sequence. (3) Removing Exhaust and Intake Manifolds(a) Remove the exhaust manifold mounting bolts, then remove the exhaust manifold (1) and the gasket (2).(b) Remove the intake manifold mounting bolts, then remove the intake manifold (3) and the gasket (4). When refitting the manifolds, fit each gasket with the side marked "MANIFOLD" facing the manifold. (4) Removing Water PumpRemove the water pump mounting bolts, then remove the water pump (1). (5) Removing Alternator(a) Disconnect the battery cables.(b) Disconnect the lead from terminal B at the rear of the alternator.(c) Remove the alternator connector.(d) Loosen the alternator brace bolt (1) and support bolt (2), then push the alternator toward the engine and remove the fan belt.(e) Remove the alternator. (6) Removing Starter(a) Disconnect the battery's (-) and (+) terminals in that sequence.(b) Disconnect the start wiring (1).(c) Remove the starter's two mounting bolts (2), then remove the starter (3). (7) Removing Oil Filter(a) The oil filter (2) must be replaced every 100 hours of use.(b) Remove the oil filter using a filter wrench (1). (8) Removing Fuel Filter(a) Remove the fuel pipe (1) that leads from the fuel tank and the fuel pipe (2) that leads to the fuel pump.(b) Remove the fuel filter (3) from the engine. (9) Removing Fuel Pipes(a) Remove the clamps from the four fuel pipes (1), then disconnect the fuel pipes from the engine and from the injection pump.(b) Remove the joints and clips from the fuel hose (2), then disconnect the fuel hose from the injector holders.
To keep dirt out of the fuel system, fit rubber caps over the parts of the injection pump and injector inlet connectors from which the injection pipes are disconnected.
(10) Removing Injection Pump
1 Fuel hose2 Fuel pipe3 Tie rod cover4 Tie rod spring5 Tie rod6 Injection pump7 Adjustment shim8 Control rack pin(a) Remove the tie rod cover (3).
Removing tie rod cover(b) Using long-nosed pliers, remove the tie rod spring (4) from the control rack pin (8) and from the governor lever pin.(c) Remove the tie rod (5).
Removing tie rod(d) Remove the injection pump (6) and the adjustment shim (7).
Removing injection pump(11) Removing Oil PumpRemove the oil pump's four mounting bolts, then remove the oil pump (1). (12) Removing InjectorDisconnect the fuel injection pipe (1) and the fuel hose (2) before removing the injector (3). 3. Refitting Accessories
3.1 General PointsRefit accessories by following the removal procedures in reverse. After refitting accessories, perform the following operations:(1) Pour the specified amount of engine oil into the engine.(2) Pour coolant into the cooling
