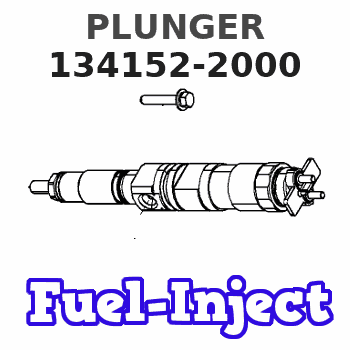

134152-2000 ZEXEL 9 413 611 663 BOSCH PLUNGER 9413611663 1341522000




Information plunger

BOSCH 9 413 611 663 9413611663
ZEXEL 134152-2000 1341522000
134152-2000 PLUNGER
Rating:
57
Buy PLUNGER 134152-2000 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

Zexel num
Bosch num
Firm num
Name
134152-2000
9 413 611 663
P200

PLUNGER
A 14EU PLUNGER PL(P) PL




Information:

Introduction
Procedure to prevent injector Plunger Spring failure due to inadequate fuel system priming.
The low-pressure fuel system must be primed after injector replacement or other repair to the low-pressure fuel system circuit which may allow air to enter the system.
Inadequate priming can result in air being present in the low-pressure fuel system and inside the injectors.
Attempting to start the engine without adequate priming may result in an early hour failure of the injector plunger spring.
Follow the procedure below to prevent injector failure due to inadequate priming.
DO NOT START THE ENGINE WITHOUT PRIMING THE FUEL SYSTEM
Illustration 1 g03735591
Damaged plunger spring due to improper fuel system primingFuel System Priming Procedure:
Disconnect the injector harness at the valve cover.
Use the hand primer to fill the fuel system. Pump until the hand primer becomes too hard to depress by hand.
Crank the engine 3 times for 15 seconds each. Reapply the hand primer after each cranking cycle.
Once the hand primer remains hard to depress after the 15 second crank, reconnect the injector harness and start the engine.
Clear any related fault codes (ET) that were logged while cranking the engine with the injector harness disconnected.
Illustration 2 g03736011

Have questions with 134152-2000?





Group cross 134152-2000 ZEXEL

134152-2000
9 413 611 663
P200

PLUNGER

Isuzu

9 443 611 162
1156310860
PLUNGER-AND-BARREL ASSY
