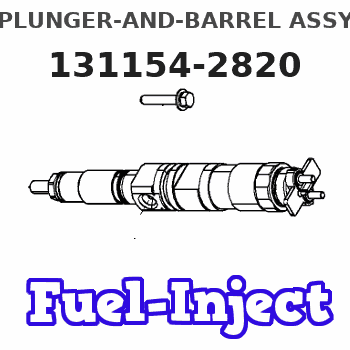

131154-2820 ZEXEL 9 443 611 156 BOSCH PLUNGER-AND-BARREL ASSY 9443611156 1311542820 1156311280

3T6352 24V 35A (Delco-Remy Number 1117647)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (cold) ... 35A(1) Torque for the ground terminal nut ... 2.3 0.6 N m 21 5.0 lb in)(2) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(3) Torque for the output terminal nut ... 7.1 0.9 N m (64 8 lb in) 3T6354 Regulator (Delco-Remy Number 1984287) Inside AlternatorVoltage setting ... No adjustmentPermissible voltage range ... 26 to 30VDelco-Remy (25SI)
3T1888 24V 50A (Delco-Remy Number 1117248)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output (cold) ... 54A(1) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(2) Torque for the output terminal nut ... 13.5 1.3 N m (10 1.0 lb ft) 7N129 Regulator (Delco-Remy Number 1892824) Inside AlternatorVoltage setting range ... 27.5 1.0VAdjust voltage setting to ... 28V There are two types of adjustment: One type of adjustment is made by removing a pipe plug and turning the adjusting screw one or two notches in a clockwise direction to increase the voltage setting or one or two notches in a counterclockwise direction to decrease the voltage setting. The second type of adjustment is similar except, remove the end cover to expose the potentiometer for adjustment.Then increase speed to get a maximum output of ... 50ADelco-Remy (27SI)
9L5938 12V 65A (Delco-Remy Number 1105460), 3T7070 12V 65A (Delco-Remy Number 1105464)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 14.0 0.5VOutput (cold) ... 58ATorque for the ground terminal nut ... 9.0 3.0 N m (80 27 lb in)Torque for the output terminal nut ... 3.4 0.6 N m (30
