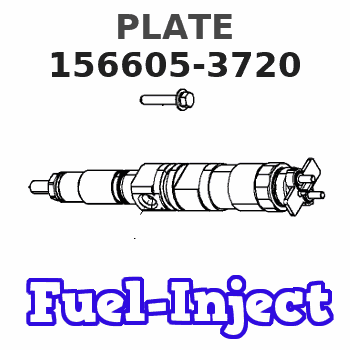

156605-3720 ZEXEL 9 423 617 160 BOSCH PLATE 9423617160 1566053720 1157890360

Start By:a. remove governor 1. Remove the bolts and the plate from the side of the fuel injection pump housing.2. Install Tool (A) in the fuel injection pump housing. Move the rack until Tool (A) can be installed to hold the rack in the center position. The rack must be in the center position to remove the fuel injection pumps.3. Use Tool (B) to remove bushing (1) from the fuel injection pump housing.4. Remove the O-ring seal from the fuel injection pump housing. Spacers (2) are the same thickness for each fuel injection pump so they can be mixed. The fuel injection pump plungers and barrels are sets and can not be mixed.5. Install Tool (C) on the bonnet. Remove the fuel injection pump. 6. Remove spacer (2) from the fuel injection pump housing.7. Do Steps 3 through 6 to remove the other fuel injection pumps.Install Fuel Injection Pumps
1. Install spacer (1) in the fuel injection pump housing. 2. Install Tool (A) in the fuel injection pump housing. Move the rack until Tool (A) can be installed to hold the rack in the center position. The rack must be in the center position to install the fuel injection pumps.3. Turn the camshaft until the lobe of the camshaft is down for the pump to be installed.4. Install Tool (B) on the bonnet of the fuel injection pump.5. Install the fuel injection pump in the pump housing with saw cut (slot) (3) in the gear in alignment with the small pin (2) and groove (4) in the barrel in alignment with dowel (5) in the pump housing. 6. Put clean oil on O-ring seal (6). Install it in the fuel injection pump housing.7. Install the bushing by hand until it is even with the top of the housing. If the bushing can not be installed this far by hand, remove it. Remove the fuel injection pump, and put the pump in alignment again, and install the bushing again. 8. Install Tool (C) on the bushing and tighten the bushing to a torque of 190 14 N m (140 10 lb ft). 9. Install Tool (D) to measure total rack travel. Correct rack travel is 15.7 mm (.618 in). A smaller measurement is an indication of incorrect fuel injection pump installation.10. Do Steps 1 through 9 again for installation of the other fuel pumps.11. Install the cover and gasket on the fuel injection pump housing.End By:a. install governorDisassemble Fuel Injection Pumps
Start By:a. remove fuel injection pumps
Be careful when the injection pumps are disassembled. Do not damage the surfaces of the plungers, barrels and bonnets. Any scratches will cause leakage inside the fuel injection pump. The plunger and barrel for each pump are made as a set. Do not put the plunger of one pump in the barrel of another pump. If one part has wear, install a complete new pump assembly. Be careful when the plunger is put into the bore of the barrel.
1. Pull plunger (1) and
