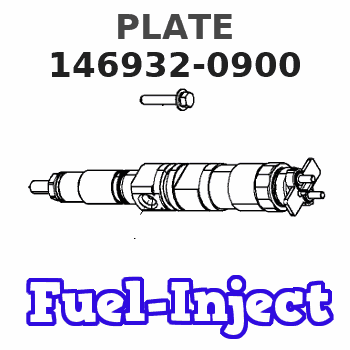

146932-0900 ZEXEL 9 461 616 048 BOSCH PLATE 9461616048 1469320900 8971191980




Information plate

BOSCH 9 461 616 048 9461616048
ZEXEL 146932-0900 1469320900
ISUZU 8971191980 8971191980
146932-0900 PLATE
Rating:
74
Buy PLATE 146932-0900 zexel genuine, new aftermarket engine parts with delivery

Include in ###:

Cross reference number

Zexel num
Bosch num
Firm num
Name
146932-0900
9 461 616 048
8971191980  ISUZU
PLATE
C 11FV PLATE parts(VE) Others




Information:

6N9294 Alternator Group, 3T6352 Alternator 24V 35A (Delco-Remy Number 1117647)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 6500Output voltage ... 27.5 1.0VOutput (cold) ... 35A(1) Torque for the ground terminal nut ... 2.25 0.25 N m (20 2.5 lb in)(2) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(3) Torque for the output terminal nut ... 7.1 0.9 N m (64 8 lb in)3T6353 Regulator (Delco-Remy Number 1984287) Inside Alternator
Voltage setting ... No adjustmentPermissible voltage range ... 26 to 30VDelco-Remy (27SI)
9L5938 12V 65A (Delco-Remy Number 1105460) 3T7070 12V 65A (Delco-Remy Number 1105464)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 14.0 0.5VOutput (cold) ... 58ATorque for the ground terminal nut ... 9.0 3.0 N m (80 27 lb in)Torque for the output terminal nut ... 3.4 0.6 N m (30 5 lb in)(1) Torque for the pulley nut ... 100 7 N m (75 5 lb ft)(2) Brush length (new) ... 24 mm (.94 in)(3) Slip Rings: Maximum Runout (TIR) ... 0.05 mm (.002 in)Minimum Diameter ... 29.3 mm (1.15 in)9L6774 Regulator (Delco-Remy Number 1116406) Inside Alternator
Voltage setting ... No adjustmentPermissible voltage range ... 14 0.5VBosch
6N9294 Alternator Group, 7N9720 Alternator 24V 35A (Bosch Number 0-122-469-001)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 4000Output voltage ... 27.5 1.0VOutput (cold) ... 47ATorque for the ground terminal nut ... 2.1 to 2.8 N m (19 to 25 lb in)(1) Torque for the pulley nut ... 95 to 110 N m (70 to 80 lb ft)(2) Torque for the output terminal nut ... 17 to 22 N m (13 to 16 lb ft)9G7567 Regulator (Bosch Number 1-197-011-000) Under alternator cover. For use with the 7N9720 Alternator.
Voltage rating ... 28VPolarity ... Negative groundVoltage setting range ... 26.7 to 28.3VNippondenso
6N9294 Alternator Group, 9G4574 Alternator 24V 35A (Nippondenso Number 100211-0860)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (cold) ... 35A(1) Torque for the pulley nut ... 95 to 110 N m (70 to 80 lb ft)(2) Torque for the output terminal nut ... 22 to 37 N m (16 to 27 lb ft)(3) Torque for the ground terminal nut ... 3.4 to 5.4 N m (31 to 49 lb in)7T2798 Regulator (Nippondenso Number 126000-0380) - Inside Alternator
Voltage setting ... No AdjustmentPermissible voltage range ... 26.5 to 28.5V

Have questions with 146932-0900?





Group cross 146932-0900 ZEXEL

Isuzu

146932-0900
9 461 616 048
8971191980
PLATE
