Information nozzle and holder assy.
BOSCH
9 430 613 462
9430613462
ZEXEL
105160-5241
1051605241
ISUZU
1153004210
1153004210
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

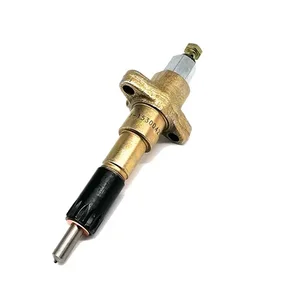

CARTEX Fuel Injector 9430613462 1153004210 105160-5241 for FITS Isuzu Engine 4BG1 6BG1 FITS HITACHI Excavator ZX130W ZX160 ZX200-5G ZX180LC ZX230
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.

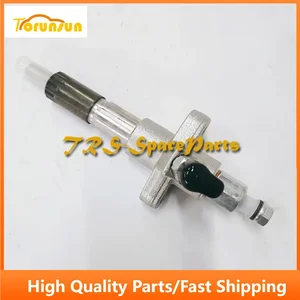

1153004210 1-15300421-0 115300-4210 Fuel Injector Compatible With Hitachi ZX160 ZX230 ZX240H ZX240-3 ZX270 Excavator
DWQPRXNYJ Strong versatility, suitable for a variety of engines || Optimize the fuel injection mode and fully burn the fuel. || Simple installation, no need for complicated modification. || Precise control of fuel injection quantity to improve fuel combustion efficiency || Respond to engine requirements quickly and ensure stable and timely power output.
DWQPRXNYJ Strong versatility, suitable for a variety of engines || Optimize the fuel injection mode and fully burn the fuel. || Simple installation, no need for complicated modification. || Precise control of fuel injection quantity to improve fuel combustion efficiency || Respond to engine requirements quickly and ensure stable and timely power output.
You can express buy:
USD 279
26-12-2018
26-12-2018

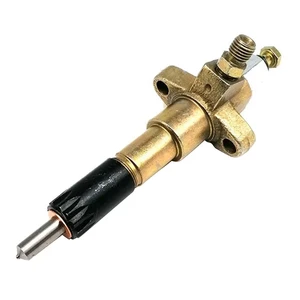

ZX160 ZX230LC Engine 6BG1 Diesel Injector 1153004210 1-15300421-0 115300-4210 For Hitachi Excavator, 3 month warranty
Include in #1:
101402-7890
as NOZZLE AND HOLDER ASSY
Cross reference number
Zexel num
Bosch num
Firm num
Name
105160-5241
1153004210 ISUZU
NOZZLE AND HOLDER ASSY.
6BG1TRA K 53KB NOZZLE & HOLDER ASSY N&NH KBL-S N&NH
6BG1TRA K 53KB NOZZLE & HOLDER ASSY N&NH KBL-S N&NH
Information:
Introduction
Do not perform any procedure in this Special Instruction until you read this information and you understand this information.This Special Instruction is intended to provide instructions on installing O-Ring seals on the injector sleeves.Required Parts
Table 1
Required Parts
Part Number Part Name Quantity
227-1200 Injector Sleeve 6
310-7255 O-Ring Seal 6
310-7257 O-Ring Seal 6 Required Tools
Table 2
Required Tools
Part Number Part Name Quantity
221-9777 Sleeve Installer 1
4C-5552 Large Bore Brush 1
4C-9507 Retaining Compound 1 Cleaning the Injector Sleeves and Installing O-Ring Seal
Note: Thoroughly clean the injector sleeves with the 4C-5552 Large Bore Brush .Note: Thoroughly clean the bore in the cylinder head for the injector sleeves with the 4C-5552 Large Bore Brush .Note: Do not apply any lubricant to the O-ring seals.
Illustration 1 g01379557
(1) 310-7255 O-Ring Seal (2) 310-7257 O-Ring Seal (3) 227-1200 Injector Sleeve
Install the upper O-Ring (1) on the injector sleeve (3) .Note: The upper O-Ring is dark blue.
Install the lower O-Ring (2) on the injector sleeve (3) .Note: The lower O-Ring (2) is turquoise.
Position the injector sleeve on the 221-9777 Sleeve Installer .
Apply a thin coat of 4C-9507 Retaining Compound around the outer circumference of area (A). Ensure that the retaining compound does not make contact with the O-Ring seal at any time.
Position the injector sleeve (3) in the cylinder head by using the 221-9777 Sleeve Installer .
Slowly push the injector sleeve into the cylinder head by gently tapping with a hammer.Note: Allow the 4C-9507 Retaining Compound to cure for two hours at 21 °C (70 °F) before filling the engine with coolant. Longer curing time is required for lower temperatures.
Install the unit injectors. Refer to Disassembly and Assembly, "Unit Injector-Install" to install the unit injectors.
