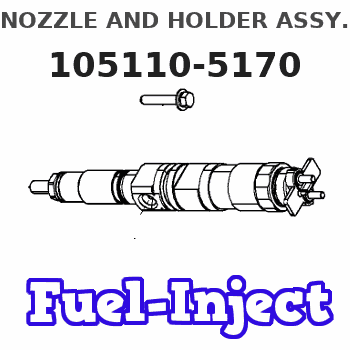

105110-5170 ZEXEL 9 430 612 806 BOSCH NOZZLE AND HOLDER ASSY. 9430612806 1051105170 236002460a

Priority PRODUCTIMPROVEMENT PROGRAM FOR INSTALLING AN ADDITIONAL WATER SPRAY NOZZLE ONCERTAIN PM-465 COLD PLANERS
66095612 6635 PI30304
This Program must be administered assoon as possible. When reporting the repair, use "PI30304" as the Partnumber and "7751" as the Group Number, "56" as the Warranty Claim DescriptionCode and "T" as the SIMS Description Code. Exception: If the repair isdone after failure, use "PI30304" as the Part Number, "7751" as the GroupNumber, "96" as the Warranty Claim Description Code, and "Z" as the SIMSDescription Code. The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.
COMPLETION DATE
TERMINATION DATE
November 30, 2002 May 31, 2003PROBLEM
An additional spray nozzle needs to be installedon certain PM-465 Cold Planers to provide a more even application of waterto the cutter teeth.AFFECTED PRODUCT
Model Identification Number
PM-465 5ZS139-182PARTS NEEDED
Dealers will need to order parts for this Program.
Quantity Part Number Description
2 5D1026 CLAMP-HOSE
1 1G6699 ADAPTER
1 1G8270 BODY-NOZZLE
100 5P1690 HOSE (100 CM)
1 812963 CAP
1 812965 SEAL
1 1159969 CONNECTOR-MA
1 1159970 CONNECTOR-MA
1 2118604 PLATE
1 2118607 TUBE
1 2120911 NOZZLEACTION REQUIRED
Refer to Special Instructions REHS1246 and installthe new spray nozzle and related parts.OWNER NOTIFICATION
U.S. and Canadian owners will receive the attachedOwner Notification.SERVICE CLAIM ALLOWANCES
Caterpillar Dealer Suggested Customer Suggested
Parts Labor Hrs. Parts Labor Hrs. Parts Labor Hrs.
100% 6 0 0 0 0
This is a 6-hour job.
U.S. and Canadian Dealers Only - Eligibledealers may enter a Type 2 SIMS Report.PARTS DISPOSITION
Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAMAS SOON AS POSSIBLE.Attach. (1-Owner Notification)COPY OF OWNER NOTIFICATION FOR U.S. AND CANADIAN OWNERS
XYZ Corporation
3240 Arrow Drive
Anywhere, YZ 99999PRIORITY - PRODUCT IMPROVEMENT PROGRAM FORINSTALLING AN ADDITIONAL WATER SPRAY NOZZLE ON CERTAIN PM-465 COLD PLANERSMODELS INVOLVED - PM-465 COLD PLANERSDear Caterpillar Product Owner:An additional spray nozzle needs to be installedon the products listed below to provide a more even application of waterto the cutter teeth.Contact your local Caterpillar dealer immediatelyto schedule this service. The dealer will advise you of the time requiredto complete this service. Please refer the dealer to their Service Letterdated May 17, 2002 when scheduling this service. You will not be chargedfor the service performed.We regret the inconvenience this may causeyou, but urge you to have this service performed as soon as possible toprevent unscheduled downtime.Caterpillar Inc.Identification #(s)Attached to May 17, 2002 Service Letter
