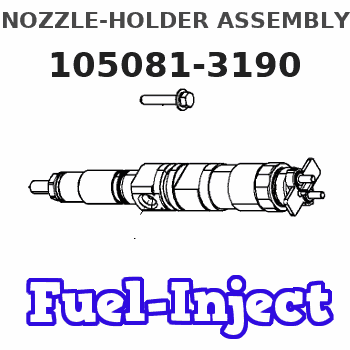

105081-3190 ZEXEL 9 430 615 576 BOSCH NOZZLE-HOLDER ASSEMBLY 9430615576 1050813190

Information nozzle-holder assembly

BOSCH 9 430 615 576 9430615576

ZEXEL 105081-3190 1050813190

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER ASSEMBLY 105081-3190 zexel genuine, new aftermarket engine parts with delivery

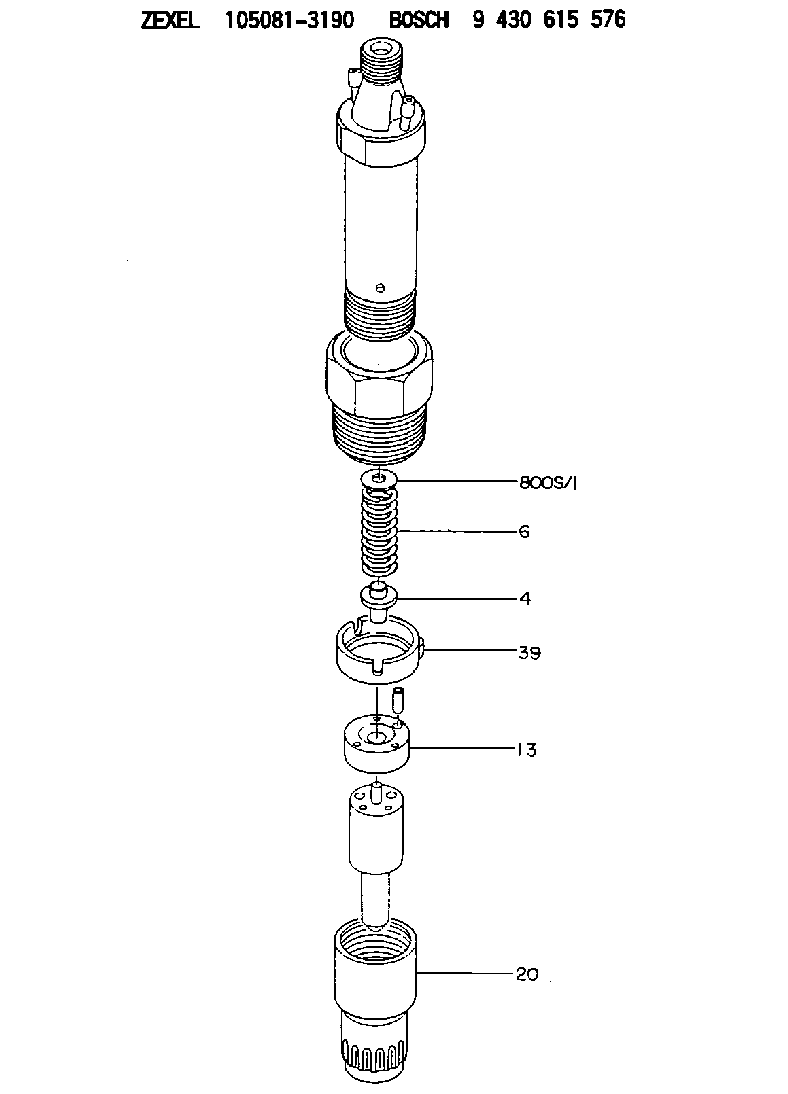

Scheme ###:

4.	[1]	150510-0700	STOP PIN
6.	[1]	150562-1900	COMPRESSION SPRING
13.	[1]	150524-3420	SPACER BUSHING
20.	[1]	150650-0800	NOZZLE-RETAINING NUT
39.	[1]	150624-1600	BUSHING
800S/1.	[0]	150523-5000	SHIM D11.5&4.5T0.50
800S/1.	[0]	150523-5200	SHIM D11.5&4.5T0.54
800S/1.	[0]	150523-5400	SHIM D11.5&4.5T0.58
800S/1.	[0]	150523-5600	SHIM D11.5&4.5T0.62
800S/1.	[0]	150523-5800	SHIM D11.5&4.5T0.66
800S/1.	[0]	150523-6000	SHIM D11.5&4.5T0.70
800S/1.	[0]	150523-6200	SHIM D11.5&4.5T0.74
800S/1.	[0]	150523-6400	SHIM D11.5&4.5T0.78
800S/1.	[0]	150523-6600	SHIM D11.5&4.5T0.82
800S/1.	[0]	150523-6800	SHIM D11.5&4.5T0.86
800S/1.	[0]	150523-7000	SHIM D11.5&4.5T0.90
800S/1.	[0]	150523-7200	SHIM D11.5&4.5T0.94
800S/1.	[0]	150523-7400	SHIM D11.5&4.5T0.98
800S/1.	[0]	150523-7500	SHIM D11.5&4.5T1.00

Include in #1:

101472-9130 as NOZZLE-HOLDER

101682-9330

Cross reference number

Zexel num

Bosch num

Firm num

Name

105081-3190

9 430 615 576

NOZZLE-HOLDER ASSEMBLY
K

Information:

Reference Numbers
Information for the following listed items may be needed for ordering parts. Locate the information for your engine. Record the information on the appropriate line below. You may wish to make a copy of this record. Retain the information for future reference.Record for Reference
Engine Model ____________________Engine Serial No. ____________________Engine Arrangement No. ____________________Engine Power ____________________Engine Low Idle rpm ____________________Engine Full Load rpm ____________________Performance Specification No. ____________________Governor Group No. ____________________Fuel Filter Element No. ____________________Lubrication Oil Filter Element No. ____________________Auxiliary Oil Filter Element No. ____________________Lubrication Oil System Capacity ____________________Supplemental Coolant Additive Maintenance Element No. ____________________Supplemental Coolant Additive Precharge Element (Optional) No. ____________________Cooling System Capacity ____________________Air Cleaner Element No. ____________________Fan Drive Belt Set No. ____________________Alternator Belt No. ____________________Ordering Parts
Quality Caterpillar replacement parts are available from Caterpillar dealers throughout North America and the world. Their parts stocks are up to date and include all parts normally required to protect your Caterpillar engine investment.When ordering parts, your order should specify the quantity, part number, part name and serial number, arrangement number and modification number of the engine for which the parts are needed. If in doubt about the part number, please provide your dealer with a complete description of the needed item.When service or maintenance is needed for your Caterpillar engine, be prepared to give the dealer all the information that is provided on the Information Plate.Discuss the problem with the dealer, such as when it occurs, what happens, etc. This will help the dealer in troubleshooting and solving the problem faster.
