105071-2030 ZEXEL 9 430 615 175 BOSCH NOZZLE-HOLDER ASSEMBLY 9430615175 1050712030




Information nozzle-holder assembly

BOSCH 9 430 615 175 9430615175
ZEXEL 105071-2030 1050712030
105071-2030 NOZZLE-HOLDER ASSEMBLY
Rating:
83
Buy NOZZLE-HOLDER ASSEMBLY 105071-2030 zexel genuine, new aftermarket engine parts with delivery

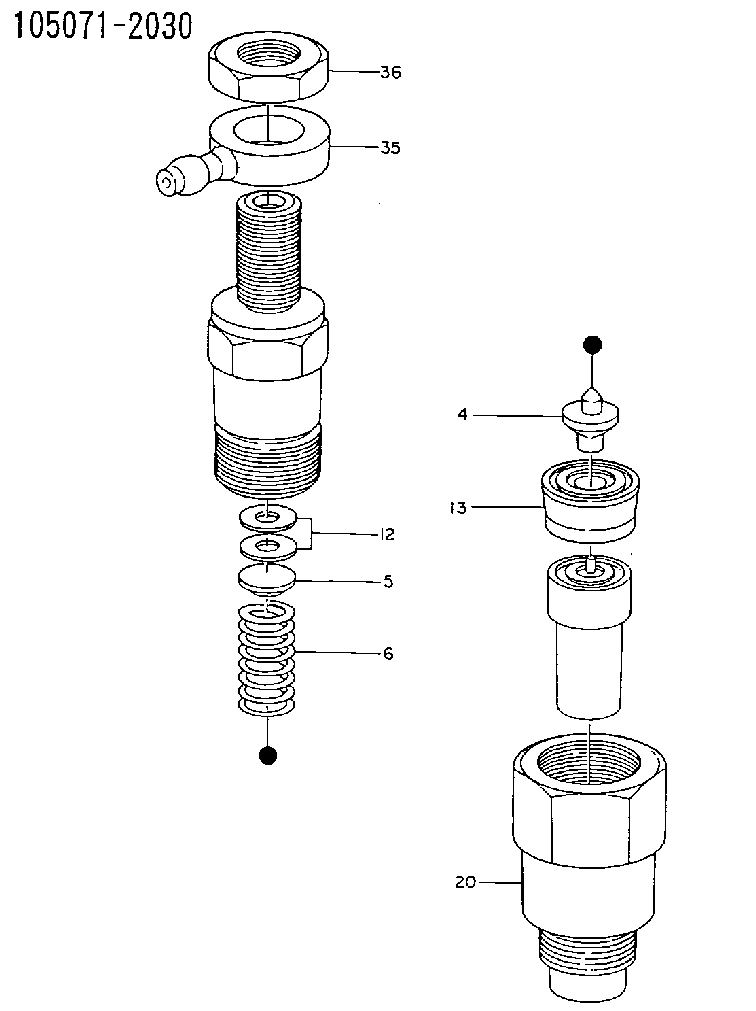

Scheme ###:

4. [1] 150510-4600 STOP PIN
5. [1] 150515-4600 SLOTTED WASHER
6. [1] 150516-3900 COMPRESSION SPRING
12/1. [0] 029310-6110 SHIM D13.5&6.2T0.10
12/1. [0] 029310-6120 SHIM D13.5&6.2T0.20
12/1. [0] 029310-6130 SHIM D13.5&6.2T0.50
12/1. [0] 029310-6140 SHIM D13.5&6.2T1.00
12/1. [0] 029310-6150 SHIM D13.5&6.2T2.00
12/1. [0] 029310-6160 SHIM D13.5&6.2T3.50
12/1. [0] 029310-6170 SHIM D13.5&6.2T0.25
12/1. [0] 029310-6180 SHIM D13.5&6.2T0.15
12/1. [0] 029310-6190 SHIM D13.5&6.2T0.30
13. [1] 150524-1300 SPACER BUSHING
20. [1] 150600-9700 NOZZLE-RETAINING NUT
35. [1] 150620-0100 INLET UNION
36. [1] 150621-0300 UNION NUT M12P1.5H6

Include in #1:

104302-6061 as NOZZLE-HOLDER

Include in #2:

104302-4010 as NOZZLE-HOLDER

Cross reference number

Zexel num
Bosch num
Firm num
Name
105071-2030
9 430 615 175

NOZZLE-HOLDER ASSEMBLY
* K




Information:

Fuel Injection Nozzles
Test/Clean/Replace
The engine will be damaged if a defective fuel injection nozzle is used because of the shape of fuel (spray pattern) that comes out of the nozzles will not be correct.
Fuel injection nozzles are subject to tip wear as a result of fuel contamination. This damage can cause an increase in fuel consumption, the engine to emit black smoke, misfire or run rough. Inspect, test and replace if necessary.Whenever the engine performs in such a manner that a fuel injection nozzle is suspected of causing irregular running, smoking or knocking, each fuel injection nozzle must be isolated, one at a time, to determine the malfunctioning nozzle. Special tooling is required to remove fuel injection nozzles. Refer to the Service Manual or contact your Caterpillar dealer for fuel injection nozzle testing and cleaning procedures.Turbocharger
Periodic inspection and cleaning is recommended for the turbocharger compressor housing (inlet side) and the aftercooler core. Since the crankcase fumes are ingested through the inlet air system, oil and combustion by-products may collect in these two areas.This buildup, over time, can contribute to loss of engine power, increased black smoke, and overall loss of engine efficiency. This buildup is only a possible contributor to these conditions.Operating the engine until the turbocharger fails can severely damage the turbocharger's compressor wheel and/or the engine. Damage to the turbocharger compressor wheel could allow parts from the compressor wheel to enter the engine cylinder, causing additional damage to the piston, valve, and cylinder head.
Turbocharger bearing failures can cause large quantities of oil to enter the air inlet and exhaust systems. Loss of engine lubricant can result in serious engine damage.When a turbocharger bearing failure is accompanied by a significant engine performance loss (exhaust smoke or engine speed up at no load), DO NOT continue engine operation until the turbocharger is repaired or replaced.
Minor leakage of a turbocharger housing under extended low idle operation will not cause problems as long as no turbocharger bearing failure occurred.Inspect for Proper Operation
Turbocharger components require precision clearances and balancing due to operation at high rotational speeds. Severe Service Applications can accelerate component wear and may suggest the need to Inspect/Repair/Replace the cartridge at reduced intervals to ensure maximum reliability and retention of full core value.The following conditions can indicate severe service operation.* Frequent high altitude operation above 5,000 ft (1525 m).* Arctic operation (regular cold starts at temperatures below 0°C [32°F]).* Extending lubrication and inlet air system maintenance intervals. 1. Remove the exhaust outlet piping (1) and inlet piping (2) from the turbocharger. Visually check for oil leaks.2. Turn the compressor wheel and turbine wheel by hand. The assembly should turn freely. Inspect the compressor wheel and turbine wheel for contact with the turbocharger housing. There should NOT be any visible signs of contact between the turbine or compressor wheel and the turbocharger housing. If there is any indication of contact between the rotating wheel(s) and the housing, the turbocharger should be reconditioned or replaced.3. Use a dial indicator to check end

Have questions with 105071-2030?





Group cross 105071-2030 ZEXEL

105071-2030
9 430 615 175

NOZZLE-HOLDER ASSEMBLY
