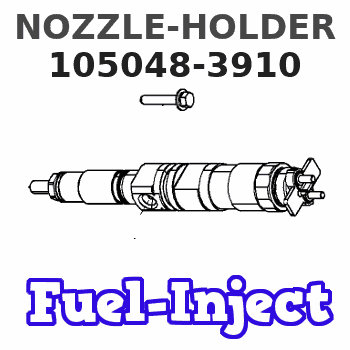

105048-3910 ZEXEL 9 430 616 171 BOSCH NOZZLE-HOLDER 9430616171 1050483910




Information nozzle-holder

BOSCH 9 430 616 171 9430616171
ZEXEL 105048-3910 1050483910
105048-3910 NOZZLE-HOLDER
Rating:
15
Buy NOZZLE-HOLDER 105048-3910 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

Zexel num
Bosch num
Firm num
Name
105048-3910
105048-3911
9 430 616 171

NOZZLE-HOLDER
K




Information:

1. Remove the two bolts, and remove the fuel ratio control from the governor. Remove O-ring seal (1) from the fuel ratio control. 2. Put tooling (A) in a vise as shown so that the station being used is not over the vise jaw. Place the fuel ratio control over the pins in tooling (A). Remove cover (2) and the O-ring from fuel ratio control.
There is spring force behind cover (3). Hold cover (3) in position, and slowly remove the bolts that hold it to release the spring force.
3. Remove cover (3) from housing (4). 4. Remove spring (7), washer (5), and diaphragm (8) from retainer (6). Remove retainer (6) from housing (9). 5. Remove nut (14) from extension (13), and remove the extension from retainer (6). Remove valve (10), spring (11) and O-ring seal (12) from the extension. 6. Remove spring (16), retainer (15) and spring (17) from the housing. 7. Remove piston assembly (18) from the housing. 8. Use tooling (B), and remove snap ring (19) and the wave washers from valve assembly (20). Remove piston assembly (21) from the valve assembly.9. Remove seal (22) from piston (21). 10. Clean and inspect all parts. Make a replacement of all parts that are worn or damaged.Assemble Fuel Ratio Control
1. If valve (1) and stem (2) are loosened or partially unscrewed, the valve assembly should be replaced with new. 2. Put seal (4) on piston (3), and put piston (3) on valve assembly (5). 3. Put two wave washers in position on valve (5), and use tooling (A) to install the snap ring on the valve assembly. 4. Place housing (7) on tooling (B), and put tooling (C) into the bore of the housing. Lubricate tooling (C) with clean engine oil.5. Put a small amount of clean oil on the seal of the piston assembly, and push piston assembly (6) into position with a smooth swift motion. 6. Place spring (8) and retainer and spring (9) in position in housing (7). 7. Put O-ring seal (12) on extension (13). Put spring (11) and valve (10) in position on the extension.8. Lubricate O-ring seal (12) with clean engine oil. Install extension (13) in retainer (14). Install nut (15). 9. Put diaphragm (18), washer (17) and spring (16) in position on retainer (14). Install retainer (14) in housing (7). 10. Hold retainer (14) in position, and install cover (19) on the housing. Install the bolts that hold the cover, and tighten them to a torque of 9 3 N m (7 2 lb ft). 11. Inspect the O-ring for cover (20). Replace the O-ring if worn or broken. Install the cover. 12. Put O-ring seal (21) in position on the fuel ratio control.13. Put the fuel ratio control in position on the governor. Make sure the flange on the end of the fuel ratio control is behind the groove (slot) in the lever. Install the bolts that hold the fuel ratio control in position. See the Testing

Have questions with 105048-3910?





Group cross 105048-3910 ZEXEL

105048-3910

105048-3911
9 430 616 171

NOZZLE-HOLDER


NOZZLE-HOLDER


NOZZLE-HOLDER


NOZZLE-HOLDER
9 430 615 568

NOZZLE-HOLDER

Isuzu

9 430 615 311
8943951971
NOZZLE-HOLDER
