Information nozzle-holder
BOSCH
9 430 615 488
9430615488
ZEXEL
105043-5033
1050435033
DAIHATSU
E226950710Z
e226950710z
Rating:

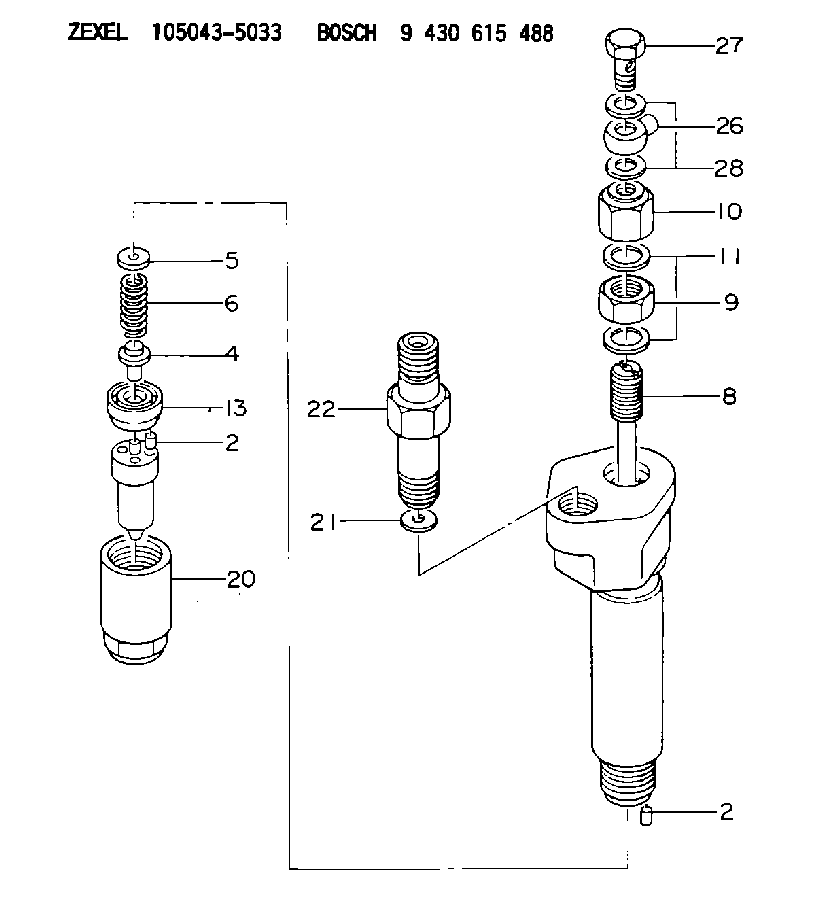

Scheme ###:
| 2. | [4] | 150508-3100 | BEARING PIN |
| 2. | [4] | 150508-3100 | BEARING PIN |
| 4. | [1] | 150551-1100 | STOP PIN |
| 5. | [1] | 150917-0500 | SLOTTED WASHER |
| 6. | [1] | 150562-0401 | COMPRESSION SPRING |
| 8. | [1] | 150924-1200 | THREADED PIN |
| 9. | [1] | 150926-0700 | UNION NUT |
| 10. | [1] | 150567-1700 | CAP NUT |
| 11. | [2] | 150521-1100 | GASKET |
| 13. | [1] | 150524-3900 | SPACER BUSHING |
| 20. | [1] | 150650-0100 | NOZZLE-RETAINING NUT |
| 21. | [1] | 150934-0300 | GASKET |
| 22. | [1] | 150935-1422 | INLET UNION |
| 26. | [1] | 150948-0000 | INLET UNION |
| 27. | [1] | 150949-0100 | EYE BOLT |
| 28. | [2] | 150521-0800 | GASKET |
Include in #2:
104256-1000
as NOZZLE-HOLDER
Cross reference number
Zexel num
Bosch num
Firm num
Name
105043-5033
9 430 615 488
E226950710Z DAIHATSU
NOZZLE-HOLDER
K 30BA NOZZLE HOLDER NH(KBT) NH
K 30BA NOZZLE HOLDER NH(KBT) NH
Information:
Engine Crankshaft Will Not Turn
Recommended Procedure
1. Low or No Battery Voltage ... Check battery voltage. If battery voltage is less than 8 volts for a 12 volt system, or 16 volts for a 24 volt system, put a charge to the battery. If battery will not hold a charge, load test the battery as shown in the Electrical System of the Testing and Adjusting section of this Service Manual.2. Bad Switch, Bad Wiring or Connection in Switch Circuit ... With ignition switch in START position, check voltage at switch connection on starter solenoid. If there is no voltage, or if the voltage is low at this connection, check wiring, connections, ignition switch, and magnetic switch (if used).3. Bad Cable or Connection; Battery to Starter ... With ignition switch in the START position, check voltage at connection of battery cable to starter. If there is no voltage, or if the voltage is low at
Recommended Procedure
1. Low or No Battery Voltage ... Check battery voltage. If battery voltage is less than 8 volts for a 12 volt system, or 16 volts for a 24 volt system, put a charge to the battery. If battery will not hold a charge, load test the battery as shown in the Electrical System of the Testing and Adjusting section of this Service Manual.2. Bad Switch, Bad Wiring or Connection in Switch Circuit ... With ignition switch in START position, check voltage at switch connection on starter solenoid. If there is no voltage, or if the voltage is low at this connection, check wiring, connections, ignition switch, and magnetic switch (if used).3. Bad Cable or Connection; Battery to Starter ... With ignition switch in the START position, check voltage at connection of battery cable to starter. If there is no voltage, or if the voltage is low at
Have questions with 105043-5033?
Group cross 105043-5033 ZEXEL
Daihatsu
105043-5033
9 430 615 488
E226950710Z
NOZZLE-HOLDER
