105041-5160 ZEXEL 9 430 615 223 BOSCH NOZZLE-HOLDER 9430615223 1050415160 236202030a

Information nozzle-holder

BOSCH 9 430 615 223 9430615223

ZEXEL 105041-5160 1050415160

HINO 236202030A 236202030a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105041-5160 zexel genuine, new aftermarket engine parts with delivery

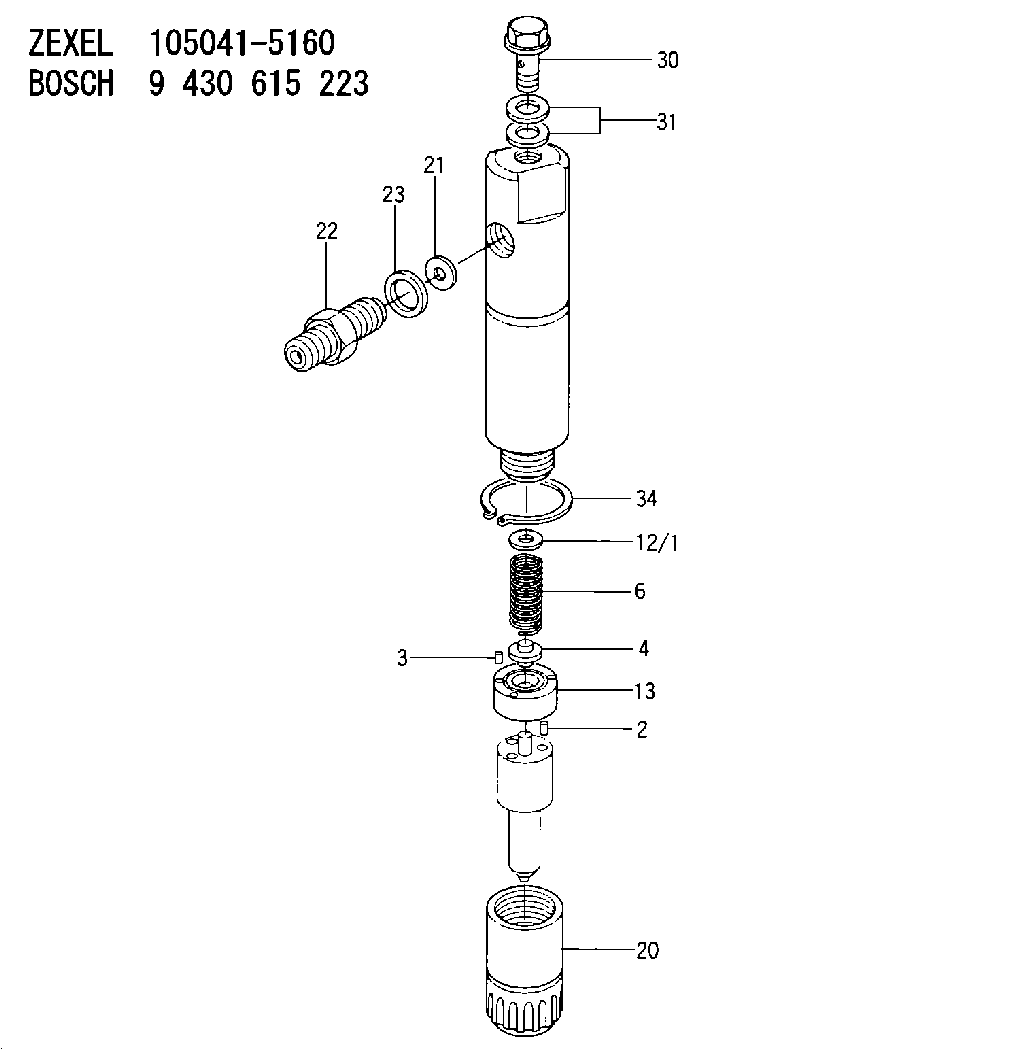

Scheme ###:

2.	[2]	150508-3300	BEARING PIN
3.	[2]	150525-1701	BEARING PIN
4.	[1]	150550-4700	STOP PIN
6.	[1]	150562-1700	COMPRESSION SPRING
12/1.	[1]	150530-4000	SHIM D10.3&4.5T0.5
12/1.	[1]	150530-4100	SHIM D10.3&4.5T0.525
12/1.	[1]	150530-4200	SHIM D10.3&4.5T0.55
12/1.	[1]	150530-4300	SHIM D10.3&4.5T0.575
12/1.	[1]	150530-4400	SHIM D10.3&4.5T0.6
12/1.	[1]	150530-4500	SHIM D10.3&4.5T0.625
12/1.	[1]	150530-4600	SHIM D10.3&4.5T0.65
12/1.	[1]	150530-4700	SHIM D10.3&4.5T0.675
12/1.	[1]	150530-4800	SHIM D10.3&4.5T0.7
12/1.	[1]	150530-4900	SHIM D10.3&4.5T0.725
12/1.	[1]	150530-5000	SHIM D10.3&4.5T0.75
12/1.	[1]	150530-5100	SHIM D10.3&4.5T0.775
12/1.	[1]	150530-5200	SHIM D10.3&4.5T0.8
12/1.	[1]	150530-5300	SHIM D10.3&4.5T0.825
12/1.	[1]	150530-5400	SHIM D10.3&4.5T0.85
12/1.	[1]	150530-5500	SHIM D10.3&4.5T0.875
12/1.	[1]	150530-5600	SHIM D10.3&4.5T0.9
12/1.	[1]	150530-5700	SHIM D10.3&4.5T0.925
12/1.	[1]	150530-5800	SHIM D10.3&4.5T0.95
12/1.	[1]	150530-5900	SHIM D10.3&4.5T0.975
12/1.	[1]	150530-6000	SHIM D10.3&4.5T1.0
12/1.	[1]	150530-6100	SHIM D10.3&4.5T1.025
12/1.	[1]	150530-6200	SHIM D10.3&4.5T1.05
12/1.	[1]	150530-6300	SHIM D10.3&4.5T1.075
12/1.	[1]	150530-6400	SHIM D10.3&4.5T1.1
12/1.	[1]	150530-6500	SHIM D10.3&4.5T1.125
12/1.	[1]	150530-6600	SHIM D10.3&4.5T1.15
12/1.	[1]	150530-6700	SHIM D10.3&4.5T1.175
12/1.	[1]	150530-6800	SHIM D10.3&4.5T1.2
12/1.	[1]	150530-6900	SHIM D10.3&4.5T1.225
12/1.	[1]	150530-7000	SHIM D10.3&4.5T1.25
12/1.	[1]	150530-7100	SHIM D10.3&4.5T1.275
12/1.	[1]	150530-7200	SHIM D10.3&4.5T1.3
12/1.	[1]	150530-7300	SHIM D10.3&4.5T1.325
12/1.	[1]	150530-7400	SHIM D10.3&4.5T1.35
12/1.	[1]	150530-7500	SHIM D10.3&4.5T1.375
12/1.	[1]	150530-7600	SHIM D10.3&4.5T1.4
12/1.	[1]	150530-7700	SHIM D10.3&4.5T1.425
12/1.	[1]	150530-7800	SHIM D10.3&4.5T1.45
12/1.	[1]	150530-7900	SHIM D10.3&4.5T1.475
12/1.	[1]	150530-8000	SHIM D10.3&4.5T1.5
12/1.	[1]	150530-8100	SHIM D10.3&4.5T1.525
12/1.	[1]	150530-8200	SHIM D10.3&4.5T1.55
12/1.	[1]	150530-8300	SHIM D10.3&4.5T1.575
12/1.	[1]	150530-8400	SHIM D10.3&4.5T1.6
12/1.	[1]	150530-8500	SHIM D10.3&4.5T1.625
12/1.	[1]	150530-8600	SHIM D10.3&4.5T1.65
12/1.	[1]	150530-8700	SHIM D10.3&4.5T1.675
12/1.	[1]	150530-8800	SHIM D10.3&4.5T1.7
12/1.	[1]	150530-8900	SHIM D10.3&4.5T1.725
12/1.	[1]	150530-9000	SHIM D10.3&4.5T1.75
12/1.	[1]	150530-9100	SHIM D10.3&4.5T1.775
12/1.	[1]	150530-9200	SHIM D10.3&4.5T1.8
12/1.	[1]	150530-9300	SHIM D10.3&4.5T1.825
12/1.	[1]	150530-9400	SHIM D10.3&4.5T1.85
12/1.	[1]	150530-9500	SHIM D10.3&4.5T1.875
12/1.	[1]	150530-9600	SHIM D10.3&4.5T1.9
12/1.	[1]	150530-9700	SHIM D10.3&4.5T1.925
12/1.	[1]	150530-9800	SHIM D10.3&4.5T1.95
12/1.	[1]	150530-9900	SHIM D10.3&4.5T1.975
13.	[1]	150524-4300	SPACER BUSHING
20.	[1]	150651-3600	NOZZLE-RETAINING NUT
21.	[1]	029300-3100	GASKET
22.	[1]	150645-7300	INLET UNION
23.	[1]	150619-0500	SEAL RING
30.	[1]	150613-1801	EYE BOLT
31.	[2]	150623-6400	GASKET
34.	[1]	150640-3900	LOCKING WASHER

Include in #1:

101401-2212 as NOZZLE-HOLDER

Cross reference number

Zexel num

Bosch num

Firm num

Name

105041-5160

9 430 615 223

236202030A HINO

NOZZLE-HOLDER
K 53LZ NOZZLE HOLDER NH NH

Information:

INJECTION NOZZLE (Right side illustrated)
1. Lines (eight, four each side). 2. Injection nozzles (eight, four each side). 3. Clamps (eight, four each side).4. Remove the adapter (4) and lift injection nozzle (2) out of the cylinder head.
ADAPTER AND NOZZLE REMOVAL
2. Injection nozzle. 4. Adapter. 5. O-ring seal. 6. O-ring seal.
Pull nozzle straight out, by hand, to remove. Slight twisting action is permissible if necessary. Never pry out a nozzle with a screwdriver or other similar tool.
Always replace O-ring seals (5) and (6) before installing nozzle.5. Use needle-nose pliers to remove carbon seal dam (8). Always install a new compression seal (7) and carbon seal dam (8) before installing injection nozzle.
REMOVING CARBON SEAL DAM (Typical Example)
7. Compression seal. 8. Carbon seal dam.Install Fuel Injection Nozzles
1. Be sure the bore in the cylinder head and fuel inlet fittings are clean.
Never install an injection nozzle that has been dropped, without first testing it with the 8S2242 Nozzle Tester Group. The injector tips are very hard and brittle and break easily.
2. Install a new compression seal and carbon seal dam. Use carbon seal dam installation tool (9) to install the carbon seal dam.
INSTALLING CARBON SEAL DAM (Typical Example)
9. 8S2252 Carbon Seal Dam Installation Tool.3. Install a new O-ring seal (6) on the injection nozzle (2) and a new O-ring seal (5) on the adapter (4).4. Install the injection nozzle (2) into the cylinder head using a twisting motion. Do not use lubricant in the cylinder head bore or on the nozzle body.
INSTALLING NOZZLE
2. Injection nozzle. 4. Adapter. 5. O-ring seal. 6. O-ring seal.
Do not bend the injector inlet connection when installing injector into cylinder head. Bending of the inlet connection creates tension on the injector and causes binding of the needle in the guide.
5. Install the adapter (4) and tighten the injection nozzle-to-adapter retaining nut. Tighten retaining nut to 30 5 lb. ft. (4.1 0.7 mkg). Hand tighten the fuel injection line.6. Install the injection nozzle clamp.7. Install the fuel return manifold and rocker arm assembly. Install retaining bolts and locks. Tighten bolts to 18 5 lb. ft. (2.5 0.7 mkg) and bend locks.8. Adjust the intake valve clearance to .015 in. (0.38 mm) and the exhaust valve clearance to .025 in. (0.64 mm).9. Install valve cover. Install mounting bolts and tighten to 120 24 lb. in. (138 28 cm.kg).10. Purge the fuel lines of air by motoring the engine until fuel, free of air, flows from the connections.11. Use 5P144 Fuel Line Socket to tighten the fuel line connections to 30 5 lb. ft. (4.1 0.7 mkg).12. Start the engine and correct any fuel leaks that may occur.
