105041-5040 ZEXEL 9 430 616 393 BOSCH NOZZLE-HOLDER 9430616393 1050415040

Information nozzle-holder

BOSCH 9 430 616 393 9430616393

ZEXEL 105041-5040 1050415040

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105041-5040 zexel genuine, new aftermarket engine parts with delivery

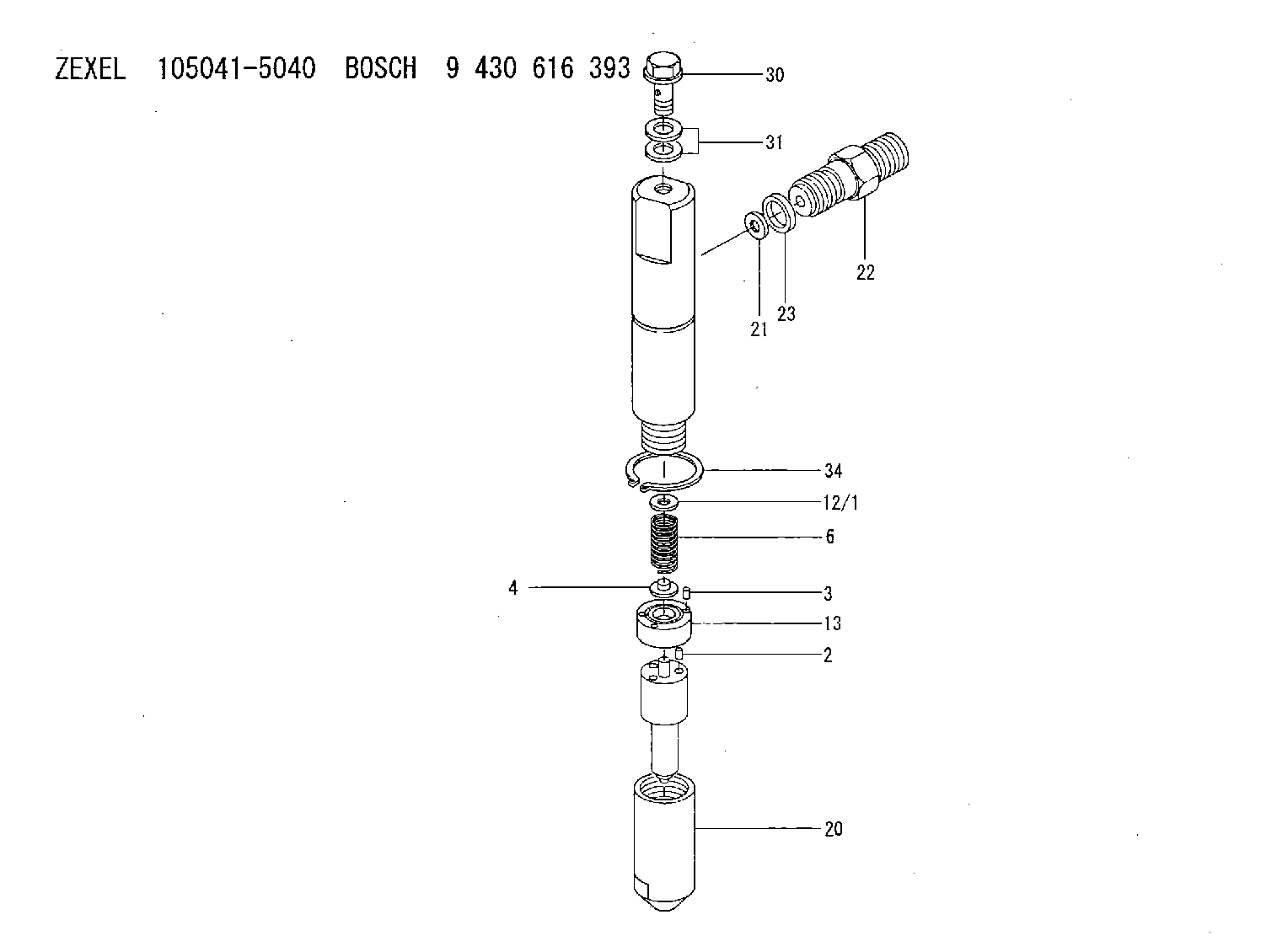

Scheme ###:

2.	[2]	150508-3300	BEARING PIN
3.	[2]	150525-1701	BEARING PIN
4.	[1]	150550-4700	STOP PIN
6.	[1]	150562-1700	COMPRESSION SPRING
12/1.	[1]	150530-4000	SHIM D10.3&4.5T0.5
12/1.	[1]	150530-4100	SHIM D10.3&4.5T0.525
12/1.	[1]	150530-4200	SHIM D10.3&4.5T0.55
12/1.	[1]	150530-4300	SHIM D10.3&4.5T0.575
12/1.	[1]	150530-4400	SHIM D10.3&4.5T0.6
12/1.	[1]	150530-4500	SHIM D10.3&4.5T0.625
12/1.	[1]	150530-4600	SHIM D10.3&4.5T0.65
12/1.	[1]	150530-4700	SHIM D10.3&4.5T0.675
12/1.	[1]	150530-4800	SHIM D10.3&4.5T0.7
12/1.	[1]	150530-4900	SHIM D10.3&4.5T0.725
12/1.	[1]	150530-5000	SHIM D10.3&4.5T0.75
12/1.	[1]	150530-5100	SHIM D10.3&4.5T0.775
12/1.	[1]	150530-5200	SHIM D10.3&4.5T0.8
12/1.	[1]	150530-5300	SHIM D10.3&4.5T0.825
12/1.	[1]	150530-5400	SHIM D10.3&4.5T0.85
12/1.	[1]	150530-5500	SHIM D10.3&4.5T0.875
12/1.	[1]	150530-5600	SHIM D10.3&4.5T0.9
12/1.	[1]	150530-5700	SHIM D10.3&4.5T0.925
12/1.	[1]	150530-5800	SHIM D10.3&4.5T0.95
12/1.	[1]	150530-5900	SHIM D10.3&4.5T0.975
12/1.	[1]	150530-6000	SHIM D10.3&4.5T1.0
12/1.	[1]	150530-6100	SHIM D10.3&4.5T1.025
12/1.	[1]	150530-6200	SHIM D10.3&4.5T1.05
12/1.	[1]	150530-6300	SHIM D10.3&4.5T1.075
12/1.	[1]	150530-6400	SHIM D10.3&4.5T1.1
12/1.	[1]	150530-6500	SHIM D10.3&4.5T1.125
12/1.	[1]	150530-6600	SHIM D10.3&4.5T1.15
12/1.	[1]	150530-6700	SHIM D10.3&4.5T1.175
12/1.	[1]	150530-6800	SHIM D10.3&4.5T1.2
12/1.	[1]	150530-6900	SHIM D10.3&4.5T1.225
12/1.	[1]	150530-7000	SHIM D10.3&4.5T1.25
12/1.	[1]	150530-7100	SHIM D10.3&4.5T1.275
12/1.	[1]	150530-7200	SHIM D10.3&4.5T1.3
12/1.	[1]	150530-7300	SHIM D10.3&4.5T1.325
12/1.	[1]	150530-7400	SHIM D10.3&4.5T1.35
12/1.	[1]	150530-7500	SHIM D10.3&4.5T1.375
12/1.	[1]	150530-7600	SHIM D10.3&4.5T1.4
12/1.	[1]	150530-7700	SHIM D10.3&4.5T1.425
12/1.	[1]	150530-7800	SHIM D10.3&4.5T1.45
12/1.	[1]	150530-7900	SHIM D10.3&4.5T1.475
12/1.	[1]	150530-8000	SHIM D10.3&4.5T1.5
12/1.	[1]	150530-8100	SHIM D10.3&4.5T1.525
12/1.	[1]	150530-8200	SHIM D10.3&4.5T1.55
12/1.	[1]	150530-8300	SHIM D10.3&4.5T1.575
12/1.	[1]	150530-8400	SHIM D10.3&4.5T1.6
12/1.	[1]	150530-8500	SHIM D10.3&4.5T1.625
12/1.	[1]	150530-8600	SHIM D10.3&4.5T1.65
12/1.	[1]	150530-8700	SHIM D10.3&4.5T1.675
12/1.	[1]	150530-8800	SHIM D10.3&4.5T1.7
12/1.	[1]	150530-8900	SHIM D10.3&4.5T1.725
12/1.	[1]	150530-9000	SHIM D10.3&4.5T1.75
12/1.	[1]	150530-9100	SHIM D10.3&4.5T1.775
12/1.	[1]	150530-9200	SHIM D10.3&4.5T1.8
12/1.	[1]	150530-9300	SHIM D10.3&4.5T1.825
12/1.	[1]	150530-9400	SHIM D10.3&4.5T1.85
12/1.	[1]	150530-9500	SHIM D10.3&4.5T1.875
12/1.	[1]	150530-9600	SHIM D10.3&4.5T1.9
12/1.	[1]	150530-9700	SHIM D10.3&4.5T1.925
12/1.	[1]	150530-9800	SHIM D10.3&4.5T1.95
12/1.	[1]	150530-9900	SHIM D10.3&4.5T1.975
13.	[1]	150524-4300	SPACER BUSHING
20.	[1]	150650-7900	NOZZLE-RETAINING NUT
21.	[1]	029300-3100	GASKET
22.	[1]	150645-6700	INLET UNION
23.	[1]	150619-0500	SEAL RING
30.	[1]	150613-1801	EYE BOLT
31.	[2]	150623-6400	GASKET
34.	[1]	150640-3900	LOCKING WASHER

Include in #1:

101601-5132 as NOZZLE-HOLDER

Cross reference number

Zexel num

Bosch num

Firm num

Name

105041-5040

9 430 616 393

NOZZLE-HOLDER
K
