Information nozzle-holder
BOSCH
9 430 615 829
9430615829
ZEXEL
105041-3210
1050413210
ISUZU
1153301270
1153301270
Rating:

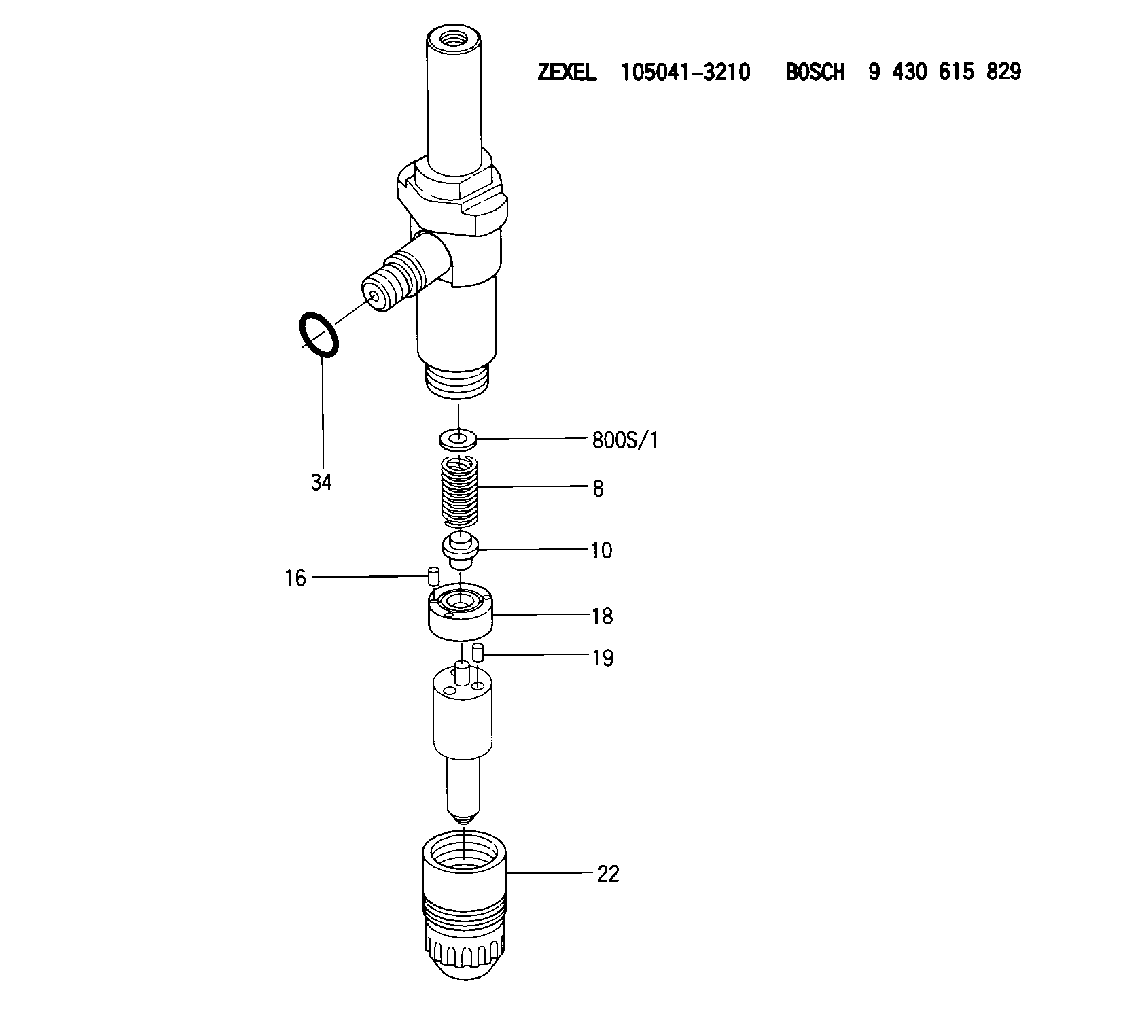

Scheme ###:
| 8. | [1] | 150562-1700 | COMPRESSION SPRING |
| 10. | [1] | 150550-4700 | STOP PIN |
| 16. | [2] | 150525-1701 | BEARING PIN |
| 18. | [1] | 150524-6000 | SPACER BUSHING |
| 19. | [2] | 150508-3300 | BEARING PIN |
| 22. | [1] | 150651-8501 | NOZZLE-RETAINING NUT |
| 34. | [1] | 016550-1120 | O-RING |
| 800S/1. | [1] | 150530-4000 | SHIM D10.3&4.5T0.5 |
| 800S/1. | [1] | 150530-4200 | SHIM D10.3&4.5T0.55 |
| 800S/1. | [1] | 150530-4400 | SHIM D10.3&4.5T0.6 |
| 800S/1. | [1] | 150530-4600 | SHIM D10.3&4.5T0.65 |
| 800S/1. | [1] | 150530-4800 | SHIM D10.3&4.5T0.7 |
| 800S/1. | [1] | 150530-5000 | SHIM D10.3&4.5T0.75 |
| 800S/1. | [1] | 150530-5200 | SHIM D10.3&4.5T0.8 |
| 800S/1. | [1] | 150530-5400 | SHIM D10.3&4.5T0.85 |
| 800S/1. | [1] | 150530-5600 | SHIM D10.3&4.5T0.9 |
| 800S/1. | [1] | 150530-5800 | SHIM D10.3&4.5T0.95 |
Include in #1:
106671-6440
as NOZZLE-HOLDER
Cross reference number
Zexel num
Bosch num
Firm num
Name
105041-3210
9 430 615 829
1153301270 ISUZU
NOZZLE-HOLDER
K 53LZ NOZZLE HOLDER NH NH
K 53LZ NOZZLE HOLDER NH NH
