105031-7310 ZEXEL 9 430 615 125 BOSCH NOZZLE-HOLDER 9430615125 1050317310 236202210a

Information nozzle-holder

BOSCH 9 430 615 125 9430615125

ZEXEL 105031-7310 1050317310

HINO 236202210A 236202210a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105031-7310 zexel genuine, new aftermarket engine parts with delivery

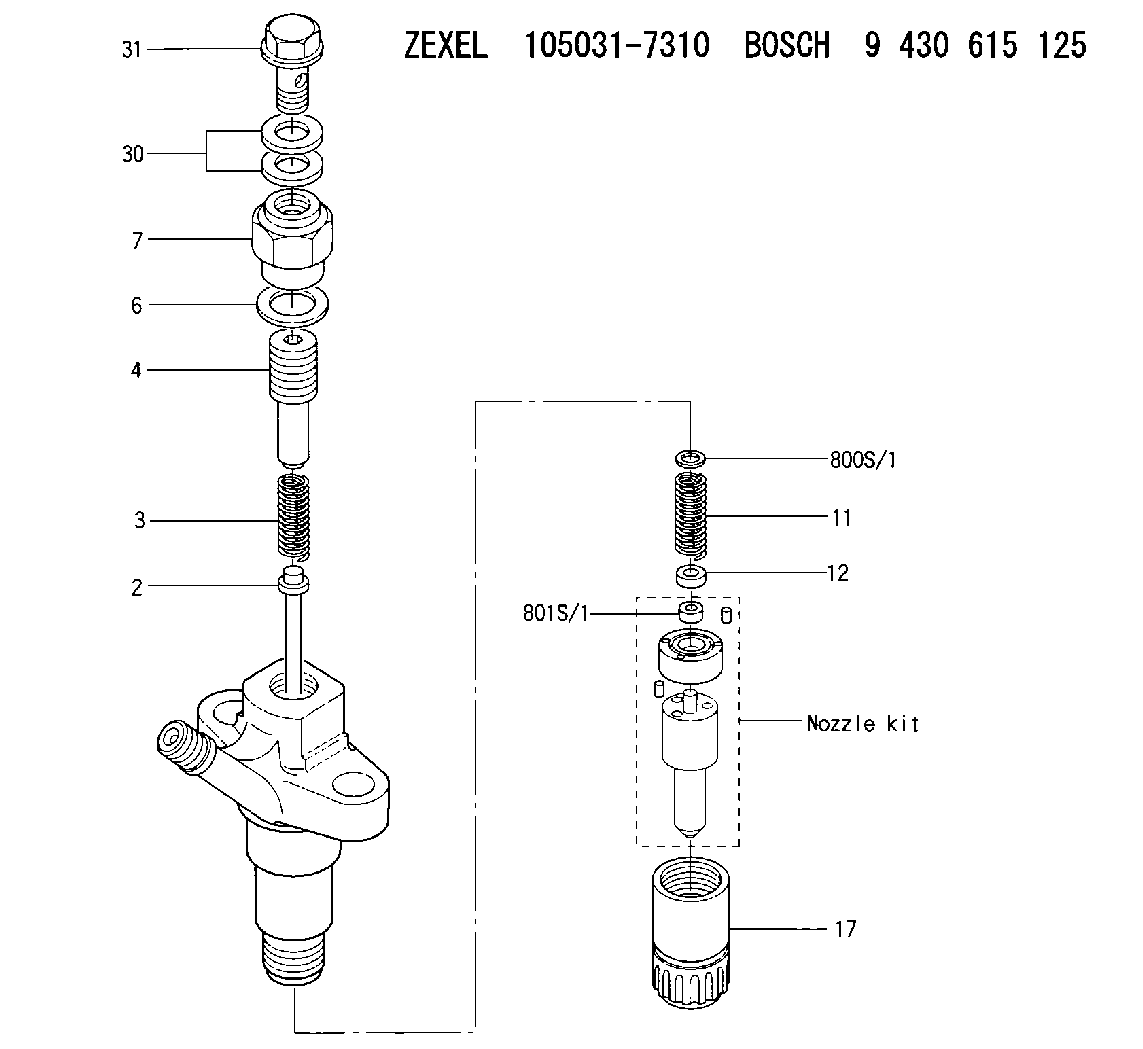

Scheme ###:

2.	[1]	150550-5700	STOP PIN
3.	[1]	150562-4400	COMPRESSION SPRING
4.	[1]	150565-7100	THREADED PIN
6.	[1]	029331-4130	GASKET
7.	[1]	150567-3000	CAP NUT
11.	[1]	150562-4400	COMPRESSION SPRING
12.	[1]	150560-1601	SLOTTED WASHER
14.	[2]	150525-1701	BEARING PIN
15.	[1]	150524-5700	SPACER BUSHING
16.	[2]	150508-3300	BEARING PIN
17.	[1]	150651-4500	NOZZLE-RETAINING NUT
30.	[2]	150623-6400	GASKET
31.	[1]	150613-1801	EYE BOLT
800S/1.	[1]	150538-4900	SHIM D9.5&4.5T0.40
800S/1.	[1]	150538-5000	SHIM D9.5&4.5T0.50
800S/1.	[1]	150538-5100	SHIM D9.5&4.5T0.52
800S/1.	[1]	150538-5200	SHIM D9.5&4.5T0.54
800S/1.	[1]	150538-5300	SHIM D9.5&4.5T0.56
800S/1.	[1]	150538-5400	SHIM D9.5&4.5T0.58
800S/1.	[1]	150538-5500	SHIM D9.5&4.5T0.60
800S/1.	[1]	150538-5600	SHIM D9.5&4.5T0.70
801S/1.	[1]	150575-0000	LIFT PIECE T2.860
801S/1.	[1]	150575-0200	LIFT PIECE T2.870
801S/1.	[1]	150575-0400	LIFT PIECE T2.880
801S/1.	[1]	150575-0600	LIFT PIECE T2.890
801S/1.	[1]	150575-0800	LIFT PIECE T2.900
801S/1.	[1]	150575-1000	LIFT PIECE T2.910
801S/1.	[1]	150575-1200	LIFT PIECE T2.920
801S/1.	[1]	150575-1400	LIFT PIECE T2.930
801S/1.	[1]	150575-1600	LIFT PIECE T2.940
801S/1.	[1]	150575-1800	LIFT PIECE T2.950
801S/1.	[1]	150575-2000	LIFT PIECE T2.960
801S/1.	[1]	150575-2200	LIFT PIECE T2.970
801S/1.	[1]	150575-2400	LIFT PIECE T2.980
801S/1.	[1]	150575-2600	LIFT PIECE T2.990
801S/1.	[1]	150575-2800	LIFT PIECE T3.000
801S/1.	[1]	150575-3000	LIFT PIECE T3.010
801S/1.	[1]	150575-3200	LIFT PIECE T3.020
801S/1.	[1]	150575-3400	LIFT PIECE T3.030
801S/1.	[1]	150575-3600	LIFT PIECE T3.040
801S/1.	[1]	150575-3800	LIFT PIECE T3.050
801S/1.	[1]	150575-4000	LIFT PIECE T3.060
801S/1.	[1]	150576-3000	LIFT PIECE
801S/1.	[1]	150576-3200	LIFT PIECE
801S/1.	[1]	150576-3400	LIFT PIECE
801S/1.	[1]	150576-3600	LIFT PIECE
801S/1.	[1]	150576-3800	LIFT PIECE
801S/1.	[1]	150576-4000	LIFT PIECE

Include in #1:

101402-2362 as NOZZLE-HOLDER

Cross reference number

Zexel num

Bosch num

Firm num

Name

105031-7310

9 430 615 125

236202210A HINO

NOZZLE-HOLDER
K 53LZ NOZZLE HOLDER NH NH

Information:

Problem
The 9Y3222 Injector Rocker Arms may fail on certain 205B, 206B, 211B, 212B, 213B, 214B, 224B, and 325 Excavators; D20D and D250D Articulated Trucks; 446 Backhoe Loaders; 950F Loaders; 3114 Industrial Engines; 3116 Industrial Engines; 3116 Marine Engines; and 3116 Truck Engines. The arm may fail near the adjusting screw or the insert on the injector end of the arm may break.
Affected Product
Model & Identification Number
205B (5ZF1-91)
206B (9BF1-691)
211B (6XG1-162)
212B (3PJ1-912)
213B (1EJ1-378)
214B (4CF1-517; 9MF1-386)
224B (7WF1-181)
325 (2JK174-254)
D20D (9MG1-46)
D250D (6NG1-35)
446 (6XF1-689)
950F (6YG1-2729; 7ZF1-1045)
3114 (Industrial) (5EF1-974)
3116 (Industrial) (2WG1-2506; 4PG1-847)
3116 (Marine) (4KF1-1154)
3116 (Truck) (2BK10000-14485)
Parts Needed
6 - 9Y3222 Injector Arm AssemblyAction Required
If one 9Y3222 Injector Arm Assembly fails, follow the procedures in the Service Manual and replace all six 9Y3222 Injector Arm Assemblies.
In marine applications where there is more than one engine per vessel, install six new 9Y3222 Injector Arm Assemblies on all engines if there is a 9Y3222 Injector Arm Assembly failure.
Service Claim Allowances
All Affected Product Except Truck Engines
This is a 4-hour job.
Truck Engines
Labor segment for test after repair not allowed for this repair.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
