105031-5430 ZEXEL 9 430 615 400 BOSCH NOZZLE-HOLDER 9430615400 1050315430 236201530a

Information nozzle-holder

BOSCH 9 430 615 400 9430615400

ZEXEL 105031-5430 1050315430

HINO 236201530A 236201530a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105031-5430 zexel genuine, new aftermarket engine parts with delivery

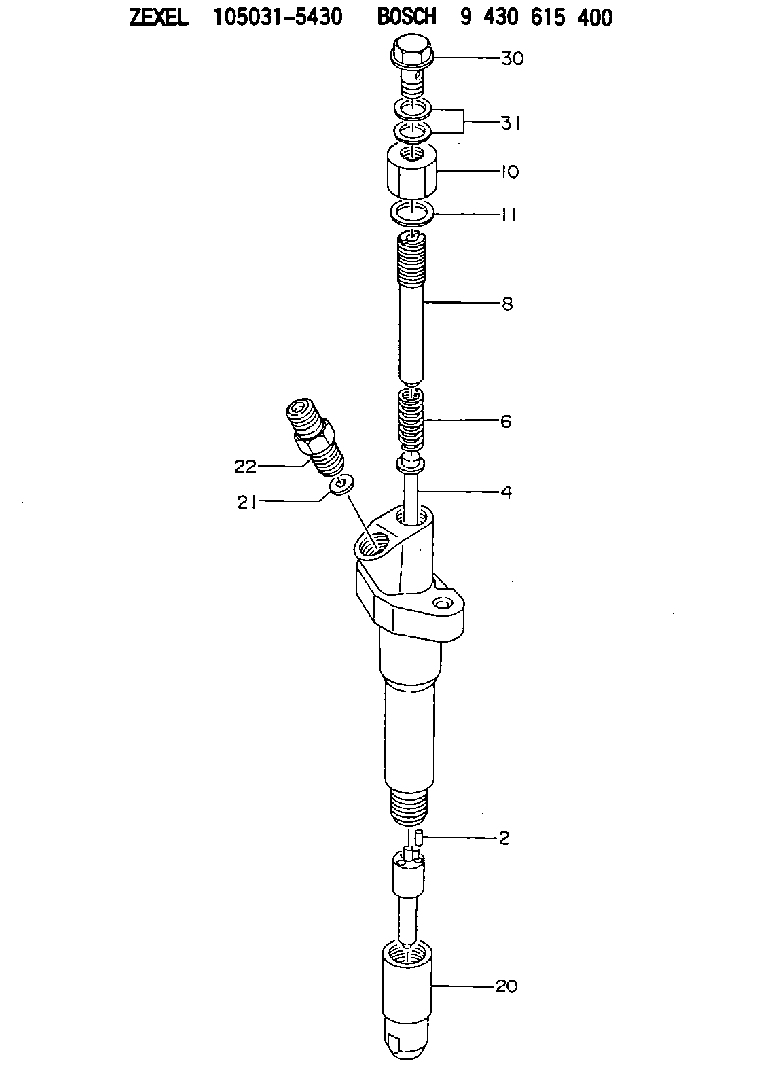

Scheme ###:

2.	[2]	150508-3300	BEARING PIN
4.	[1]	150550-3200	STOP PIN
6.	[1]	150516-9100	COMPRESSION SPRING
8.	[1]	150565-1500	THREADED PIN
10.	[1]	150567-5600	CAP NUT
11.	[1]	029331-4120	GASKET D18&14.2T1.5
20.	[1]	150650-2700	NOZZLE-RETAINING NUT
21.	[1]	029300-5070	GASKET D12&5T1
22.	[1]	150645-0020	INLET UNION
30.	[1]	150613-1501	EYE BOLT
31.	[2]	139510-0300	GASKET

Include in #1:

106871-8272 as NOZZLE-HOLDER

106871-8750

Cross reference number

Zexel num

Bosch num

Firm num

Name

105031-5430

9 430 615 400

236201530A HINO

NOZZLE-HOLDER
* K 53LZ NH NH

Information:

Illustration 1 g02004767
(1) Ring for Identification (2) 228-7094 O-Ring Seal (3) 345-3399 Injector Sleeve An oversized injector sleeve will be introduced in order to improve the life cycle of the cylinder heads. The new sleeve has an oversized outside diameter, which does not allow the injector sleeve to fit the standard bore. The oversized sleeve will have an added ring that is located around the middle of the insert for identification. Also, the new sleeve will require a larger bottom O-ring. Refer to Illustration 1.
Illustration 2 g02004793
(4) Identification markThe remanufactured cylinder head has an identification mark that is located on the top of the cylinder head. This mark indicates the cylinders that have the oversized inserts.
