105031-5390 ZEXEL 9 430 615 853 BOSCH NOZZLE-HOLDER 9430615853 1050315390 m1464002200z

Information nozzle-holder

BOSCH 9 430 615 853 9430615853

ZEXEL 105031-5390 1050315390

DAIHATSU M1464002200Z m1464002200z

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105031-5390 zexel genuine, new aftermarket engine parts with delivery

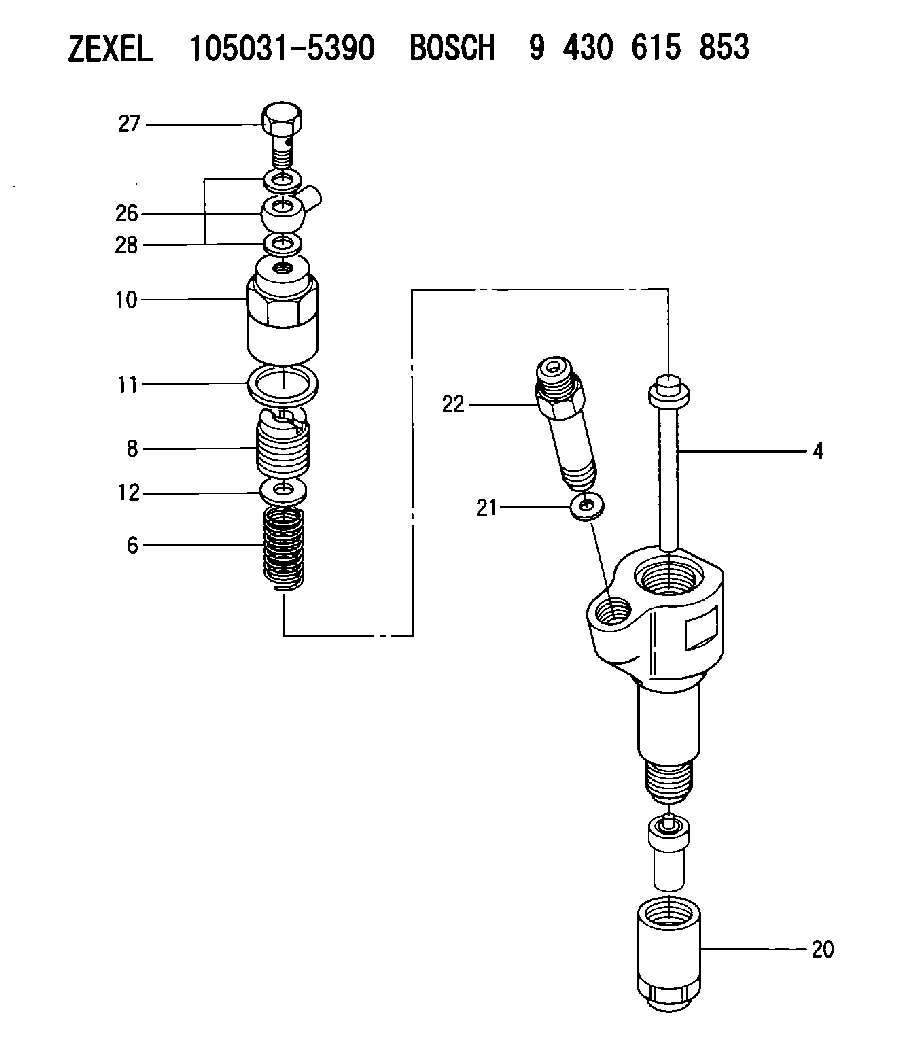

Scheme ###:

4.	[1]	150550-4520	STOP PIN
6.	[1]	150562-3000	COMPRESSION SPRING
8.	[1]	150565-1900	THREADED PIN
10.	[1]	150927-0100	CAP NUT
11.	[1]	029332-2030	GASKET D25.5&22T1
12.	[1]	029300-8270	PLAIN WASHER
20.	[1]	150650-0200	NOZZLE-RETAINING NUT
21.	[1]	029300-5070	GASKET D12&5T1
22.	[1]	150645-1120	INLET UNION
26.	[1]	029701-0020	INLET UNION
27.	[1]	029731-0110	EYE BOLT
28.	[2]	026510-1450	GASKET

Include in #1:

106672-4952 as NOZZLE-HOLDER

106672-9051

106684-4000

Cross reference number

Zexel num

Bosch num

Firm num

Name

105031-5390

9 430 615 853

M1464002200Z DAIHATSU

NOZZLE-HOLDER
K 53LZ NOZZLE HOLDER NH NH

Information:

Install the new 291-5165 Bellows (10) to tube assembly (2) by placing the end of the bellows with the liner on the flange of the tube assembly. Secure bellows (10) to tube assembly (2) by using one new 202-1838 V Band Clamp (11). Refer to Illustration 7.
Illustration 8 g01794917
(12) 313-9428 Tube As
Install the flanged end of the new 313-9428 Tube As (12) to bellows (10) by using one new V-band clamp (11). Refer to Illustration 8.Note: Make sure that the tube assembly is temporarily supported so that the tube assembly axis lines up with the axis of the bellows before securing the tube assembly to the bellows. That way the weight of the tube is on the support and not on the bellows.
Illustration 9 g01794933
(13) 294-9631 Clamp As (14) 310-7675 Bracket (15) 5P-1076 Hard Washer (16) 8T-4183 Bolt
Install the bottom half of the new 294-9631 Clamp As (13) to the two new 310-7675 Brackets (14) by using two new 5P-1076
