Information nozzle-holder
BOSCH
9 430 615 480
9430615480
ZEXEL
105031-5110
1050315110
DAIHATSU
C133770010Z
c133770010z
Rating:

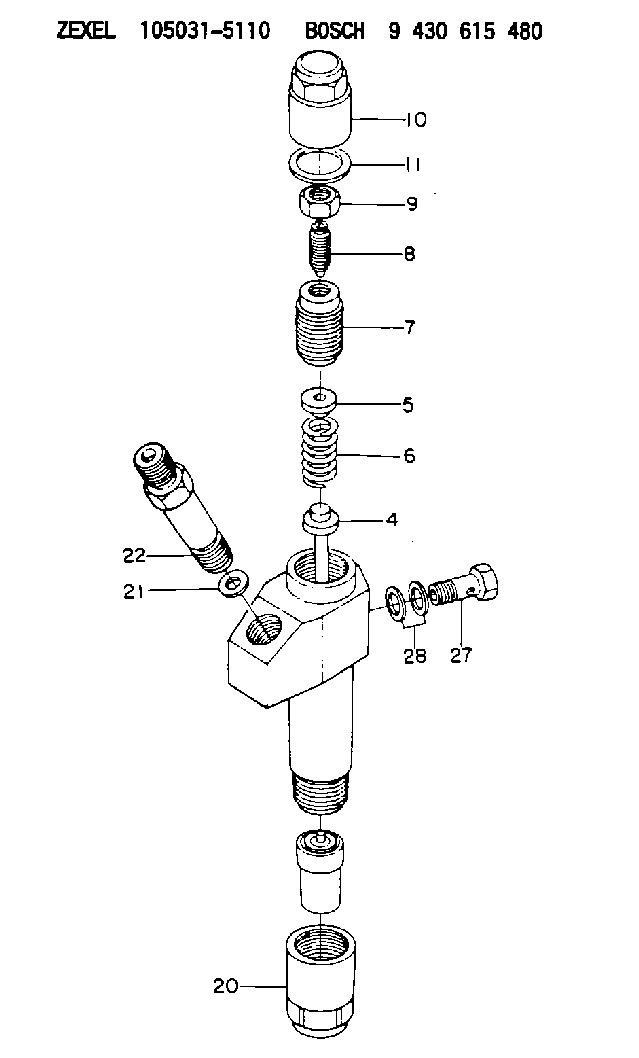

Scheme ###:
| 4. | [1] | 150510-1220 | STOP PIN |
| 5. | [1] | 150515-0300 | SLOTTED WASHER |
| 6. | [1] | 150516-3100 | COMPRESSION SPRING |
| 7. | [1] | 150517-1400 | CAPSULE |
| 8. | [1] | 150518-1500 | THREADED PIN |
| 9. | [1] | 150519-4500 | UNION NUT |
| 10. | [1] | 150520-1100 | CAP NUT |
| 11. | [1] | 029332-2030 | GASKET D25.5&22T1 |
| 20. | [1] | 150637-4800 | NOZZLE-RETAINING NUT |
| 21. | [1] | 029300-4030 | GASKET |
| 22. | [1] | 150643-8020 | INLET UNION |
| 27. | [1] | 029731-0110 | EYE BOLT |
| 28. | [2] | 026510-1450 | GASKET |
Include in #2:
104032-6020
as NOZZLE-HOLDER
Cross reference number
Zexel num
Bosch num
Firm num
Name
105031-5110
C133770010Z DAIHATSU
NOZZLE-HOLDER
* K 53LZ NOZZLE HOLDER NH NH
* K 53LZ NOZZLE HOLDER NH NH
