Information nozzle-holder assembly
BOSCH
9 430 615 428
9430615428
ZEXEL
105031-4840
1050314840
Rating:

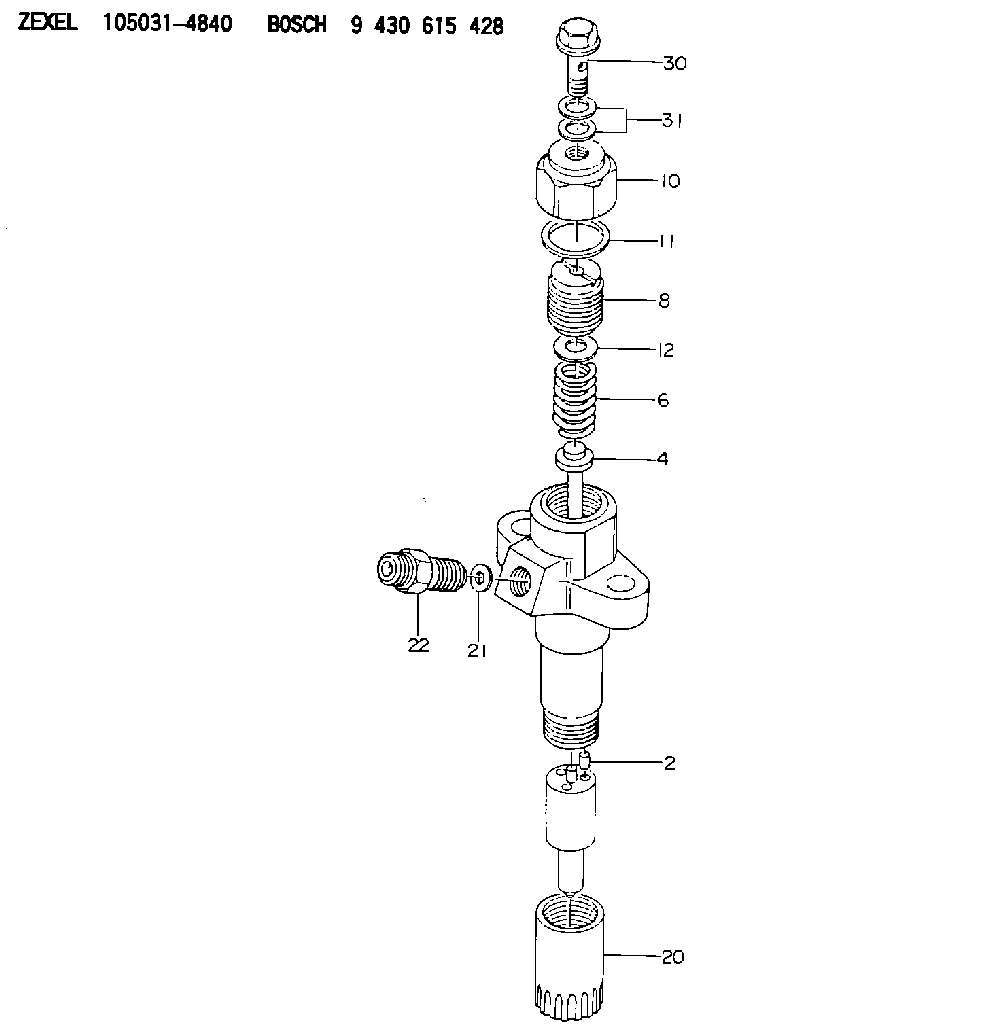

Scheme ###:
| 2. | [2] | 150508-3300 | BEARING PIN |
| 4. | [1] | 150510-5220 | STOP PIN |
| 6. | [1] | 150516-3100 | COMPRESSION SPRING |
| 8. | [1] | 150565-1900 | THREADED PIN |
| 10. | [1] | 150567-6300 | CAP NUT |
| 11. | [1] | 029332-2030 | GASKET D25.5&22T1 |
| 12. | [1] | 029300-8270 | PLAIN WASHER |
| 20. | [1] | 150650-5300 | NOZZLE-RETAINING NUT |
| 21. | [1] | 029300-3100 | GASKET |
| 22. | [1] | 150644-8800 | INLET UNION |
| 30. | [1] | 139808-0000 | EYE BOLT |
| 31. | [2] | 029340-8120 | GASKET |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105031-4840
9 430 615 428
NOZZLE-HOLDER ASSEMBLY
K
K
Information:
Illustration 1 g06221137
(1) Back flow connector
Illustration 2 g06221138
(2) 423-3253 Connector (Old back flow connector with check valve)
(3) 516-2663 Connector As (PCA connector without check valve)The new and the former connector assembly part numbers are listed in the Table 1.
Table 1
Qty New Part Number Description Former Part Number
1 516-2663 Connector As 423-3253
Illustration 3 g06224488
Bosch Diesel Exhaust Fluid Pump with the part number stamping
The Bosch part number is stamped on the pump, refer to Illustration 3. The Cat® part number equivalent to the Bosch part number for the pump is given in Table 2.
Table 2
Qty Cat® Part Number Description Bosch Part Number
1 485-9753 Diesel Exhaust Fluid Pump Gp (24V) 0 444042168
1 398-4746 Diesel Exhaust Fluid Pump Gp (14 V) 0 444042166 Note: The change is effective on the PETU and DEF pump serial numbers listed in Table 3.
Table 3
PETU Serial No: PET034589M
PUMP Serial No: 0171013500
