Information nozzle-holder
BOSCH
9 430 615 759
9430615759
ZEXEL
105031-4780
1050314780
ISUZU
1153300640
1153300640
Rating:

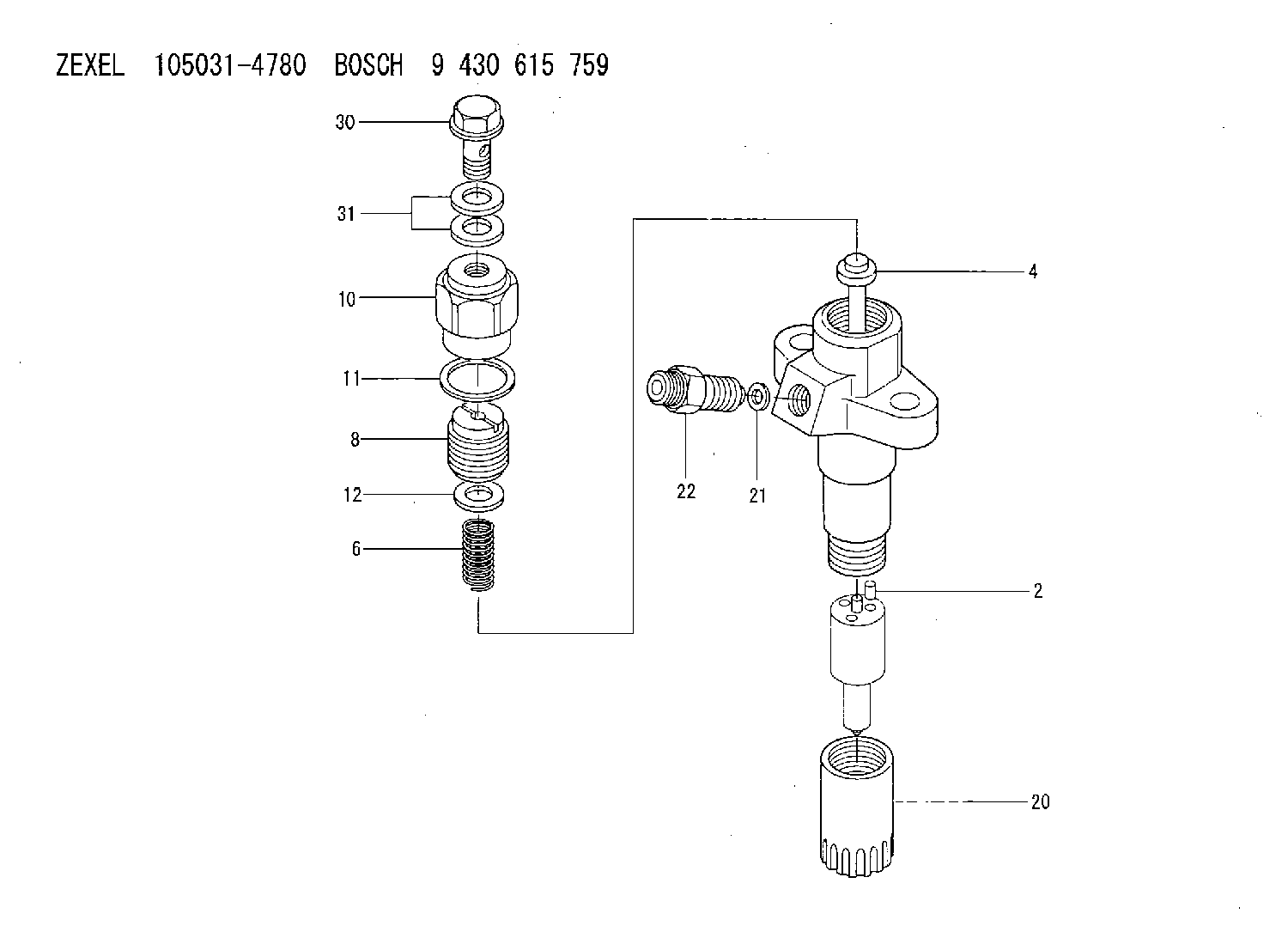

Scheme ###:
| 2. | [2] | 150508-3300 | BEARING PIN |
| 4. | [1] | 150510-5220 | STOP PIN |
| 6. | [1] | 150516-3100 | COMPRESSION SPRING |
| 8. | [1] | 150565-1900 | THREADED PIN |
| 10. | [1] | 150567-8100 | CAP NUT |
| 11. | [1] | 029332-2030 | GASKET D25.5&22T1 |
| 12. | [1] | 029300-8270 | PLAIN WASHER |
| 20. | [1] | 150650-5300 | NOZZLE-RETAINING NUT |
| 21. | [1] | 150602-1700 | GASKET |
| 22. | [1] | 150643-3000 | INLET UNION |
| 30. | [1] | 139808-0000 | EYE BOLT |
| 31. | [2] | 139508-0000 | GASKET D13.2&8.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The engines that are affected by this problem are 3056 and 3054. Incorrect troubleshooting may lead to a diagnosis that is incorrect. A diagnosis that is incorrect may lead to unnecessary replacement of the fuel injection pump.The fuel injection pumps on 3056 and 3054 may incorrectly lead to an assumption of a problem.Solution
Before the fuel injection pump is replaced, refer to illustration 1, 2 and 3 to troubleshoot the fuel injection pump. The illustrations should help to identify other possible problems with the fuel injection pump.
Illustration 1 g06064810
Illustration 2 g06064842
Illustration 3 g06064869
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The engines that are affected by this problem are 3056 and 3054. Incorrect troubleshooting may lead to a diagnosis that is incorrect. A diagnosis that is incorrect may lead to unnecessary replacement of the fuel injection pump.The fuel injection pumps on 3056 and 3054 may incorrectly lead to an assumption of a problem.Solution
Before the fuel injection pump is replaced, refer to illustration 1, 2 and 3 to troubleshoot the fuel injection pump. The illustrations should help to identify other possible problems with the fuel injection pump.
Illustration 1 g06064810
Illustration 2 g06064842
Illustration 3 g06064869
